Basic Info.
Model NO.
DN25
Structure
Floating Ball Valve
Type
Floating Ball Valve
Function
Blow-Down Valve
Temperature
Normal Temperature
Application
Industrial Usage, Water Industrial Usage
Valve Body Material
SS304/SS316
Valve Size
DN15-DN100
Connection
Thread
Transport Package
Carton Box+Foam+Wooden Case
Specification
JAT032-JAT400
Trademark
JIMAI
Origin
China
HS Code
8481804090
Production Capacity
500000piece/Year
Product Description

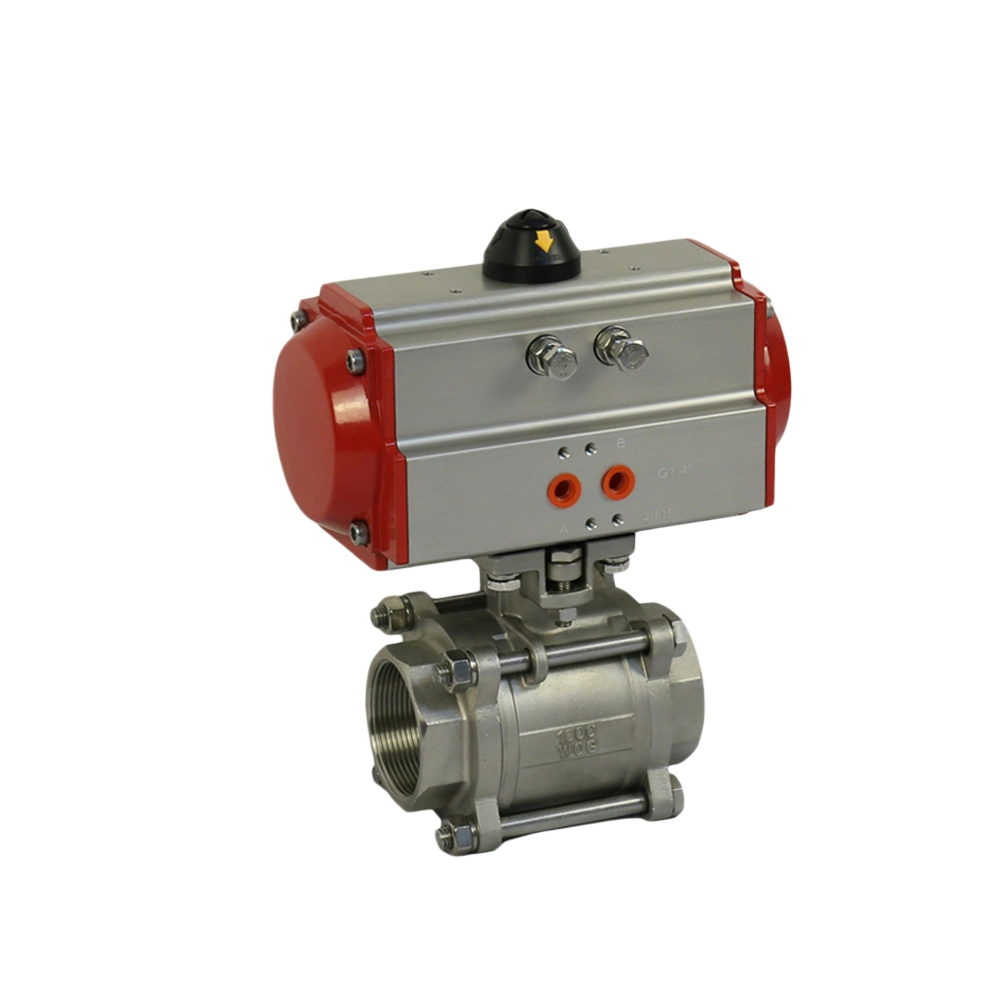

Zhejiang Jimai Auto-Tech Co,.Ltd provides hard oxidation quarter-turn pneumatic actuator worldwide. The actuator surface and internal body is treated extremely serious and then contribute to the smooth and compact structure. JIMAI adopts all serious inspected raw material to ensure the high quality. The quarter-turn pneumatic actuator could be used in any 90 degree rotating valves, like ball valves, butterfly valves and others. JIMAI quarter-turn pneumatic actuator has two convertible working mode: double acting and single acting that can be easily converted by installing or removing the springs. JIMAI people contribute their best enthusiasm to provide the best service to you. We are always here to support you. Product Features:
1.Simple structure, exquisite appearance
2.Highly responsive to the working instruction
3.Long service of life, can be used up to 1million times
4.Hard anodized cylinder, wear resistance
5.Symmetrical rack and pinion structure to make it run smoothly and safely.
6.Adopting Corrosion-resistant stainless steel screws
7.Excellent Leak-proof design to help actuator can be applied in many fields.
8.Using high quality bearings produced in-house, has good sealing performance and low friction coefficient.
9.Comply with the international standard ISO5211, DIN3337, VDE3845, and NAMUR standard
| Model | JAT series |
| Action | Smooth and reliable |
| Feature | Safe and explosion-proof |
| Accessories | Filter, Air Pressure Regulator,Limited Switch Box |
| Rotation range | ±5°for the rotation at 0°and 90° |
| Application field | Oil refining, chemical industry |
| Operating Media | Air, Water,Gas, Oil, Steam |
| Optional accessories | Solenoid valve, limited switch, electric position, air regulator |
| Rotating shaft | Nickel plated |
| Bearings | Engineering plastics |
| O-ring | NBR |
| Ambient temperature | standard -20ºC~+80ºC |
| Low temperature type -40ºC~+80ºC | |
| High temperature type -20ºC~+160ºC |
Output Torque of Double-acting Actuator(Unit:Nm)
MODEL | Input Air Supply Pressure(Unit : Bar) | ||||||
2 | 3 | 4 | 5 | 6 | 7 | 8 | |
JAT032DA | 3.1 | 4.7 | 6.2 | 7.8 | 9.4 | 11 | 12.5 |
JAT052DA | 8.5 | 12.7 | 17 | 21.2 | 25.5 | 29.7 | 34 |
JAT063DA | 15 | 22.5 | 30 | 37.5 | 44.9 | 52.4 | 59.7 |
JAT075DA | 21 | 31.8 | 42.4 | 53 | 63.6 | 74.2 | 84.8 |
JAT083DA | 32.5 | 48.7 | 65 | 81.2 | 97.4 | 113.7 | 130 |
JAT092DA | 46.5 | 69.8 | 93 | 116.3 | 140 | 162.9 | 186 |
JAT105DA | 69.3 | 104 | 138.5 | 173.2 | 207.8 | 242.5 | 277 |
JAT125DA | 108 | 162 | 216 | 270 | 324 | 378 | 432 |
JAT140DA | 184.7 | 277 | 369.5 | 461.8 | 554 | 646.5 | 739 |
JAT160DA | 281.5 | 422 | 563 | 704 | 844 | 985 | 1126 |
JAT190DA | 453 | 680 | 907 | 1135 | 1361 | 1587 | 1814 |
JAT210DA | 554 | 831 | 1108 | 1384 | 1662 | 1939 | 2216 |
JAT240DA | 814 | 1221 | 1628 | 2035 | 2442 | 2849 | 3256 |
JAT270DA | 1238 | 1854 | 2472 | 3090 | 3708 | 4326 | 4944 |
