Basic Info.
Model NO.
T20-B2-B
Type
Fixed Ball Valve
Function
Drive
Temperature
Normal Temperature
Application

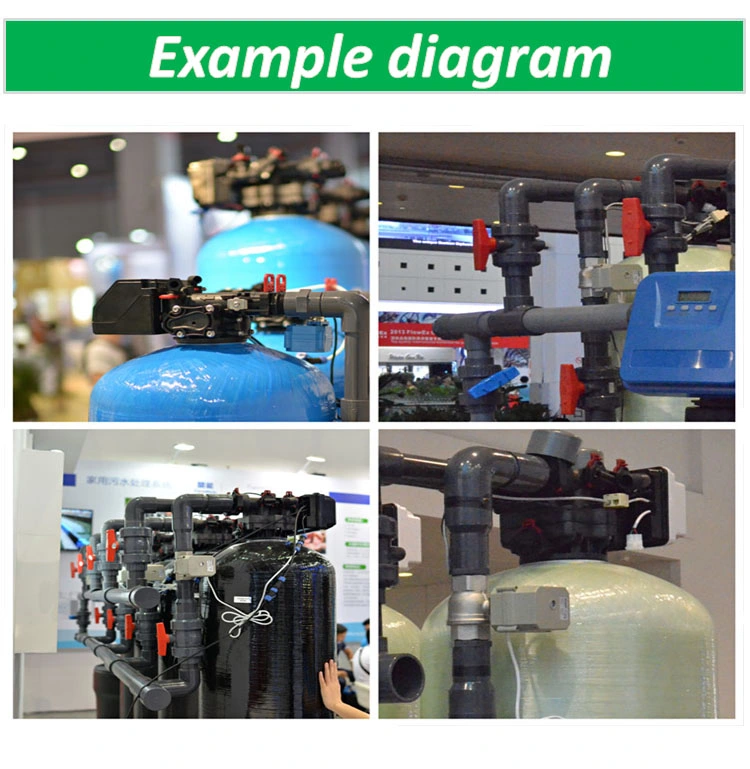

Industrial Usage, Water Industrial Usage, Household Usage
Size
1/4′′-1′′
Operating Time
5s/7s
Operating Life
1000000 Circles
Enlossure
IP67
Transport Package
Carton
Specification
1/2′′-1 1 /4′′
Trademark
Tonhe
Origin
China
HS Code
848180409
Production Capacity
500000/PCS
Product Description
2 way mini motorized ball valve 1/2''-1-1/4'''', different wirings, 2N.M/4N.M actuator toruque ,DC5V/DC12V/DC24V/AC100-240V, IP67, 1.0Mpa,CE, NSF61-G
Design feature
1. Metal gear design, high accuracy output torque, especially for multi-channel scaling system.
2. Small size, compact structure.
3. A variety of control methods, either to accept remote valve position control signal, but also the feedback signal in place for computer intelligence unit testing.
4. Good sealing performance
Detail techinical data:
Product specifications: 1/4''-1 1/4''
Medium pressure: ≥ 1.5MPa
The pressure of valve broken: ≥ 3.5MPa
Circulation medium: Water, air
Rated voltage: DC5V/DC12V
Working current: ≤ 50MA
Open/close time: ≤ 5S
Extra long time: 50000 times

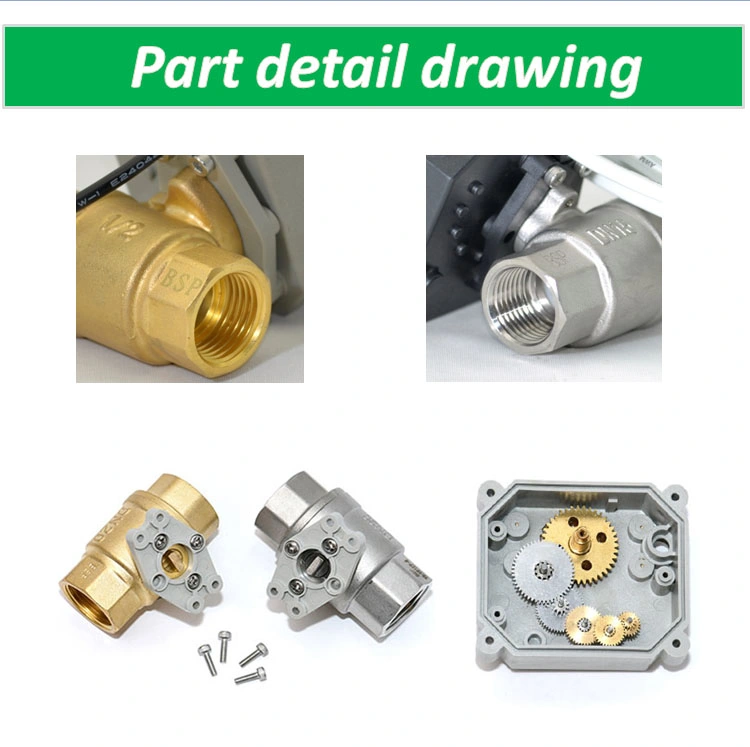

Body material: Brass /copper
Actuator material: Engineering Plastics
Airtight Pressure: 0.20Pa, pressure maintaining 15s, Spillage≤ 0.122ml/s
Actuator rotation: 90°
Environment temperature: -20º C~90º C
Liquid temperature: 2º C~90º C
Manual override: Yes
wire Control: CR201,CR202CR301CR302C303CR401
Design feature
1. Metal gear design, high accuracy output torque, especially for multi-channel scaling system.
2. Small size, compact structure.
3. A variety of control methods, either to accept remote valve position control signal, but also the feedback signal in place for computer intelligence unit testing.
4. Good sealing performance
Detail techinical data:
Product specifications: 1/4''-1 1/4''
Medium pressure: ≥ 1.5MPa
The pressure of valve broken: ≥ 3.5MPa
Circulation medium: Water, air
Rated voltage: DC5V/DC12V
Working current: ≤ 50MA
Open/close time: ≤ 5S
Extra long time: 50000 times
Body material: Brass /copper
Actuator material: Engineering Plastics
Airtight Pressure: 0.20Pa, pressure maintaining 15s, Spillage≤ 0.122ml/s
Actuator rotation: 90°
Environment temperature: -20º C~90º C
Liquid temperature: 2º C~90º C
Manual override: Yes
wire Control: CR201,CR202CR301CR302C303CR401
