Basic Info.
Model NO.
YMD-601
Voltage
12V-48V
Standard Stroke
50mm
Max Thrust
1000N
Item Name
Linear Actuator
Stroke
Customized (50-600mm)
Duty Cycle
20%
IP Protect Class
IP65/IP66
Max. Load
1200n
Limit Switches
Built-in
Feedback
Hall Sensors, Pot
Screw Type
Lead Screw
Motor Type
Brushed DC Motor
Self-Locking
Yes
Warranty
12 Monthes
Transport Package
Carton Box / Pallet
Trademark
YMD
Origin
China
HS Code
85013100
Product Description

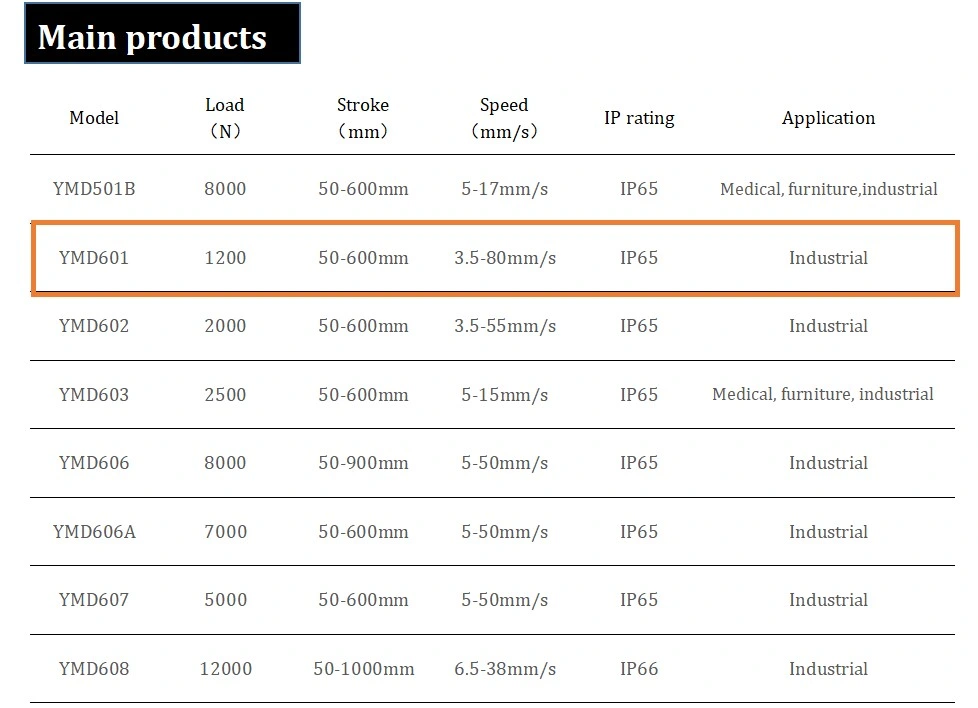

Other linear actuators FYR:
| Model | YMD-601 | YMD-602 | YMD-603 |
| Max Load | 264 pounds | 440 pounds | 551 pounds |
| No-load Travel Speed | 0.12" per sec- 3.2" per sec | 0.2" per sec- 2" per sec | 0.2" per sec- 0.6" per sec |
| Limit Switch | ✓ | ✓ | ✓ |
| Voltage | 12V/24V/36V/48V | 12V/24V/36V/48V | 12V/24V/36V/48V |
| Duty Cycle | 20% | 20% | 20% |
| Mounting Brackets | ✓ | ✓ | ✓ |
| Protection Class | IP65 Rated | IP65Rated | IP65 Rated |
| Voltage | 12V/24V/36V/48V | 12V/24V/36V/48V | 12V/24V/36V/48V |
| Noise | dB<65 | dB<65 | dB<50 |
Our linear actuator is tested by the following test machines:
How to install the linear actuator:
1.Prepare to connect the two wires of the actuator to a 12 volt battery.
2.Red wire to the positive terminal and Black wire to negative terminal will make the actuator extend. To make it retract, just reverse the terminal connections.
3.To simplify the last step, you can prepare a reverse polarity relay or switch (not included) for the actuator. When you want the actuator to extend and retract, just press the switch.
4.Your linear actuator will hold its position when the power is off. It will automatically stop when reaches the end.
5.The linear actuator has pre-installed inner limit switch, it cannot be adjustable.
How to protect your linear actuator:
1.Please use the right DC power adapter.2.The actual load does not exceed the rated load.
3.All the linear actuators have duty cycle, they are unable to work all the time without stop.
