Basic Info.
Model NO.
HZ-H39
Acting Type
Spring Return
Material
Stainless Steel
Customized
Customized
Structure
Rack and Pinion
Transport Package
Box
Specification
16XC/B11
Trademark
HUIZHENG
Origin
China
HS Code
8481804090
Production Capacity
100000PCS/Year
Product Description
| PRODUCT NAME | Pneumatic diaphragm actuator. |
| Suitable Temp. | -10ºC-60ºC |
| Working Temp. | ≤0.35MPa |
| Working Medium | Cleaned compressed air |
| Working Manner | Air to close /Air to open |
Brief introduction to pneumatic diaphragm actuator
SAZR type multi spring pneumatic actuator is a new type of pneumatic actuator, which is designed and developed for the new type of pneumatic actuator, which is designed and developed for the old. The shape of the diaphragm is more complex, the use of special pressing process, so that the blasting strength of more than 22kg/cm2. The process of spring manufacturing is improved by multi spring, which is beneficial to the matching of different spring range. The zero function can improve the linear accuracy. Surface treatment using epoxy electrostatic powder spray, with high fastness and corrosion resistance. Has the advantages of uniform, good stability, small size, light weight and so on. Can be equipped with pneumatic, electric - gas valve positioner and air filter and other accessories. Also, it can be equipped with XS type XS light side mounted, top mounted manual operating mechanism.
Pneumatic diaphragm type description
Performance index

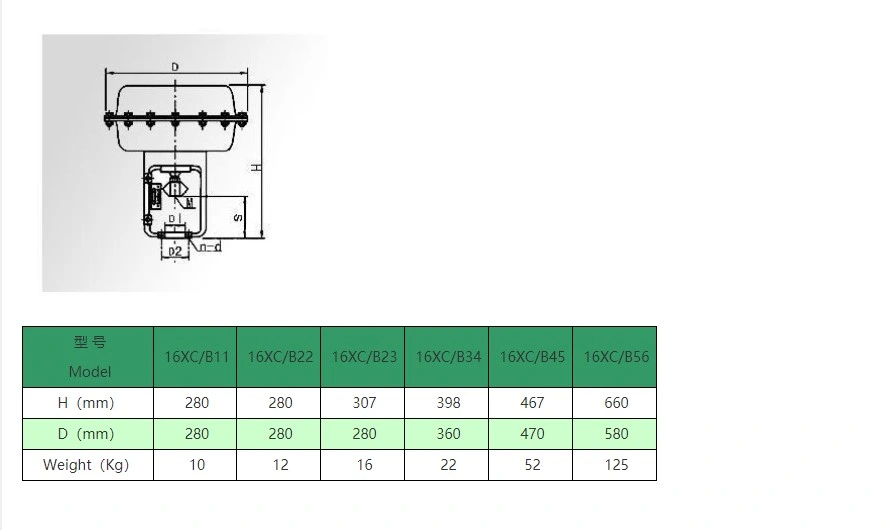

Main parameters
Main parts material
Main parts material
