Product Description
B-Series Pneumatic Actuator
- Extruded aluminum (ASTM 6005) cylinder block, with fine grinding and finishing of the inner surface, advanced anti-corrosion technology applied both internally and externally. The cylinder has low friction coefficient, long service life, and strong corrosion resistance.
- Double piston rack and pinion design, compact structure, symmetrical installation position, easy to change output shaft rotation, long service life, and rapid action.
- The back of the piston rack is equipped with composite bearings and guide rings, which provide accurate movement, small friction coefficient, and extended service life.
- Combined preloaded plated spring with long service life.
- High precision gear and rack, small meshing clearance, high accuracy, and large output power.
- Stainless steel fasteners, safe and beautiful, strong corrosion resistance.
- Dimensions according to international specifications:
Output shaft groove and screw hole; The size of the top mounting hole meets the NAMUR standard;
The size of the air source interface meets the NAMUR standard;
The size of the bottom mounting hole complies with ISO5211 and DIN3337 standards,
Convenient to install accessories such as solenoid valves and limit switches.
Cylinder
Ø 32, Ø 45, Ø 52, Ø 63, Ø 75, Ø 83, Ø 92, Ø 105, Ø 125, Ø 140,Ø 160, Ø 190, Ø 210, Ø 240, Ø 270, Ø 300, Ø 350, Ø 400
Output Torque
| Action Type | Minimum Torque | Maximum Torque |
| Double Acting(DA) | 3Nm | 13024Nm |
| Single Acting(SR) | 3Nm | 4199Nm |
Product C atalog

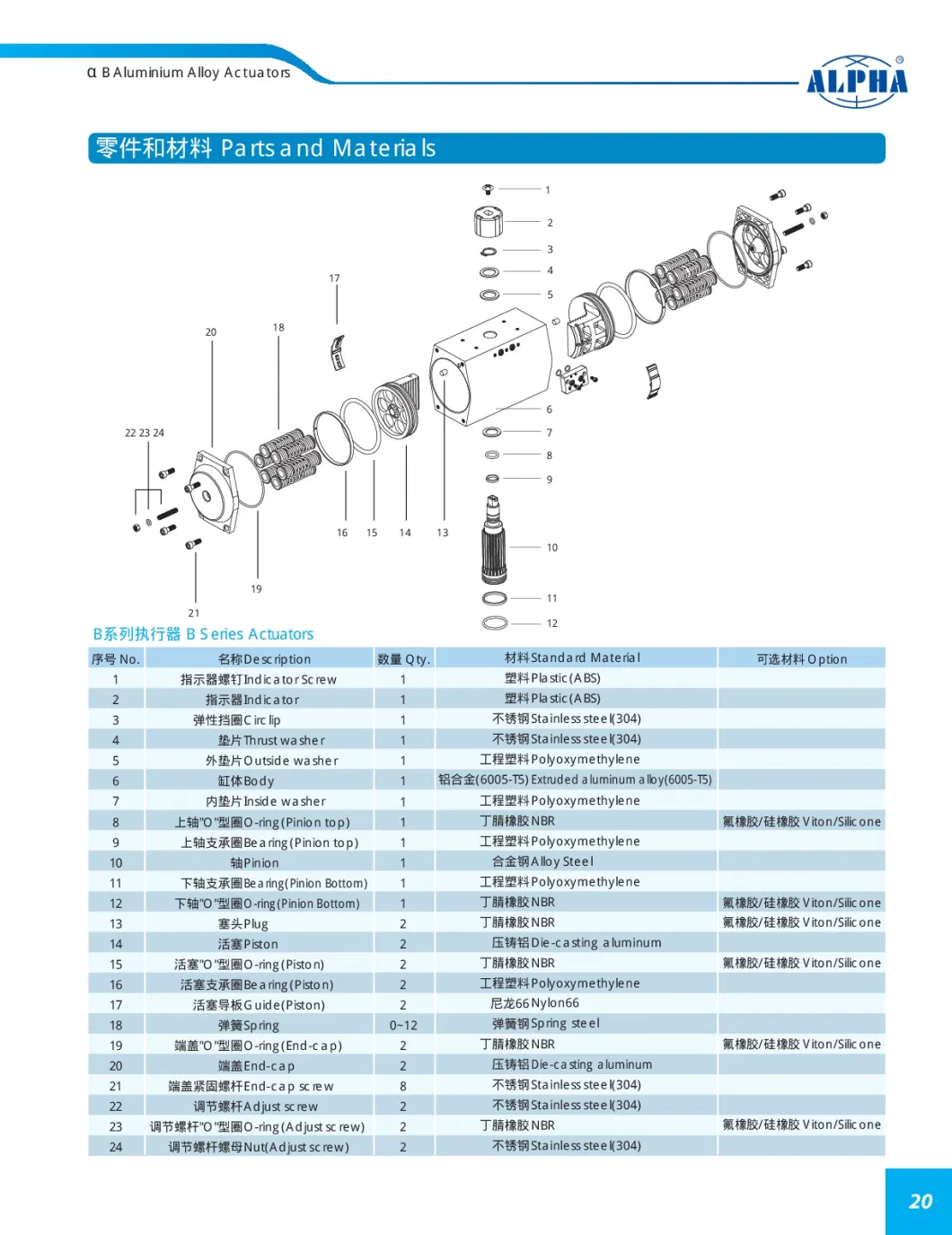

(1)Material

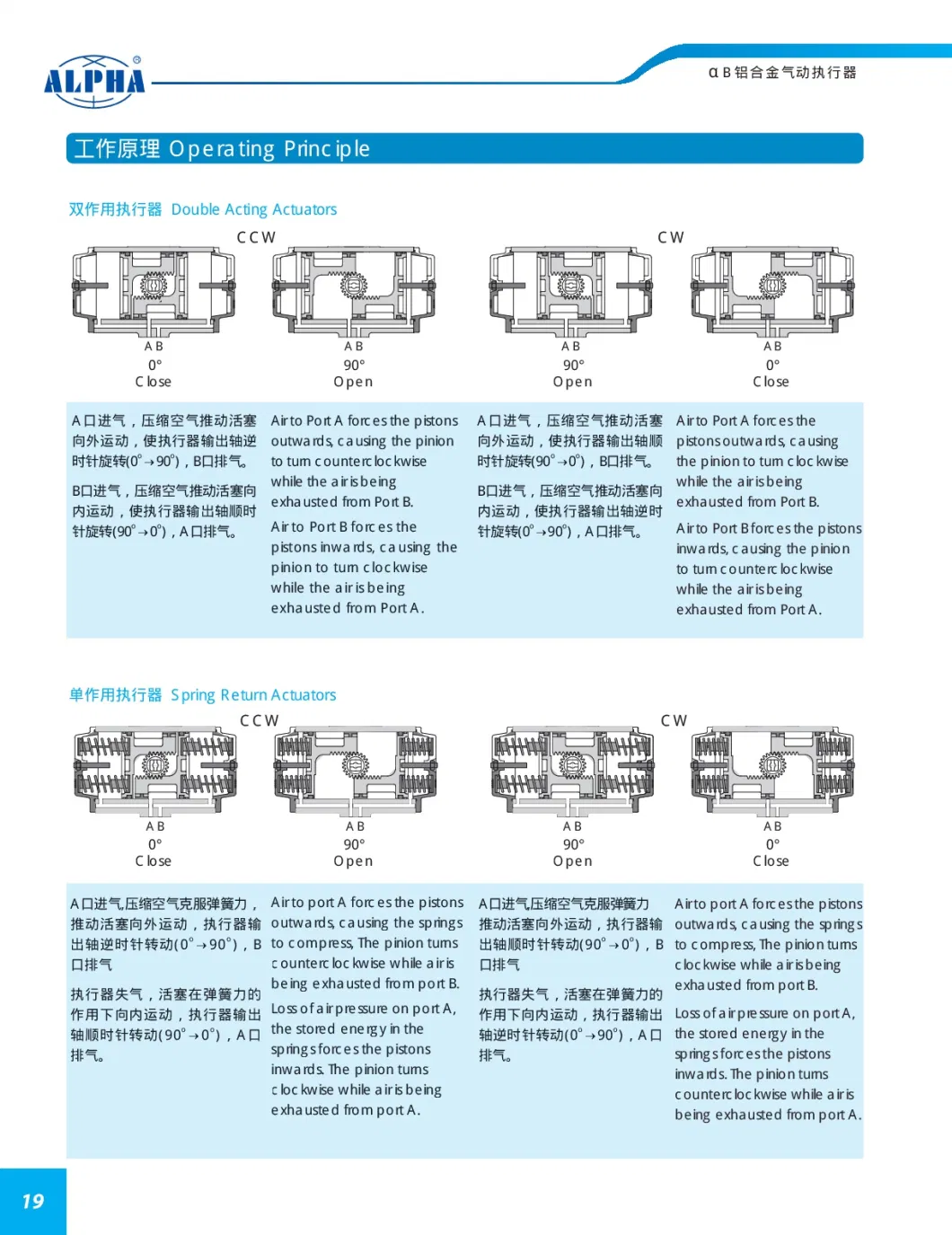

(2)Operating Principle
(3)Double Acting Torque
(4)Dimension
(5) Specifications
1. CE and ISO certificate
2. Strictly quality control
3. Good quality at a favorable price
4. Excellent After-service
5. Fast delivery time

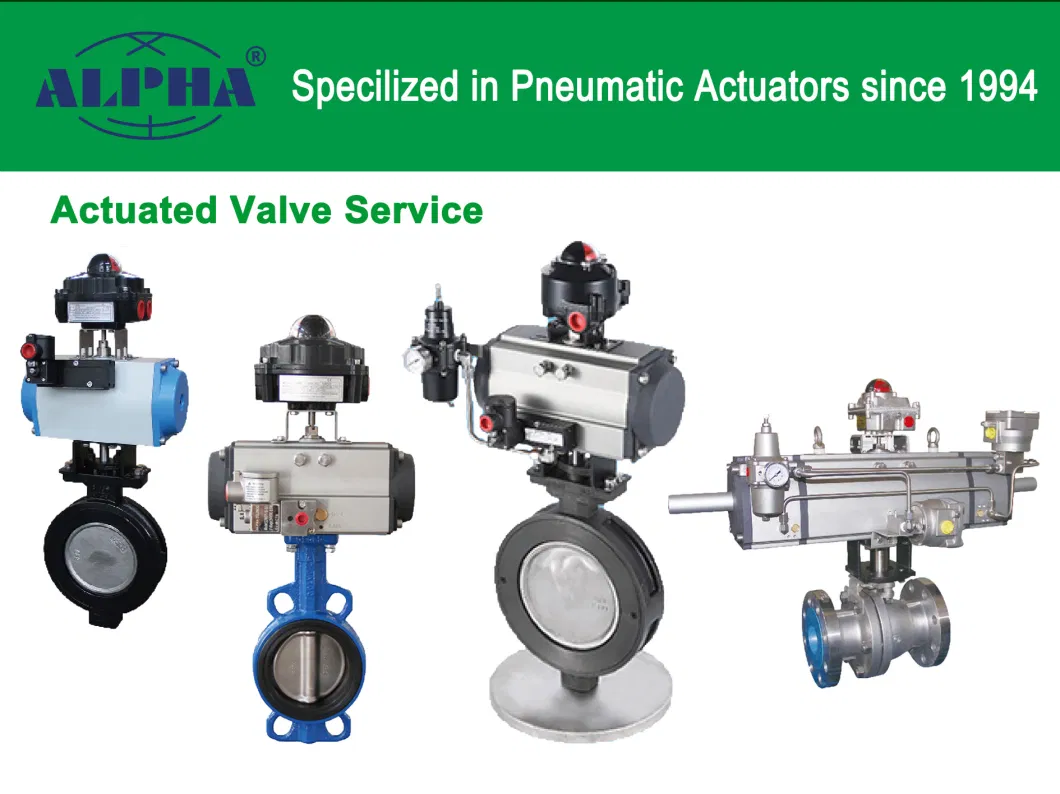

| Material | Extruded Aluminum alloy |
| Rotary Angle | 0~90 degree ±5° |
| Structure | Rack and pinion rotary actuator |
| Working Pressure | 2~8bar |
| Surface Treatment | Hard anodizing |
| Working Temperature | Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F) High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F) Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F) |
| Connection | NAMUR, ISO5211 and DIN3337 |
| Application | ball valve, butterfly valve, and rotary machine |
| Cup Color | grey, black, sky blue, dark blue, red, orange |
