Basic Info.
Model NO.
V4055D1043
Condition
New
Certification
RoHS, UR, ISO, CE, CCC
Model
V4055D1043
Name
Damper Actuators
Power Supply
110/120V, 50/60Hz
Opening Time
13 Sec
Maximum Closing Time
1 Second When De-Energized.
AMPS Opening
1.57
Color
Silver
Ambient Operating Temperature Ratings
-10°f to +158°f (-23°c to +70°c)
Use
Gas Burner Accessories
After Warranty Service
Video Technical Support
Transport Package
Carton Box Packing
Specification
20.5X20X25 cm
Trademark
Honeywell
Origin
America
HS Code
8412291000
Production Capacity
1000
Product Description

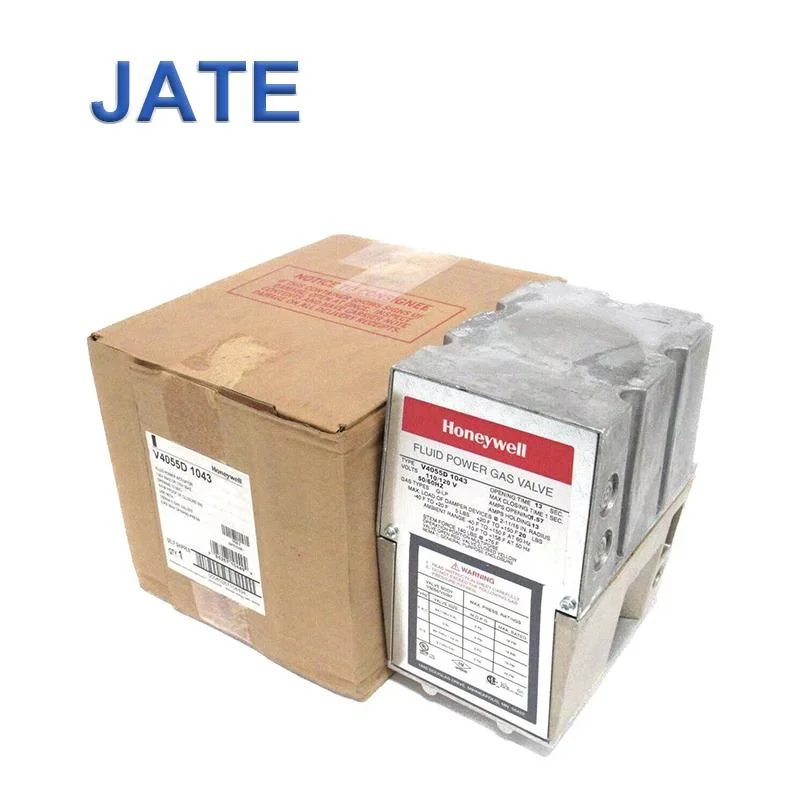

America OR Honeywell V4055D1043 Servo Motor On-Off Fluid Power Gas Valve Damper Actuator Controls The Gas Supply To Commercial
PRODUCT SPECIFICATIONS
APPLICATION
The V4055 Gas Valve Actuator, in combination with a V5034,VE5000a, V5055 or V5097 Gas Valve, controls the gas supply to commercial and industrial burners.
Features:
1.The V4055 Actuator, when used with the V5034, VE5000a, V5097 or V5055 Valve, is rated for final safety shutoff service.
2.The V4055 Actuator can be used with the characterized guide model of the V5055 or V5097 Gas Valve to enhance lightoff smoothness.
2.The V4055 Actuator can be used with the characterized guide model of the V5055 or V5097 Gas Valve to enhance lightoff smoothness.
3. The standard model has an opening time of 26 seconds at 60 Hz or 32 seconds at 50 Hz. A fast-opening model is available with timings of 13 seconds at 60 Hz or 16 seconds at 50 Hz.
4. Maximum closing time is one second, which meets code, standard and insurer requirements.
5.Models available with damper shaft, with or without spring return; shaft extends out both
sides and rides in Teflon-like Delrin bushings; used with standard 7616BR Damper Crank Arm.
sides and rides in Teflon-like Delrin bushings; used with standard 7616BR Damper Crank Arm.
6. Red OPEN indicator attached to actuator stem shows when valve is even slightly open; yellow SHUT indicator on valve stem shows only when gas valve is fully closed.
7.Models available with adjustable max flow limit switch.
8.Ambient temperature rating is -40°F to +150°F (-40°C to +66°C)
for 60 Hz models and -10°F to +158°F (-23°C to +70°C) for 50 Hz and 50/60 Hz models.
for 60 Hz models and -10°F to +158°F (-23°C to +70°C) for 50 Hz and 50/60 Hz models.
9.Valve and actuator combinations can be mounted in any position, with the exception of the 220 to 240 Vac, 50/60 Hz models, which are mounted vertically.
10.Models available with factory-installed single pole double throw (spdt) field-adjustable Auxiliary Switch. Field-addable Auxiliary Switch kits are also available.
11.Standard enclosure meets NEMA 1 (IP30) requirements; models available with NEMA 4 weatherproof enclosure.
12.V4055D and high pressure V4055E with Proof-of-Closure Switch and V5055/V5097C or E with valve seal overtravel interlock (double seal) to meet specific code, standard and insurer requirements.
Accessories:
133533A Short Stem Adapter for mounting actuator on V5034 Valve. 133534A Long Stem Adapter for mounting actuator on V5034 Valve. 133568 Auxiliary Switch Bag Assembly (not for models with maximum flow limit switch). 133569 Valve-Closed Indication Switch Bag Assembly (not for use with V5034 Valve body). 7616BR Damper Crank Arm (damper arm and clip). Q5055A1001 Adapter Assembly (adapts ITT General V710 Gas Valve to accept Honeywell gas valve actuators. Replaces ITT General AH2 Gas Valve actuators). Available Models: V4055 with NEMA 4 enclosure (weatherproof).
PRODUCT SPECIFICATIONS
| item | value |
| Condition | New |
| Warranty | 1.5 years |
| Applicable Industries | Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company |
| Weight (KG) | 15 |
| Showroom Location | None |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Place of Origin | USA |
| Brand Name | Honeywell |
| Type | Gas Burner |
| Product name | America OR Honeywell V4055D1043 Servo Motor On-Off Fluid Power Gas Valve Damper Actuator Controls The Gas Supply To Commercial |
| Model | V4055D1043 |
| Brand | Honeywell |
| Color | Sliver |
| MAX CLOSING TIME | 1 SEC |
| OPENING TIME | 13 SEC |
| Power supply | 50 Hz, 50/60 Hz Models: -10°F to +158°F (-23°C to +70°C). |
| Ambient Operating Temperature Ratings: | Modulating , 4-20 mA |
| Power Consumption | Driving -15 VA |
| Application/Usage | Gas Burners Industrial Accessories |
