Basic Info.
Structure
Rack and Pinion, Floating Ball Valve
Type
Floating Ball Valve
Function
Other
Temperature
Normal Temperature
Application
Industrial Usage, Water Industrial Usage, Household Usage
Power
Pneumatic
Working Type
Rotary
Pressure
Medium Pressure
Work Temperature
Normal Temperature
Acting Type
Double or Single
Normal Pressure
1000 Psi
Max Working Temperature
-20~150
Gas-Tightness Test
0.6MPa
Size
DN15~DN100
Transport Package
Carton Box
Trademark
Hearken
Origin
China
Production Capacity
5000 Per Month
Product Description
Description
3pcs Pneumatic stainless steel ball valve switch is light, small in size, can be made into large diameter, reliable sealing, simple structure, convenient maintenance, sealing surface and spherical surface are often closed, not easy to be eroded by medium, and are widely used in various industries.
Technical Specification
1.Design andmanufacture as per API 608.
2.End to end dimension be established by the manufacturer.
3.Thread end dimension as per ASME B1.20.1.
4.Test & inspection as per API 598.
| Main Technical Parameter | |||
| Normal Pressure | 1000 | Psi | |
| Test Pressure | Shell test pressure | 10.5 | |
| Tightmess test | 7.7 | Mpa | |
| Gas-Tightness test | 0.6 | ||
| Max working temperature | -20~150 | °C | |
| Applicable medium:water,gas,oil,acid | |||

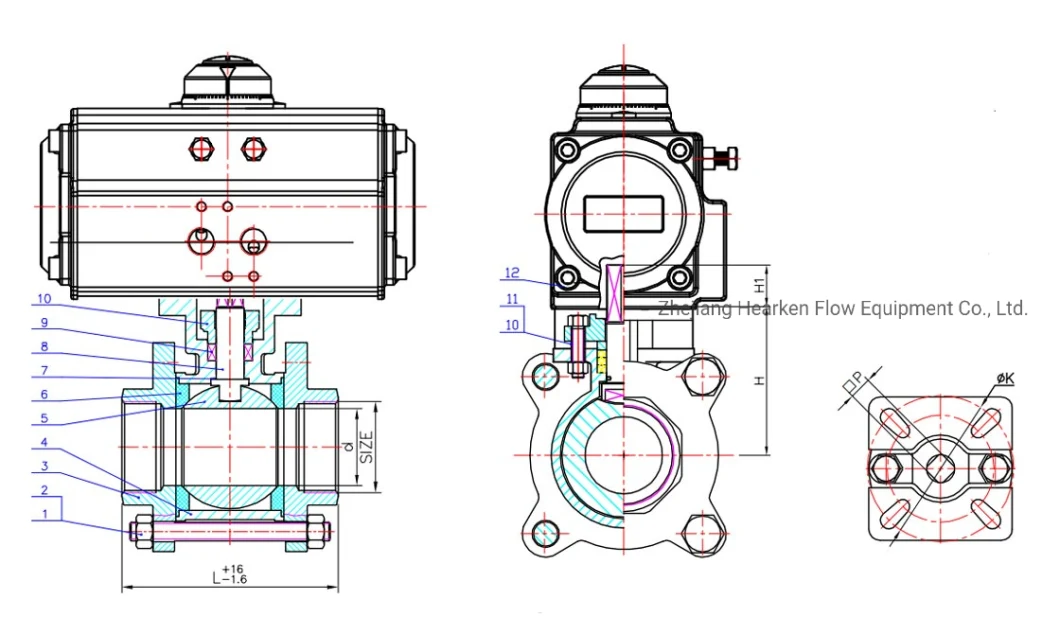

| No. | Part Name | Material |
| 1 | Bolt | B8M-CL2 |
| 2 | Nut | 8M |
| 3 | End Connector | CF8/CF8M |
| 4 | Body | CF8/CF8M |
| 5 | Ball | 304 |
| 6 | Sealing Ring | PTFE/RPTFE/PPL |
| 7 | Gasket | PTFE |
| 8 | Stem | 304 |
| 9 | Stem Packing | PTFE/RPTFE/PPL |
| 10 | Gland | VF8 |
| 11 | Bolt | B8M |
| 12 | Nut | 8M |
| 13 | Actuator | Aluminium Alloy |
| DN | Size | d | L | ΦK | P | H | H1 | Torque N.m |
| 15 | 1/2" | 15 | 67 | 50 | 9 | 50 | 10 | 6 |
| 20 | 3/4" | 20 | 78 | 50 | 9 | 55 | 10 | 8 |
| 25 | 1" | 25 | 87 | 50 | 11 | 55 | 12 | 10 |
| 32 | 1 1/4" | 32 | 100 | 50 | 11 | 67 | 12 | 12 |
| 40 | 1 1/2" | 38 | 110 | 70 | 14 | 78 | 15 | 20 |
| 50 | 2" | 49 | 130 | 70 | 14 | 83 | 15 | 28 |
| 65 | 2 1/2" | 65 | 167 | 102 | 17 | 115 | 18 | 33 |
| 80 | 2 1/2" | 78 | 200 | 102 | 17 | 130 | 18 | 51 |
| 100 | 4" | 100 | 240 | 102 | 19 | 150 | 20 | 66 |
H1 Torqu
1. Question:What is your main products?
2. Question:Are you a trader or manufacturer ?
Answer: We are the pneumatic actuators and electric actuators manufacturer , we have ability to do the customization products with experienced team, And we have own factory and production line. 3. Question:How do your make the quality guarantee for actuators?
Answer:We have our own quality control system for incoming and outgoing of the materials, every product will be under controlled and tested before delivery to our customer , and we also provide 18 months guarantee ,beside we provide technical supporting . 4. Question:When can I receive the Price of valve actuators ?
5. Question:How to order our pneumatic actuators and electric actuators ?
Answer:Please send us your inquiry by Email, whatsapp, wechat etc. we need to know the following informations before giving the formal Quotation. 1) Product information in details, Quantity, Other requirements
2) Delivery time required
6. Question:How can I get a sample to check your quality?
Answer:Contact with our sales expert to arrange the sample delivery. Please send us the details of the sample before placing the order. 7. Question:Shall we pay the sample cost and transportation cost ?
Answer:We will provide the sample by free of charge. Your will bear the freight cost. 8. Question:How long to prepare the sample ?
Answer:Most of our products are under regular production and some of them we keep in stocks. 9. Question:How to delivery the sample to our place?
Answer:Your can provide your forwarders contacts if any, or we will arrange it for you. 10. Question:What about the delivery date if we place the formal order ?
Answer:Usually it takes 15~20days on the production .We know that on-time delivery is very crucial to our customers to meet dead-lines. We monitor and expedite our supply chain to ensure that we delivery our products to our customers on-time all the time.
