Basic Info.
Model NO.
QT Series
Temperature
Ordinary Temperature
Connection
Thread
Material
Alloy
Design
Customized
Color
Blue or Customized
Used for
Air/Chemical/Gas/Valve/Rotary Machine
Protection Level
IP67
Transport Package
Wooden Case
Specification
QT1-QT5
Trademark
BH
Origin
China
HS Code
8412390000
Production Capacity
5000PCS/Year
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 40.00cm
Package Gross Weight
12.000kg
Product Description

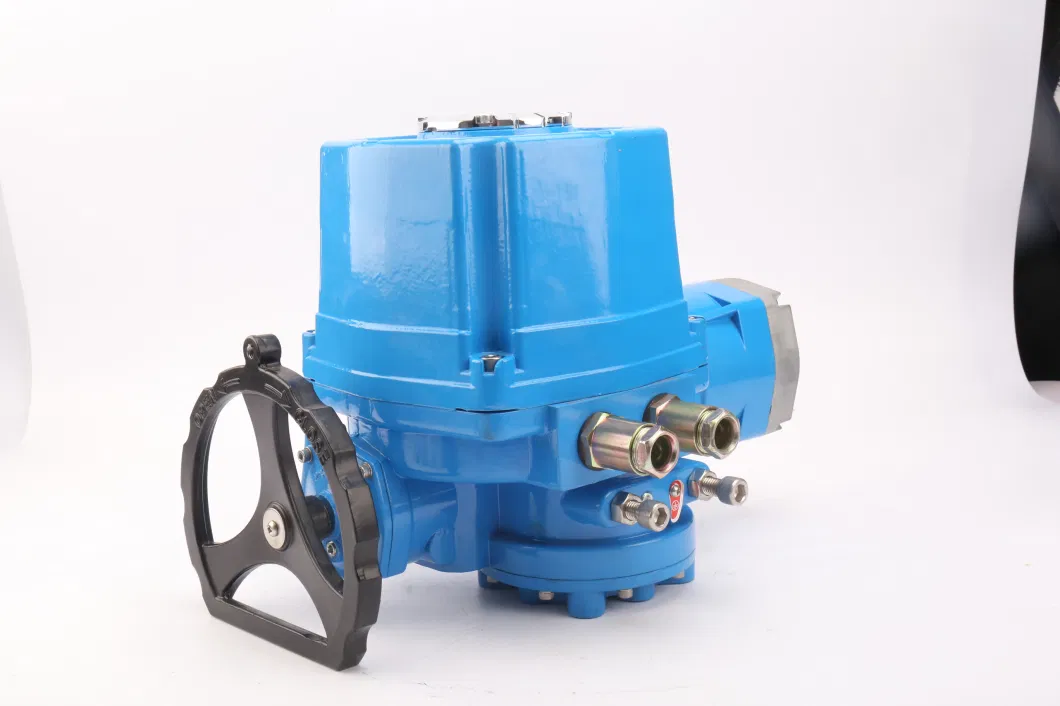

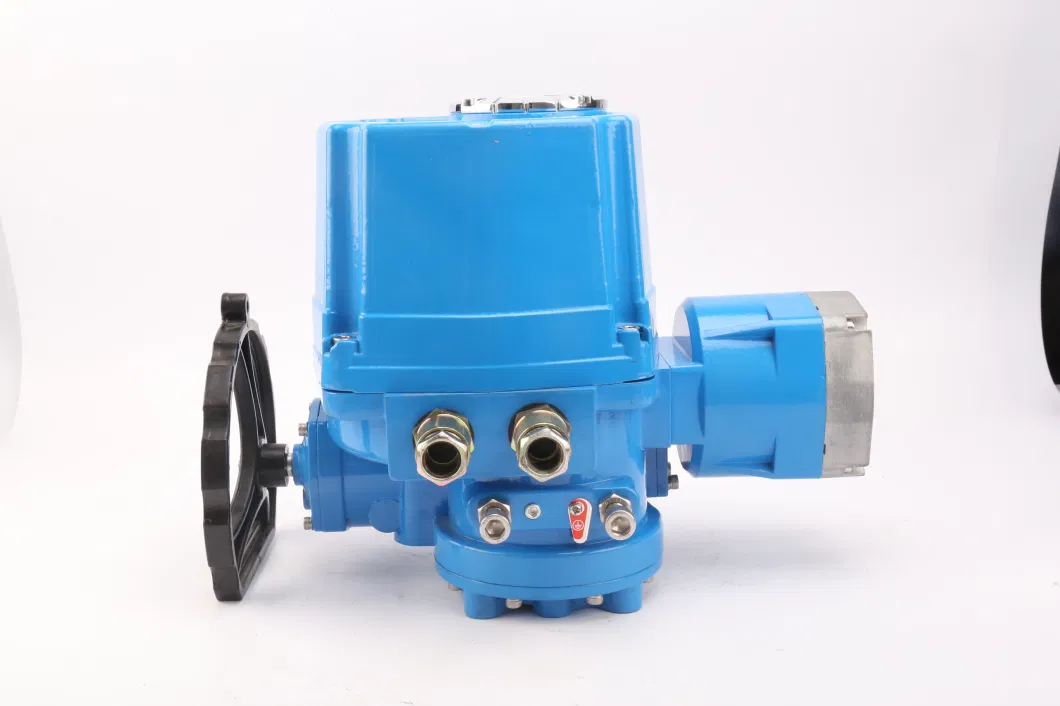

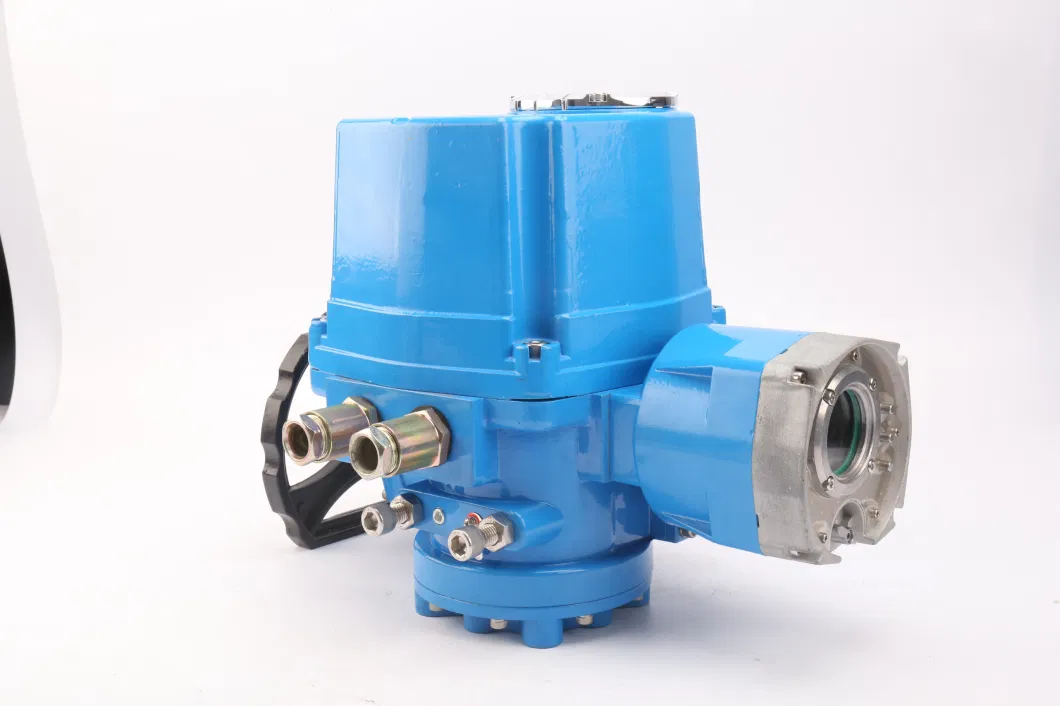

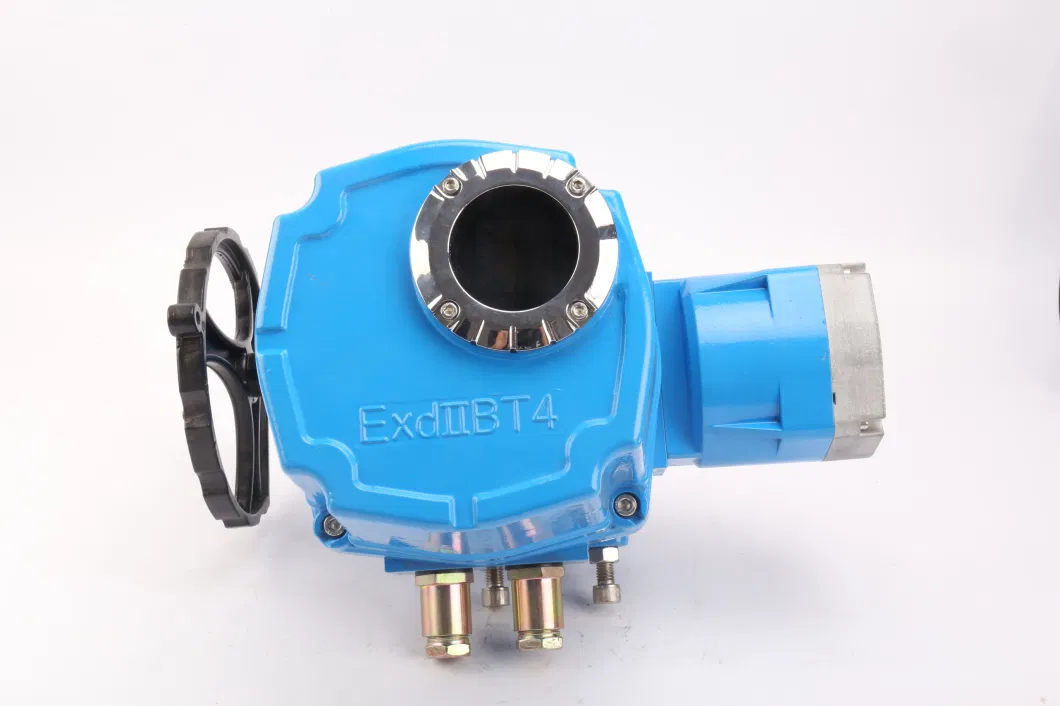

Automatic Control Part QT Series Modulating Electric Actuator for Industrial Valve
Purpose
QT Series Electric Actuator adopts squirrel cage motor with high output torque, making it a powerful and efficient choice for various applications. The actuator's transmission mode utilizes a worm wheel, ensuring smooth and reliable operation. Additionally, the output shaft is designed as a worm wheel pair drive, allowing for self-locking at any position.
Basic Information
| Product specification | QT1-QT5 |
| Operating stroke | 90°±5° |
| Protection level | IP67 |
| Output torque | 50-2500Nm |
| Protection category | Common type. explosion-proof type, regulating type, on-site/off type, intelligent type |
| Motor power supply | 110/220V AC 1PH 380/440V AC 3PH 50/60HZ Special power requirements need to be communicated in advance! |
| Environmental temperature | -30ºC~+70ºC -30ºC~+150ºC Special temperature requirements must be confirmed before ordering! |

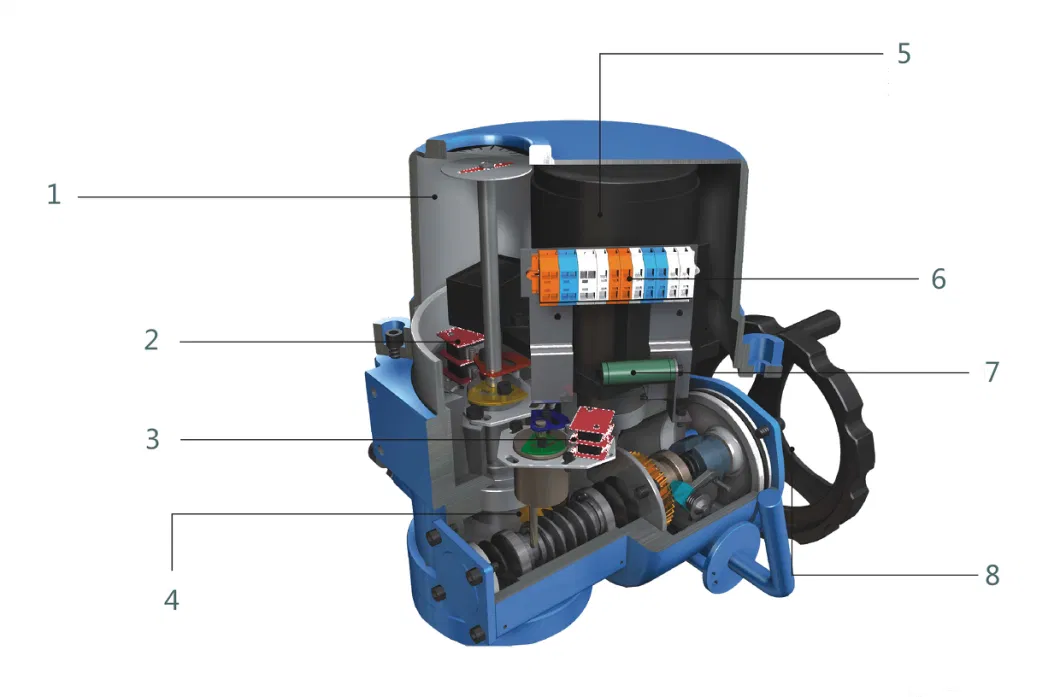

Parts and Materials:
| No. | Spare parts |
| 1 | Shell |
| 2 | Limit switch |
| 3 | Torque switch |
| 4 | Worm Wheel |
| 5 | Motor |
| 6 | Terminal connection & wiring block |
| 7 | Dryer |
| 8 | Manual mechanism |
Product Features:
1. Allows convert electrical energy into mechanical motion.
2. The movement of valves, dampers and other mechanical parts can be controlled effortlessly and with great precision.
3. Standard outter shell to water jet proof & water tight proof IP67
4. High stall torque and low inherent force for seating & unseating of valves
5. Accurate handwheel size fit on the electric actuator ensure adequate strength for safe and efficient emergency operation
6. Its robust construction and high-quality materials ensure long-lasting performance even in the most demanding environments.
7. It has a precise worm gear structure, which not make too much noise in usage, but also has a high output torque.
8. The versatility of QT electrical actuator makes it an ideal choice for a wide range of applications, from industrial automation to HVAC systems.
Drawings:

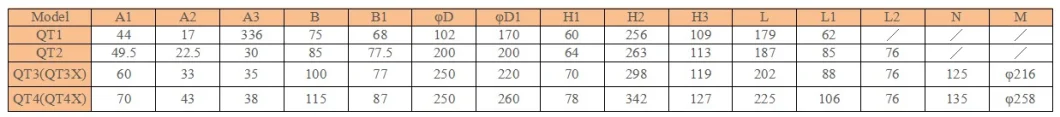

Main Dimensions:

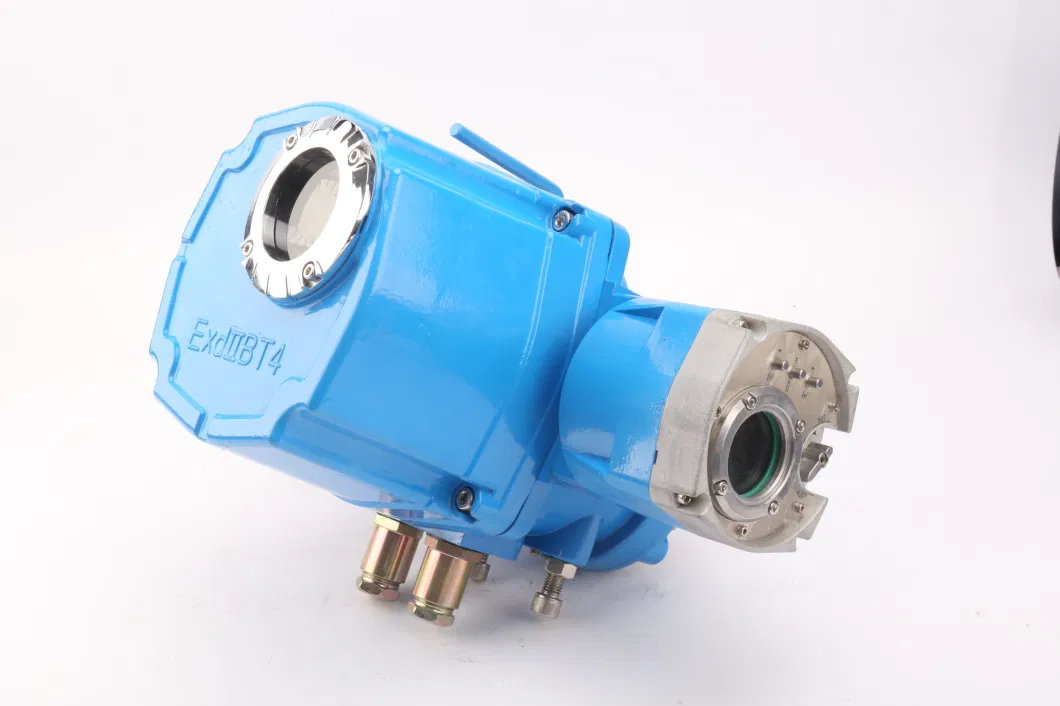

More pictures and packaging:

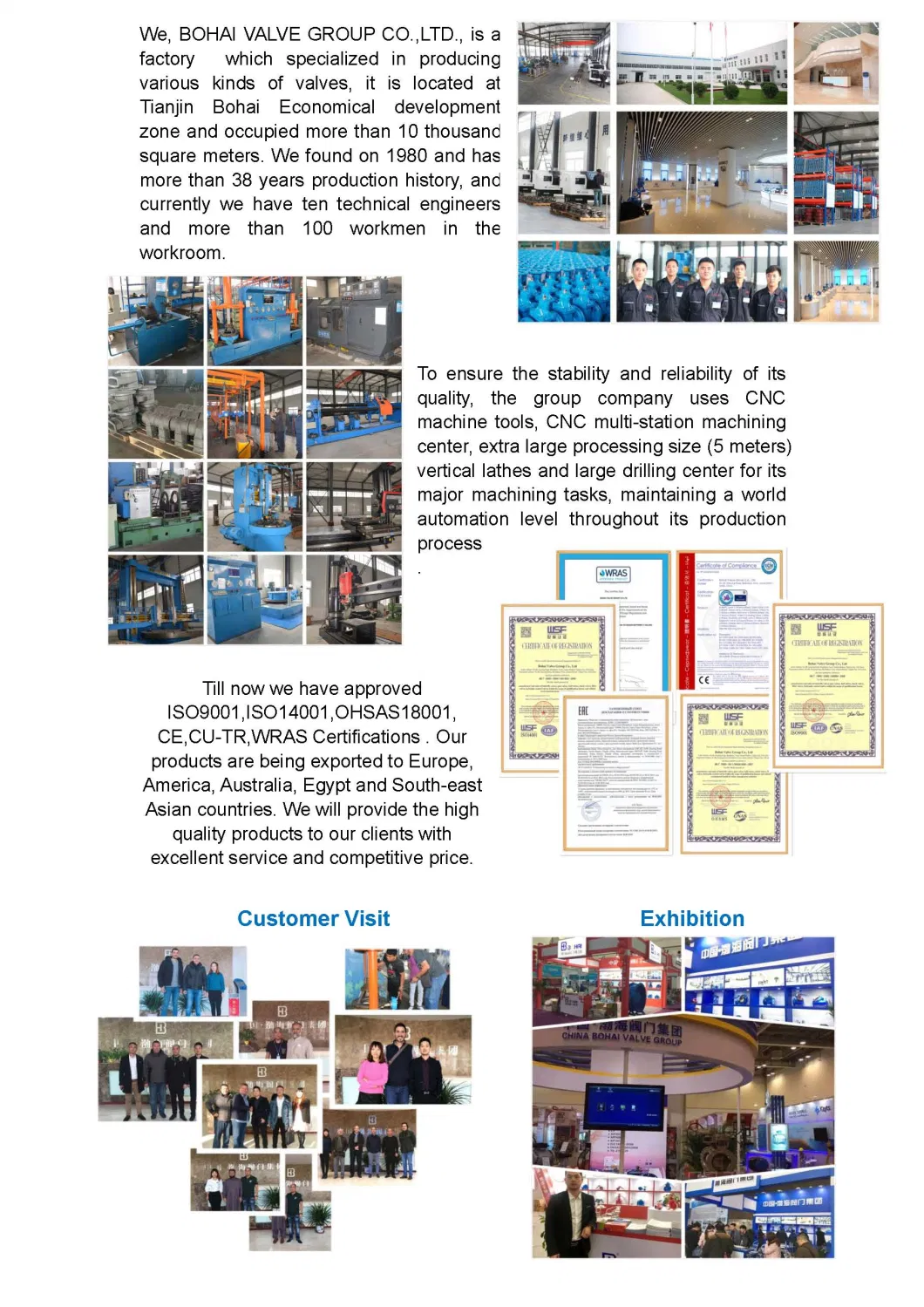

Q: Are you trading company or manufacturer ?A: We are factory Located In Tianjin, China.
Q: What's your product range?
A: We produce Butterfly valve, Gate valve, Check valve, Y strainer ,Water Controlling Valve and other Pipe Accessories .
Q: What's Execution Standard?
A: ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
Q: What's your Strong product ?
A: Centre Line Butterfly valve, Eccentric Butterfly valve ,Resilient Seat Gate valve, and largest size to DN3200 .
Q: How long is your delivery time?
A: Generally it is 10 days if the goods are in stock. or it is 35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shipment.
