Basic Info.
Model NO.
AW-17S
Acting Type
Double Acting
Material
Stainless Steel
Customized
Customized
Structure
Piston Type
Air Pressure
0.4~0.7MPa
Basic Temperature Type
-20~90degree
Rotation Angle
90 Angle
Gas Source Interface
G3/8′′
Type
Single-Action
Materials
Stainless Steel
Transport Package
One PC Actuator Packed in One Box
Specification
Single Acting, Double Acting, 32 ~300
Trademark
RFS
Origin
Ningbo China
Production Capacity
Over 5 000PCS /Month
Product Description

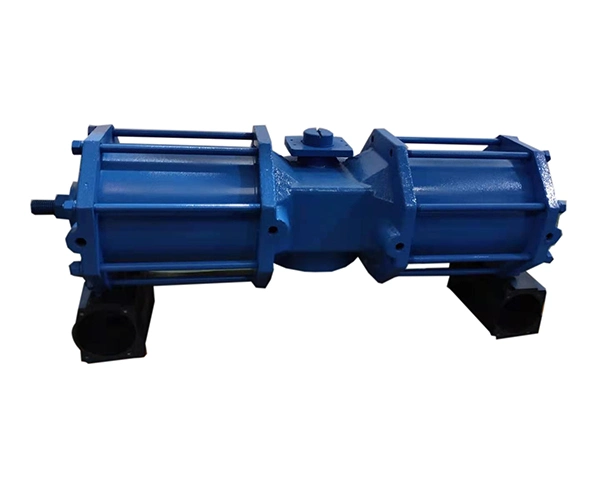

AW actuator Spring Return Pneumatic Lug Type PTFE Butterfly Valve Manufacturers
Product Description

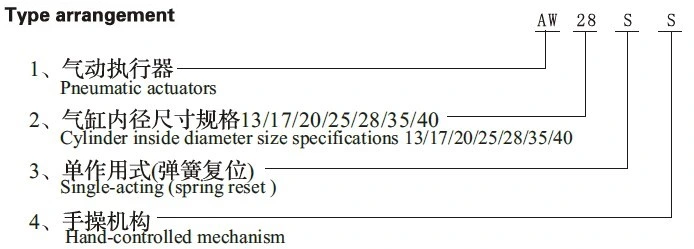

Ordering Code
Specification

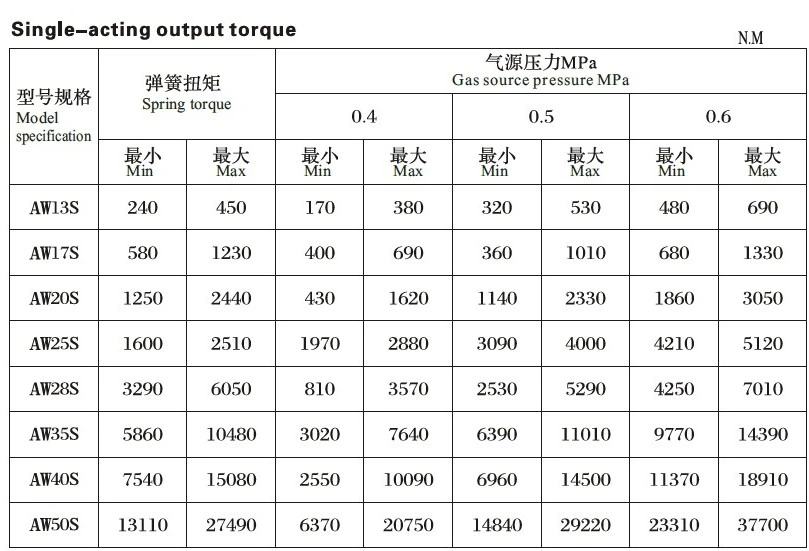

Output Torque

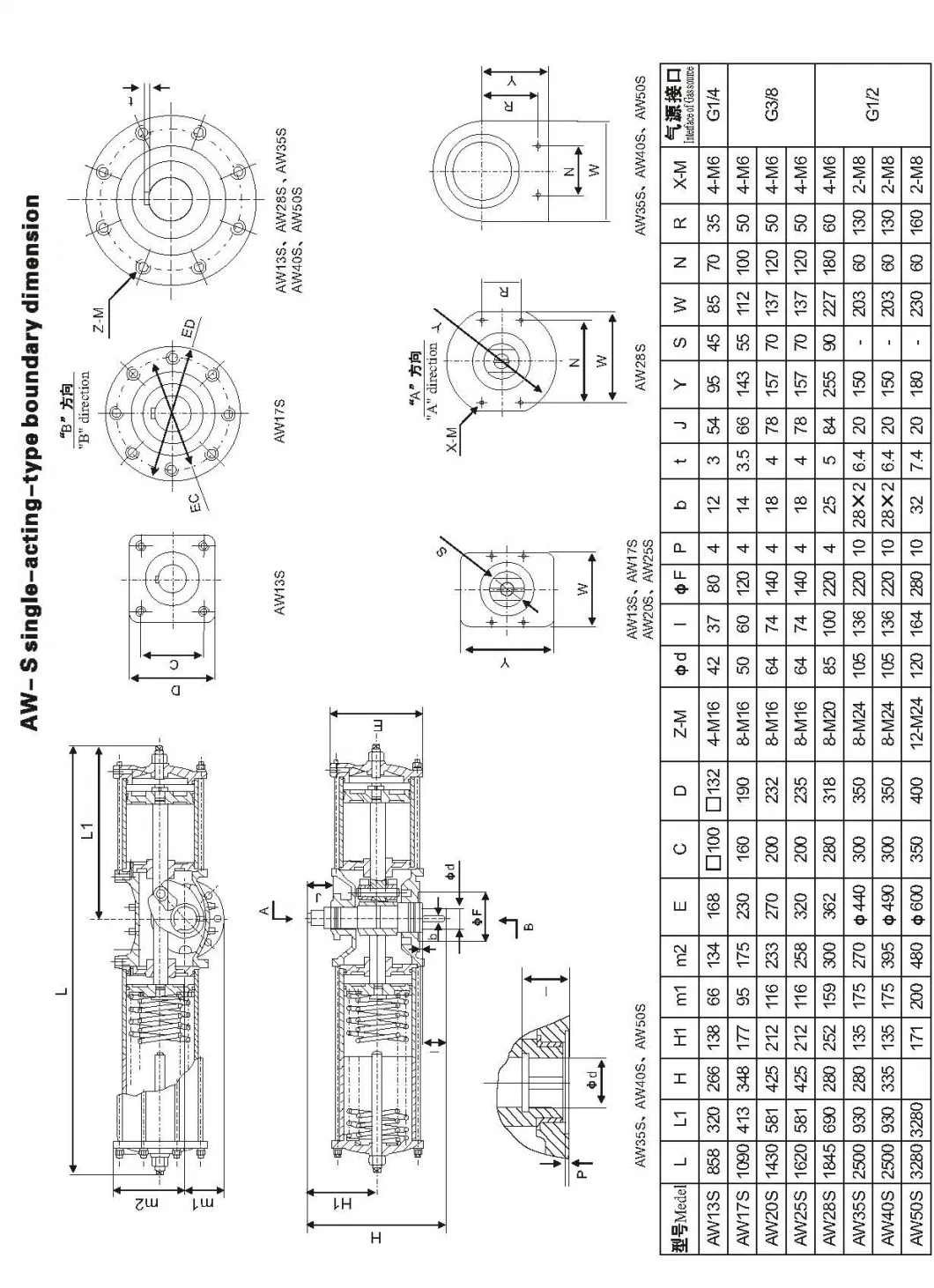

Overall Dimension
Company information
GET MORE
Xingyu Electron(Ningbo)Co.,Ltd. is one of the key enterprises in Chinese pneumatic and valve industry,We specialize in development,manufacturing, marketing and service of pneumatic actuator,angle seat valves,solenoid valves,solenoid coils and DIN connectors;
"Not to be the biggest,but to be the strongest" is our business goal and ideal,let us make best efforts for a better future.
Brief Introduction:
--Approx 30 years' experience in manufacturing solenoid coils;
--Started to make solenoid valves & pneumatic actuators since 2004;
--ISO 9001 and IATF16949 certificated company;
--Main products: pneumatic actuator, Angle seat valves, Solenoid valves, solenoid coils,
Digital pressure switch, Vacuum generator, E/P regulator;
--Application: Pneumatic & Hydraulic industries, fluid control system,
air and water treatment system, Automatic industry, etc;
FAQ
Q:Are you a trading company or a factory?
A: We are a factory, manufacturer solenoid coils since year 1990.
Q:After an order is placed, when to deliver?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty ?
A: Normally it is guaranteed for 12 months since dispatching from factory
Q: Can you customized the products?
A: Yes, we have professional R&D team, we supply customized products to customers
HOME BACK
Ordering Code
Specification
| Type | Actuator |
| Place of Origin | China |
| Brand Name | RFS |
| Air pressure | 0.4~0.7Mpa |
| Basic temperature type | -20~90Degree |
| rotation angle | 90±5 angle |
| Gas source interface | G3/8'' |
| Type | single acting (spring return) |
| materials | Stainless steel |
Output Torque
Overall Dimension
