Basic Info.
Model NO.
AVK24A-3-TPC
Temperature
Ordinary Temperature
Connection
Welding
Material
Plastic
Transport Package
Carton
Specification
15*20*10
Trademark
Belimo
Origin
Switzerland
HS Code
850131000
Production Capacity
10000
Packaging & Delivery
Package Size
20.00cm * 18.00cm * 25.00cm
Package Gross Weight
4.200kg
Lead Time
7 days (1 - 1 Pieces)
To be negotiated ( > 1 Pieces)
To be negotiated ( > 1 Pieces)

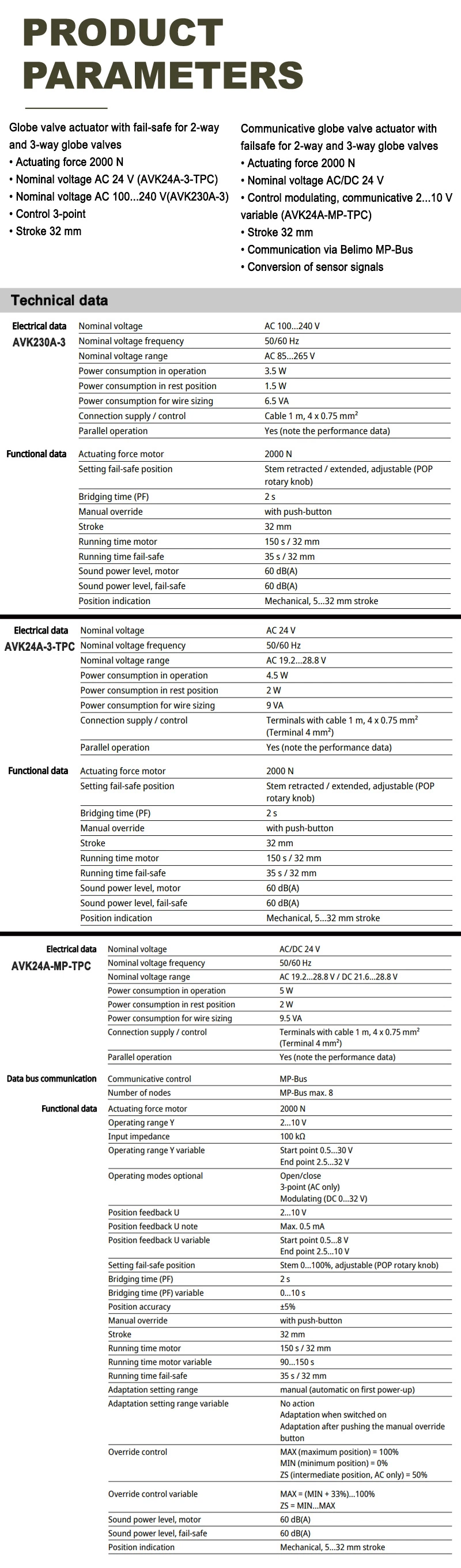

Product Description
| Voltage AC/DC | AC 24 V |
| Power consumption (running) | 4.5 W |
| Power consumption (holding) | 2 W |
| Power Consumption For Wire Sizing | 9 VA |

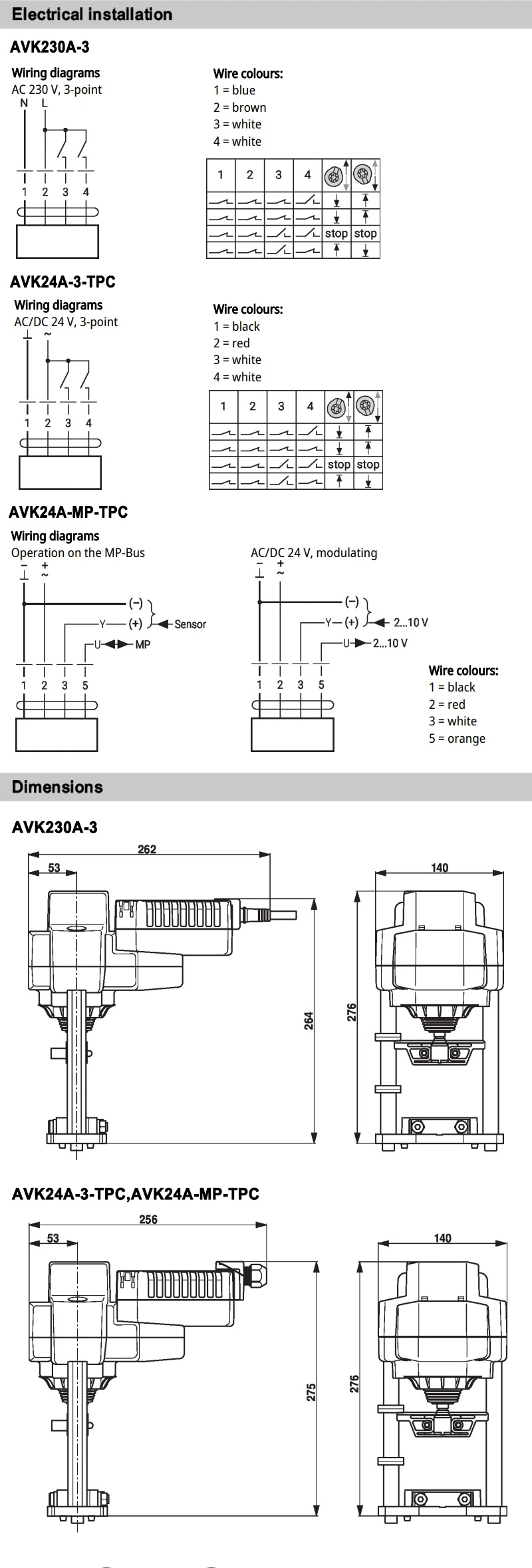

| Connection Supply Control | Terminals with cable 1 m, 4x 0.75 mm² (Terminal 4 mm²) |
| Torque | 2000 Nm |
| Control type | 3-point |

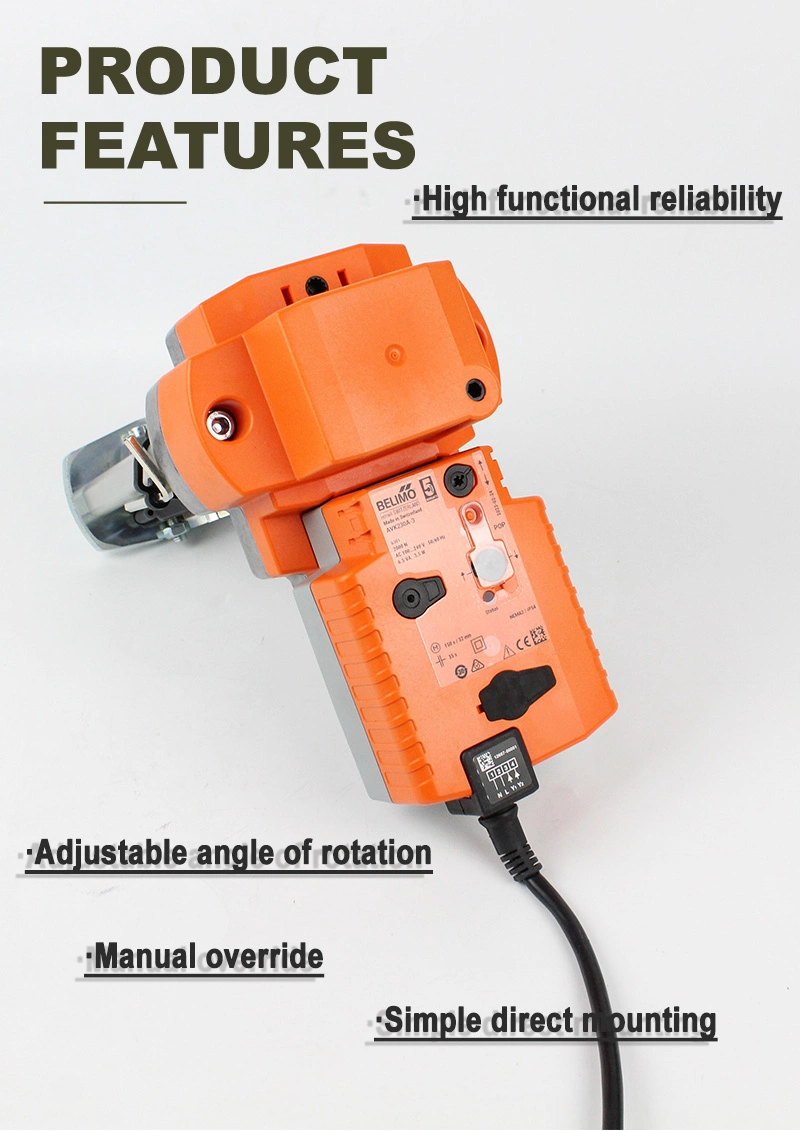

| Manual override | With push-button |
| Stroke | 32 mm |
| Running time (motor) | 150 s / 32 mm |
| Running time (fail-safe) | 35 s |
| Protection category | IP54 |
| Degree Of Protection NEMA | NEMA 2 |
| Enclosure Type | UL Enclosure Type 2 |
| Ambient Temperature | 0...50°C [32...122°F] |
