Basic Info.
Model NO.
EV230A-TPC
Temperature
Ordinary Temperature
Connection
Welding
Material
Plastic
Transport Package
Carton
Specification
15*20*10
Trademark
Belimo
Origin
Switzerland
HS Code
850131000
Production Capacity
10000
Packaging & Delivery
Package Size
20.00cm * 18.00cm * 25.00cm
Package Gross Weight
4.000kg
Lead Time
7 days (1 - 1 Pieces)
To be negotiated ( > 1 Pieces)
To be negotiated ( > 1 Pieces)
Product Description

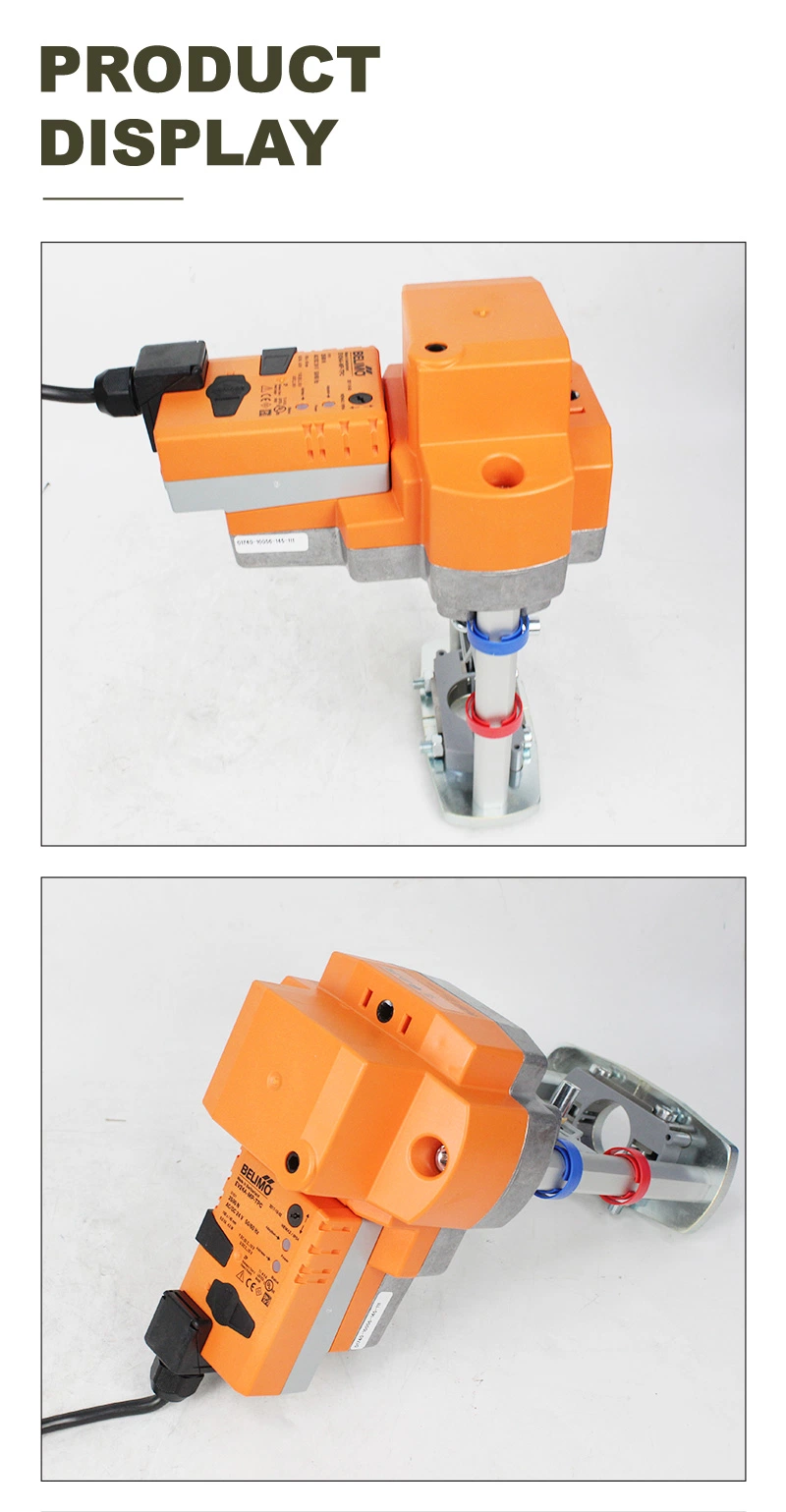

Globe valve actuator, 2500 N, AC220 V, 0.5...10 V, 150 s, Stroke 40 mm, IP54, Terminals with cable

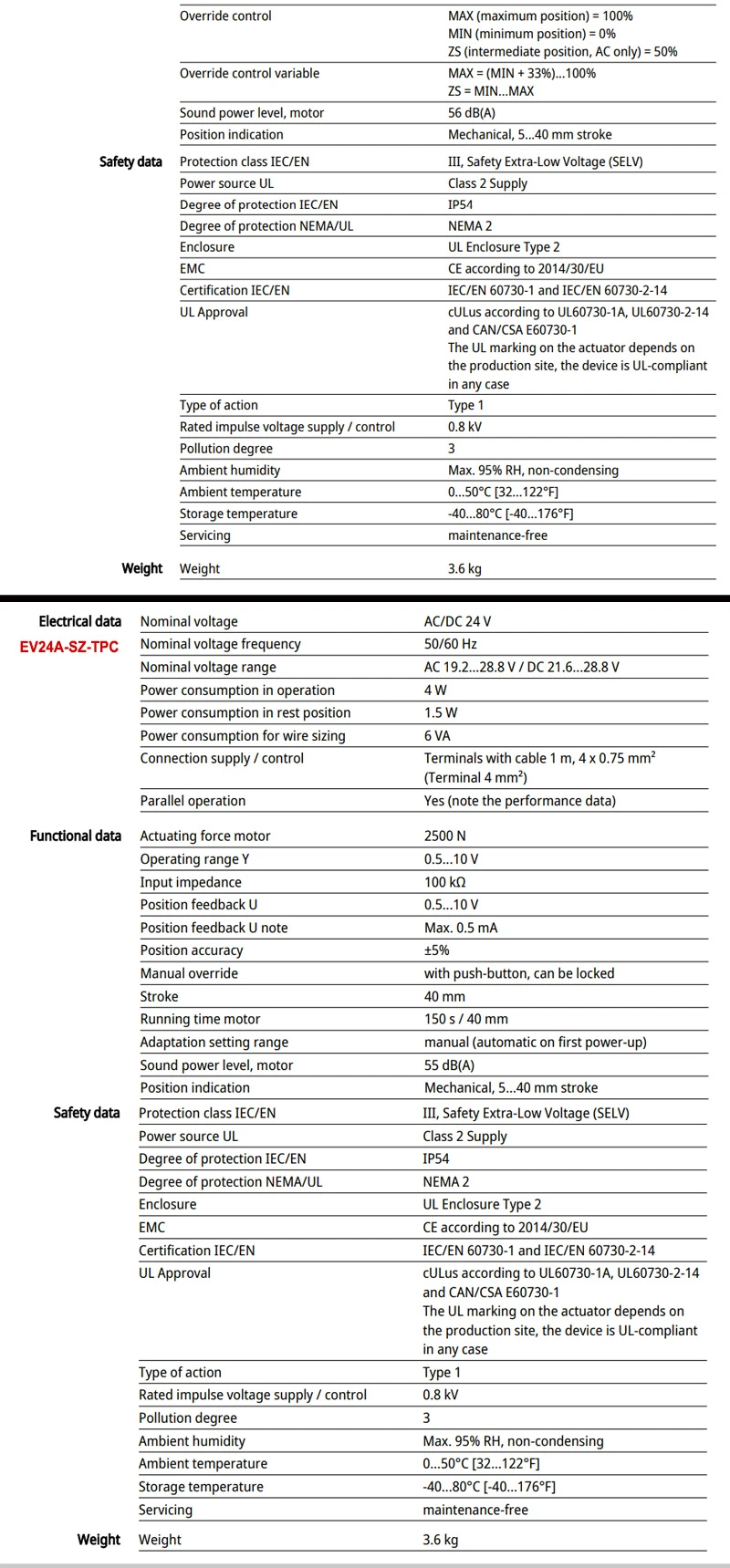

| Voltage AC/DC | AC 100...240 V |
| Power consumption (running) | 5.5 W |
| Power consumption (holding) | 1 W |
| Power Consumption For Wire Sizing | 9.5 VA |

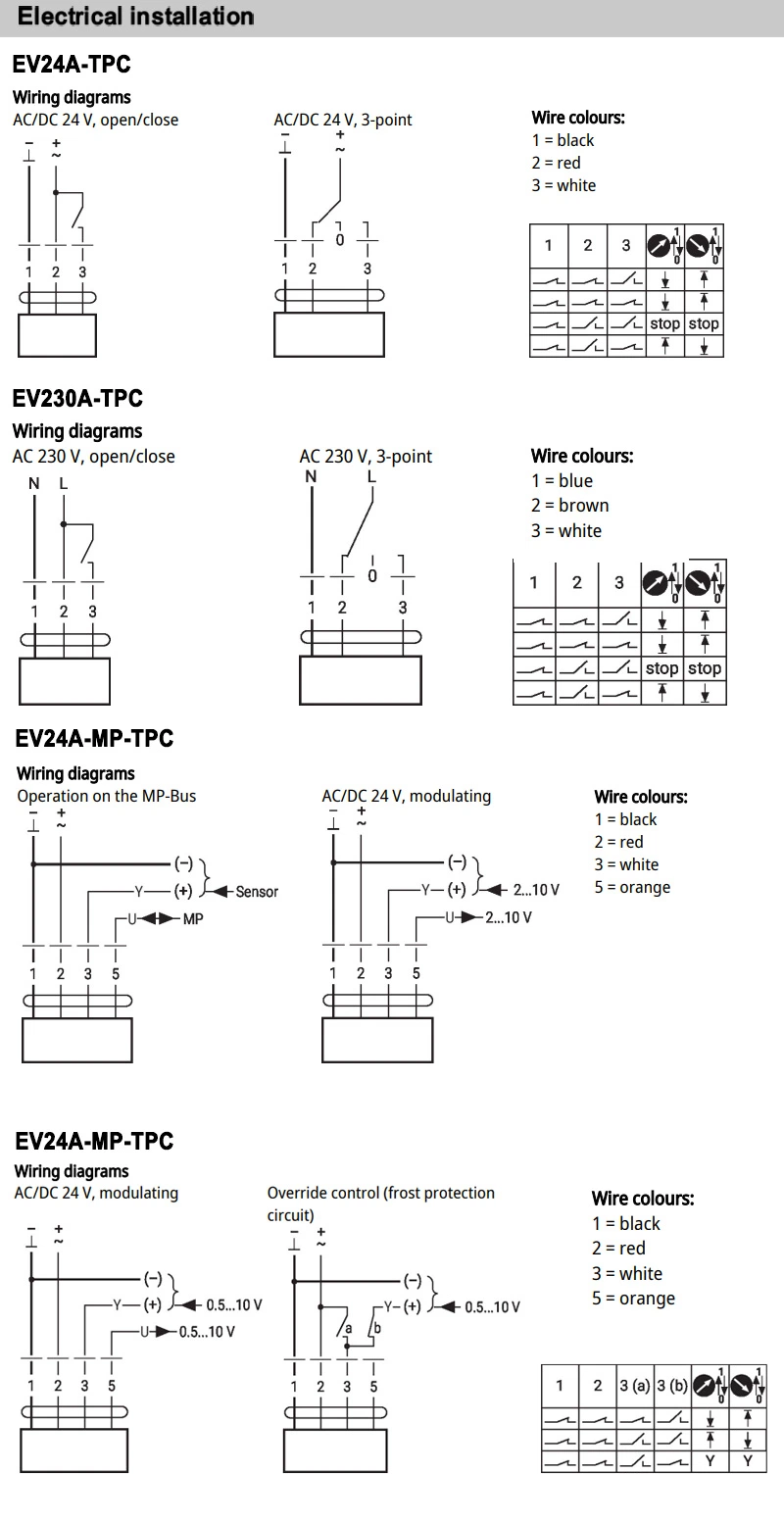

| Connection Supply Control | Terminals with cable 1 m, 3x 0.75 mm² (Terminal 4 mm²) |
| Force | 2500 N |
| Control type |
|
| Direction Of Motion Motor | With push-button, can be locked |
| Stroke | 40 mm |
| Running time (motor) | 150 s / 40 mm |
| Protection category | IP54 |
| Degree Of Protection NEMA | NEMA 2 |
| Enclosure Type | UL Enclosure Type 2 |
| Ambient Temperature | 0...50°C [32...122°F] |
