Basic Info.
Model NO.
SV24A-SZ-TPC
Temperature
Ordinary Temperature
Connection
Welding
Material
Plastic
Transport Package
Carton
Specification
15*20*10
Trademark
Belimo
Origin
Switzerland
HS Code
850131000
Production Capacity
10000
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 25.00cm
Package Gross Weight
1.600kg
Lead Time
7 days (1 - 1 Pieces)
To be negotiated ( > 1 Pieces)
To be negotiated ( > 1 Pieces)
Product Description

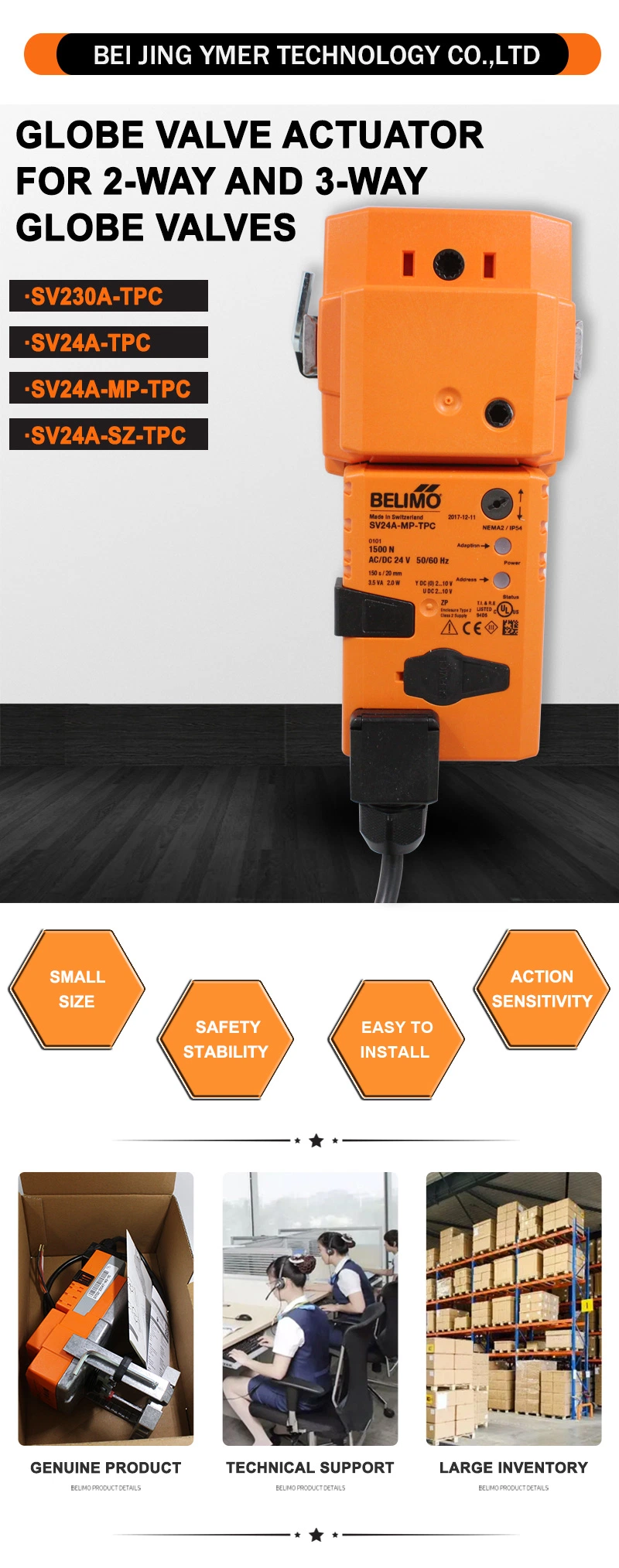

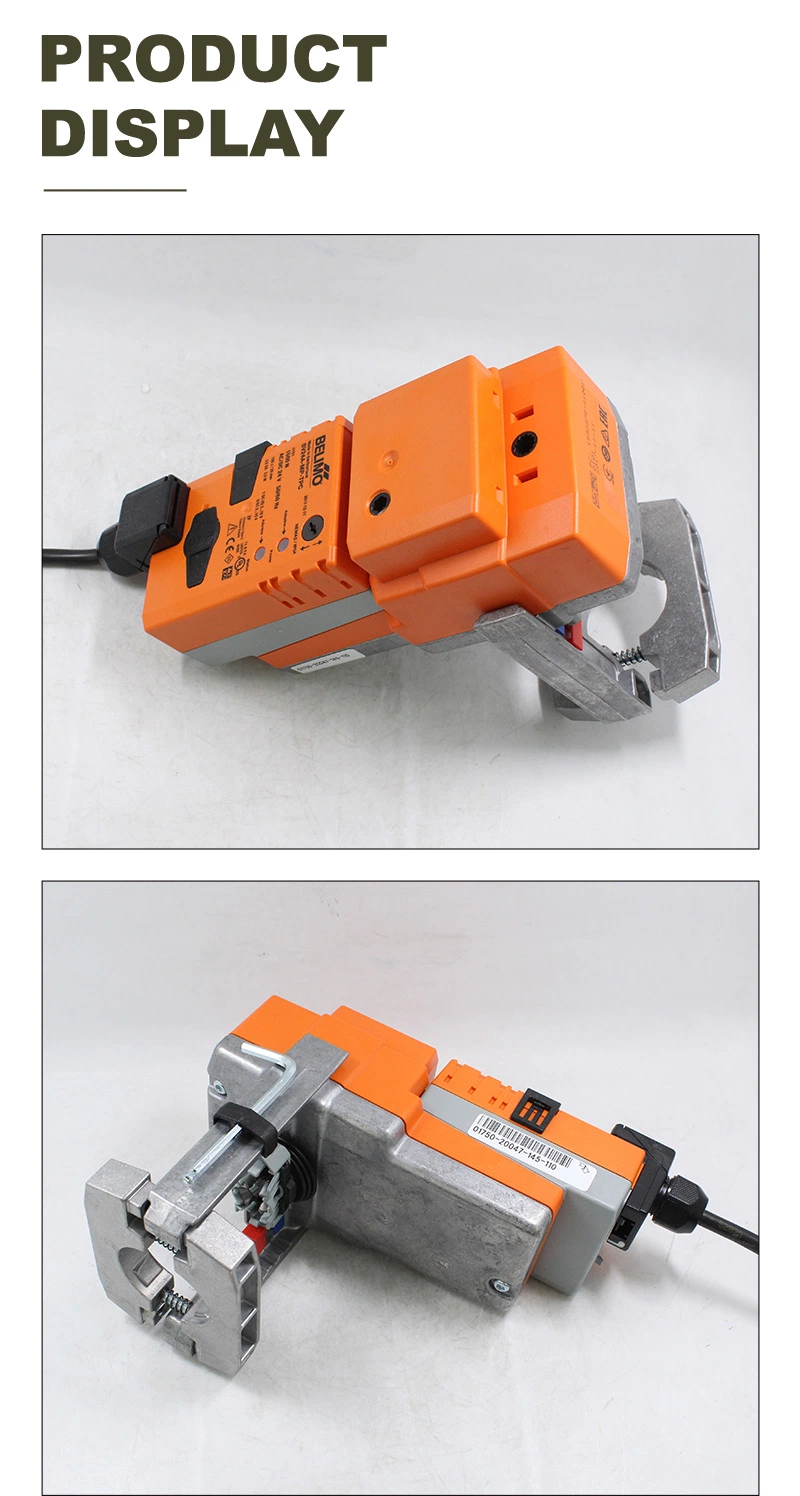

This globe valve actuator, with a stroke of 20mm and 0.5-10V control, is designed for efficient and precise control of globe valves. It operates on AC/DC 24V power and has a torque of 1500N. With an IP54 rating, it is suitable for various applications. The terminals come with cables for easy installation.

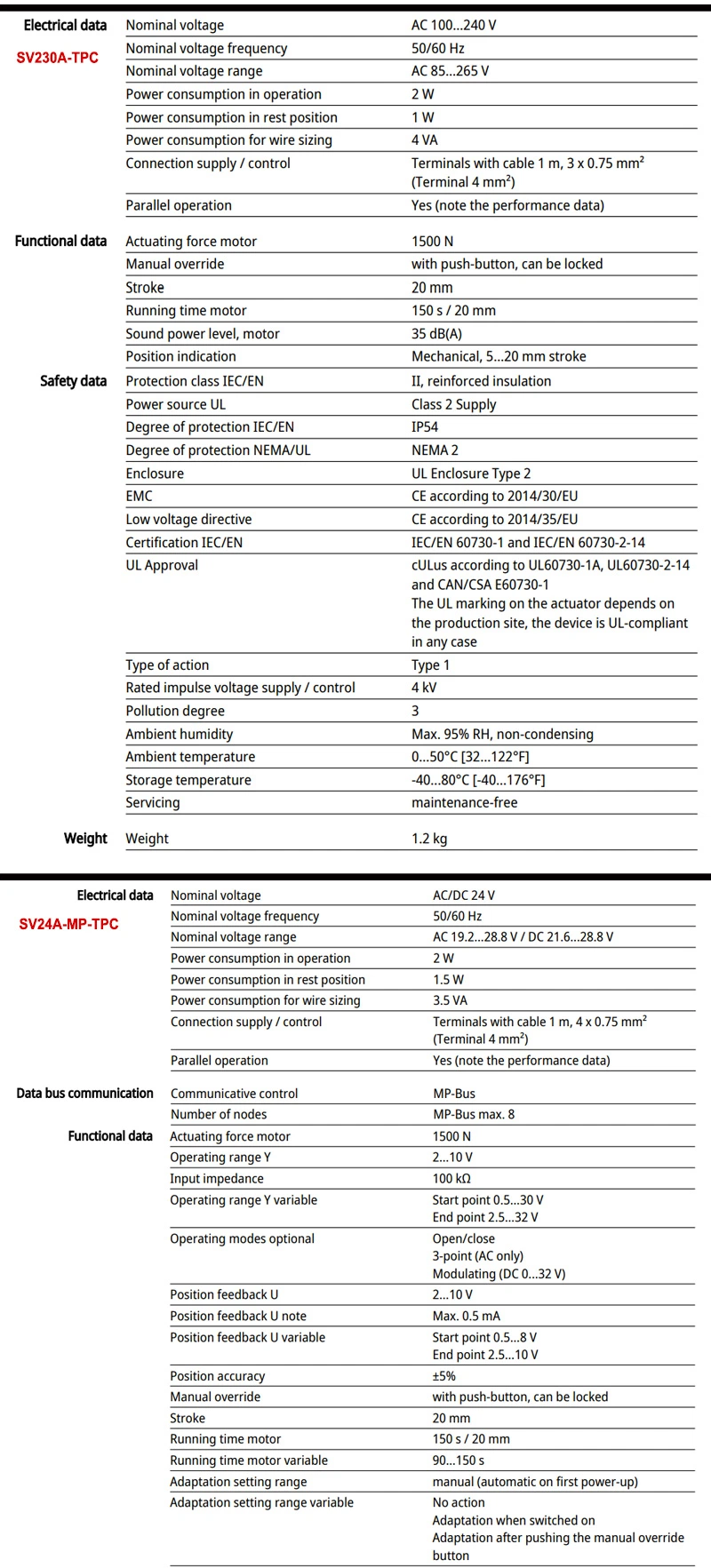

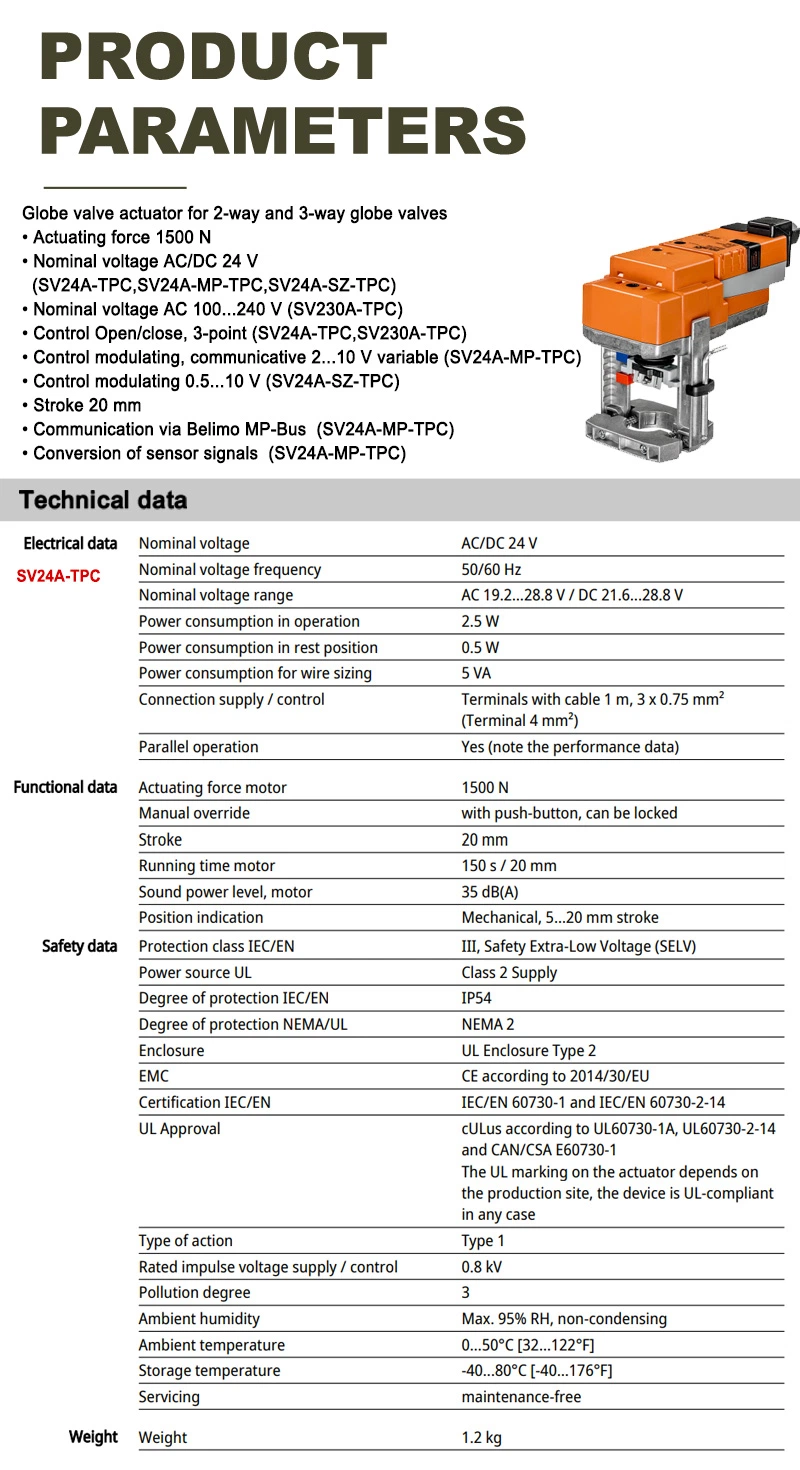

| Voltage AC/DC | AC 24 V |
| Power consumption (running) | 2 W |
| Power consumption (holding) | 1.5 W |
| Power Consumption For Wire Sizing | 3.5 VA |

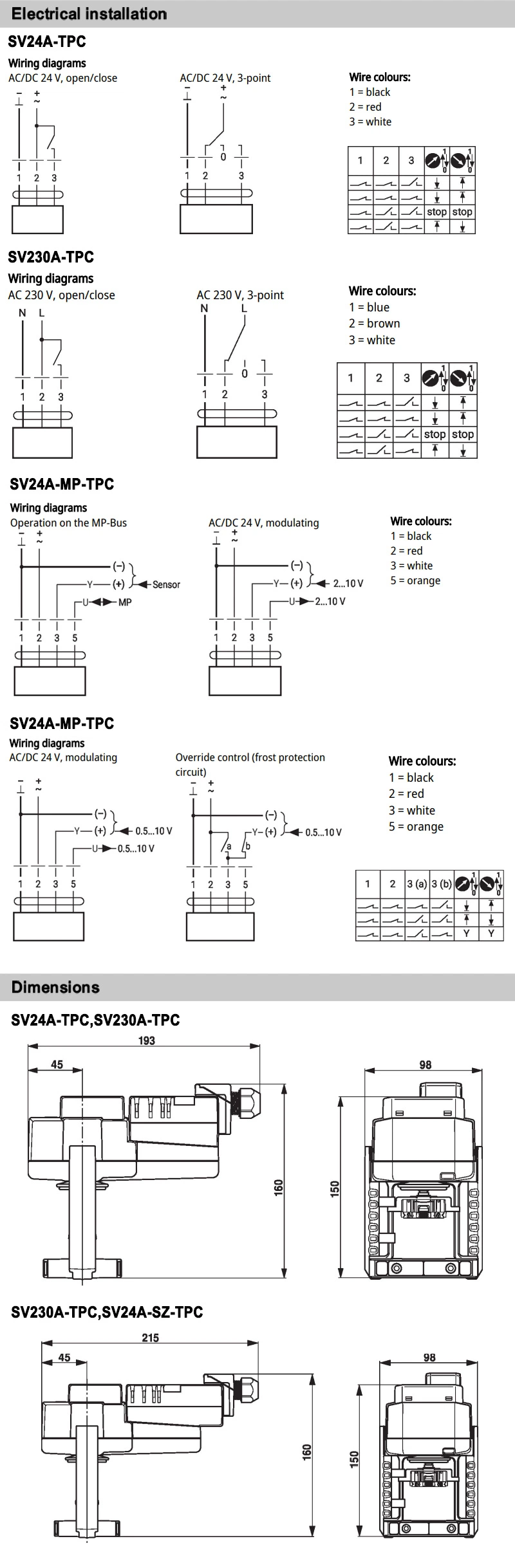

| Connection Supply Control | Terminals with cable 1 m, 4x 0.75 mm² (Terminal 4 mm²) |
| Force | 1500 N |
| Control type | DC 0.5...10 V |

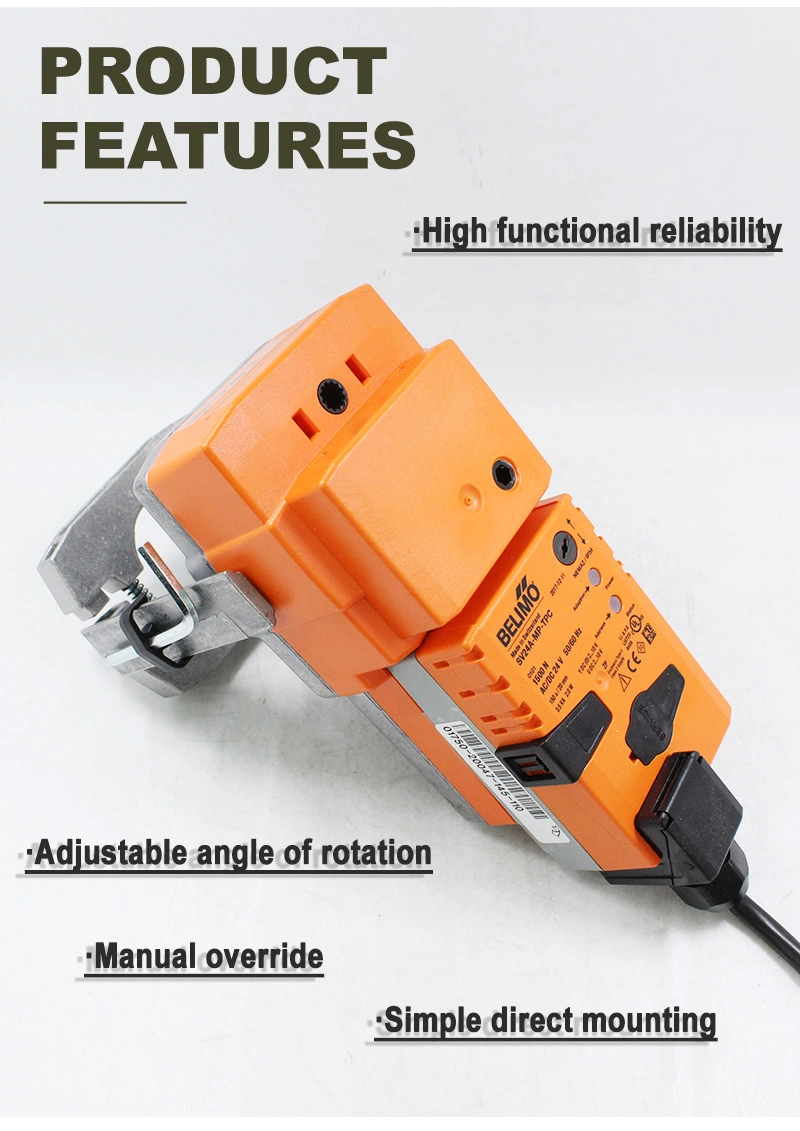

| Manual override | With push-button, can be locked |
| Stroke | 20 mm |
| Running time (motor) | 150 s / 20 mm |
| Protection category | IP54 |
| Degree Of Protection NEMA | NEMA 2 |
| Enclosure Type | UL Enclosure Type 2 |
| Ambient Temperature | 0...50°C [32...122°F] |
