Basic Info.
Model NO.
YSD-RSGV-1
Actuator
Manual
Seal Surface
Wedge Gate Valve
Thread Position of Valve Rod
Inside Gate Valve
Usage
Regulation, Safety, Flow Control
Standard
GB
Application
Industrial Usage, Water Industrial Usage, Household Usage
Color
Natural Brass
Transport Package
Polybag, Inner Box, Carton and Wooden Pallets
Specification
200pcs/Carton
Trademark
depends on buyers
Origin
China
HS Code
8481804090
Production Capacity
1000000
Product Description
High Quality 3 Inch Locking Ss Ductile Iron Automatic Leaking Italy Slab Roller Din3352 F5 Wedge Type Gate Valve
| Air Flow Capacity | 0 cubic_feet_per_minute |
|---|---|
| Body Material | Iron |
| Connector Type | Flanged |
| Exterior Finish | Painted,Rubber,Iron |
| Inlet Connection Size | 4 inches |
| Inlet Connection Type | Flange |
Details as below:
Item: Non-rising stem metal seated gate valve DIN3352-f5
Standard: DIN
Body: Cast iron or ductile iron
Disc: Cast iron or ductile iron
Seat: Brass/bronze
Stem: Stainless steel
Bonnet: Cast iron or ductile iron
O-ring: NBR
Handwheel: Cast iron or ductile iron
Size: Dn40~dn300
Nominal pressure: Pn10, pn16
Aplication:
1. Face to face is according to DIN3202-f4
2. Flange drilled is according to DIN2532/2533
OEM is welcomed!
Any questions or more details, please feel free to contact me!
| DN | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | |
| 1.5" | 2" | 2.5" | 3" | 4" | 5" | 6" | 8" | 10" | 12" | 14" | 16" | 20" | ||
| L | 140 | 150 | 170 | 180 | 190 | 200 | 210 | 230 | 250 | 270 | 290 | 310 | 350 | |
| H | 255 | 247 | 276 | 293 | 334 | 448 | 448 | 549 | 617 | 724 | 830 | 890 | 1000 | |
| D(PN10) | 150 | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 395 | 445 | 505 | 565 | 570 | |
| D(PN16) | 150 | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 460 | 520 | 580 | 715 |

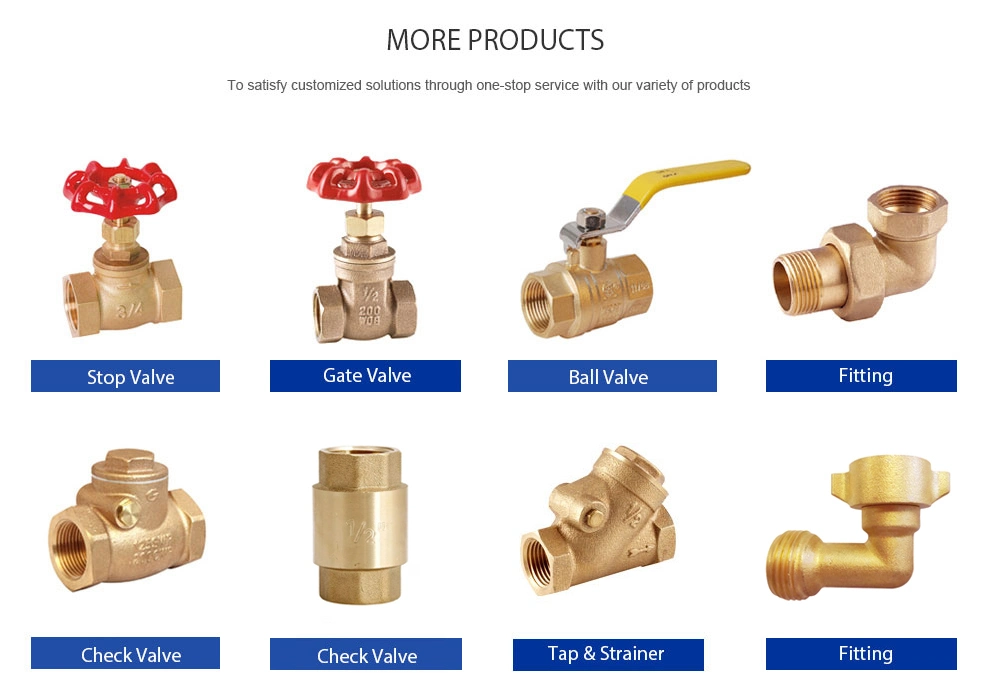

Other products
Why Choose US
We control the material of PTFE and stainless steel wires per customer's request.
Some are from Japan and Taiwan, some are from China local. Only choose high quality material.
We test leakage of each roll before braiding, then we cut 300mm and crimp it to test
burst pressure after brading.

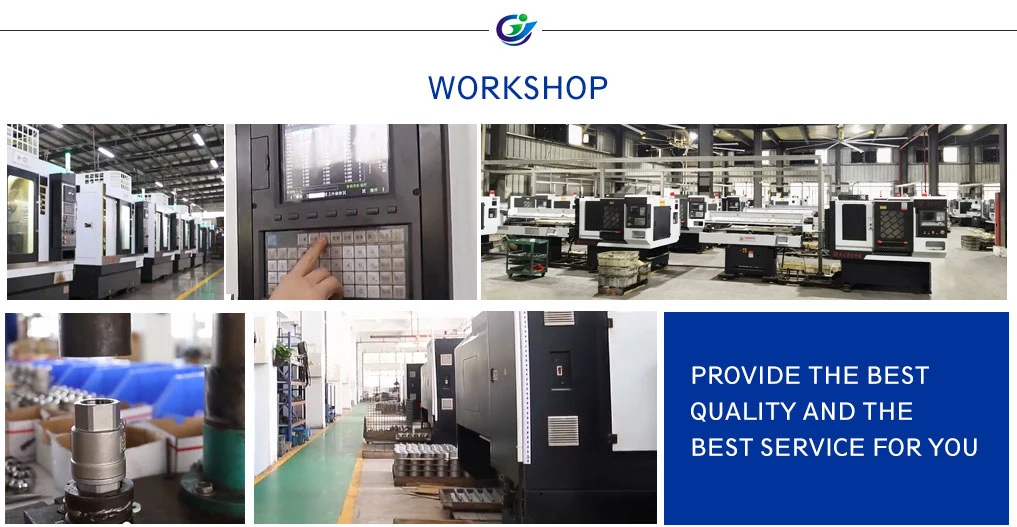

We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection
