Product Description
HQT Explosion-Proof Quarter-Turn Electric Actuators can be used for driving and controlling the butterfly valves, ball valves, plug valves (part-turn valves with 90ºmovement), the actuators can be either remotely controlled or locally controlled, Its widely used in the fields such as oil, chemical, power generation, water treatment ect…..The protection class is IP67, And the Explosion proof class is ExdIICT4 ,Its Automation Maximum Output Torque is 3000N.m.
Standard Specifications
Housing | Waterproof Level IP67,NEMA4 and 6 | |
Motor power supply | Standard:220VAC single-phase | |
Motor | Squirrel-cage asynchronous motor | |
Limit switches | On/off,each of the 1 spdt,250VAC 10A | |
Auxiliary limit switch | On/off,each of the 1 spdt,250VAC 10A | |
Torque switch | On/off,each of the 1 spdt,250VAC 10A | HQT010 Exclided |
Travel | 90°±10° | 0°~270° Optional |
Stall protection/operating temperature | Built-in overheating proteation,open 115ºC±5ºC/close 97ºC±5ºC | |
Indicator | Continuous position indicator scale | |
Manual operation | Mechanical clutch mechanism,with handwheel operation | |
Self-locking unit | Worm gear,self-locking provided for the worm mechanism | |
Mechanical limit | Two external adjusting bolts | |
Dryer | 7-10W(110/220VAC) | |
Wiring hole | M20*1.5 M36*2 | |
Ambient Temp | -20ºC~+70ºC | |
Lubrication | Aluminum-base grease (EP type) | |
Material | Steel/aluminum alloy/aluminum bronze/polycarbonate | |
Ambient humidity | Maximum 90% RH non-condensing | |
Seismic performance | X Y Z 10g,0.2~34Hz,minutes | |
Outer coating | Dry powder/epoxy polyester,with a superior anti-corrosion function | |

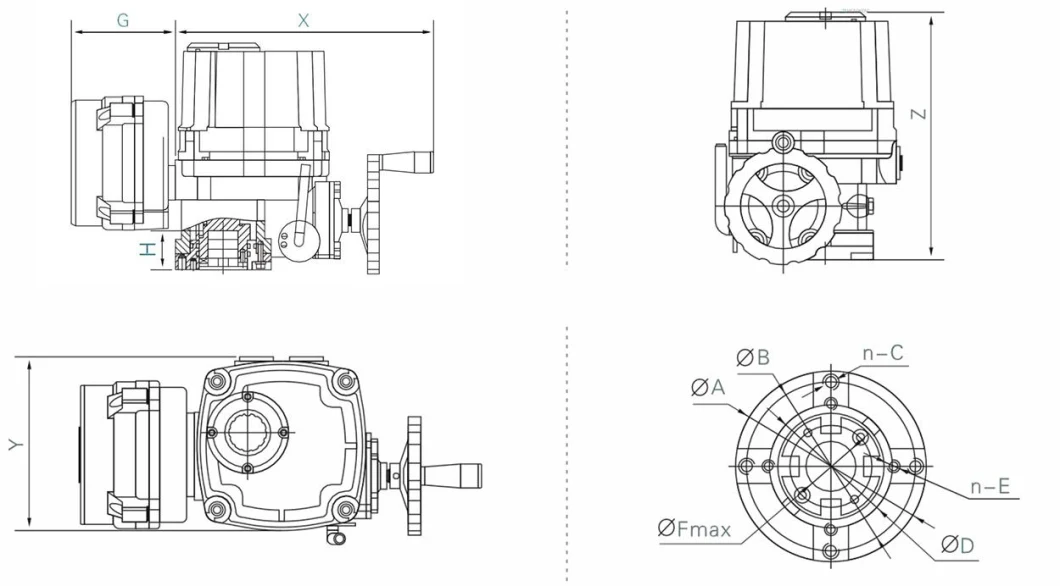

| Model | MaTxoOrquuteput (Nm) | OTpimereat9i0n°g (S) | MaSxiBzeore (mm) | FM-coltaosrs (W) | Rated Current(A)60/50Hz | HRaontdawtihoenel (N) | W(eKig)ht | Flange | |||
| Single-phase | Three-phase | ||||||||||
| 110V | 220V | 380V | 440V | ||||||||
| HQT010 | 100 | 18/22 | Ø20 | 20 | 1.10/0.95 | 0.55/0.54 | 0.3/0.3 | N/A | 10 | 13 | F07 |
| HQT015 | 150 | 21/25 | Ø22 | 40 | 1.65/1.67 | 0.88/0.84 | 0.31/0.31 | 0.30/0.31 | 10 | 15 | F07/F10 |
| HQT020 | 200 | 21/25 | Ø22 | 40 | 1.67/1.67 | 0.89/0.85 | 0.35/0.31 | 0.31/0.31 | 11 | 15 | F07/F10 |
| HQT030 | 300 | 26/31 | Ø35 | 60 | 1.85/1.86 | 0.92/0.92 | 0.35/0.35 | 0.34/0.34 | 13.5 | 22 | F07/F10 |
| HQT050 | 500 | 26/31 | Ø35 | 90 | 3.60/3.62 | 1.55/1.58 | 0.59/0.59 | 0.58/0.58 | 13.5 | 23 | F10/F12 |
| HQT080 | 800 | 31/37 | Ø45 | 120 | 4.10/4.10 | 2.15/2.20 | 0.85/0.85 | 0.79/0.79 | 16.5 | 30 | F10/F14 |
| HQT100 | 1000 | 31/37 | Ø45 | 180 | 4.20/4.10 | 2.35/2.30 | 0.87/0.87 | 0.81/0.81 | 16.5 | 30 | F10/F14 |
| HQT160 | 1600 | 93/112 | Ø60 | 180 | 4.10/4.10 | 2.15/2.20 | 0.85/0.85 | 0.79/0.79 | 49.5 | 75 | F10/F16 |
| HQT200 | 2000 | 93/112 | Ø65 | 180 | 4.10/4.10 | 2.15/2.20 | 0.85/0.85 | 0.79/0.79 | 49.5 | 75 | F10/F16 |
