Basic Info.
Model NO.
Q61(2)1(4)F
Type
Floating Ball Valve
Function
Blow-Down Valve
Temperature
High Temperature
Application
Industrial Usage, Water Industrial Usage, Household Usage
Size
1/2"-4"
Connection
Female/Male Thread
Seal Material Available
H/Y
Standard Available
GB, ANSI, etc.
Actuator Type
Double Acting/Spring Return
Transport Package
Shrink Film+Carton+Plywood Case
Specification
CE, ISO9001
Trademark
Autorun
Origin
Wenzhou, China
HS Code
8481804090
Production Capacity
100, 000/Year
Product Description

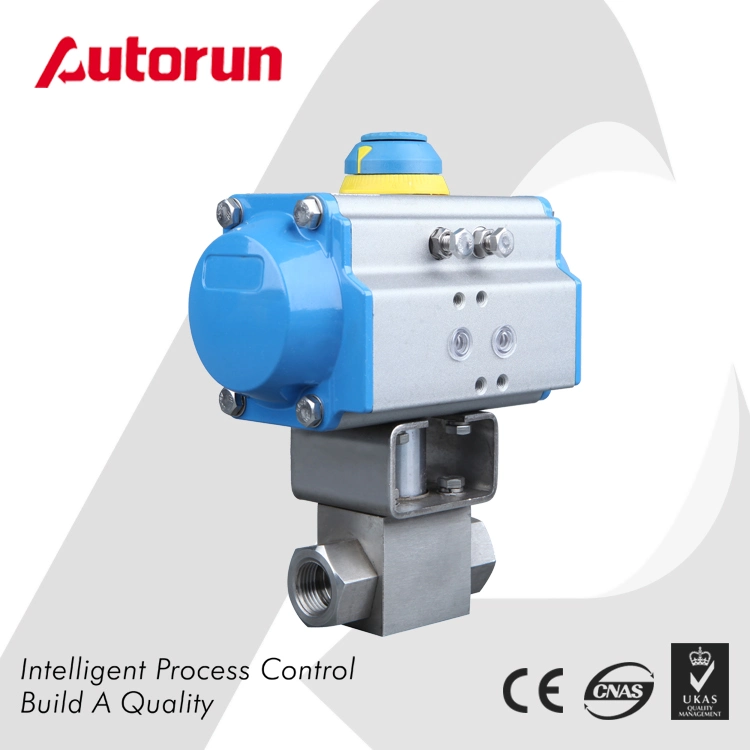

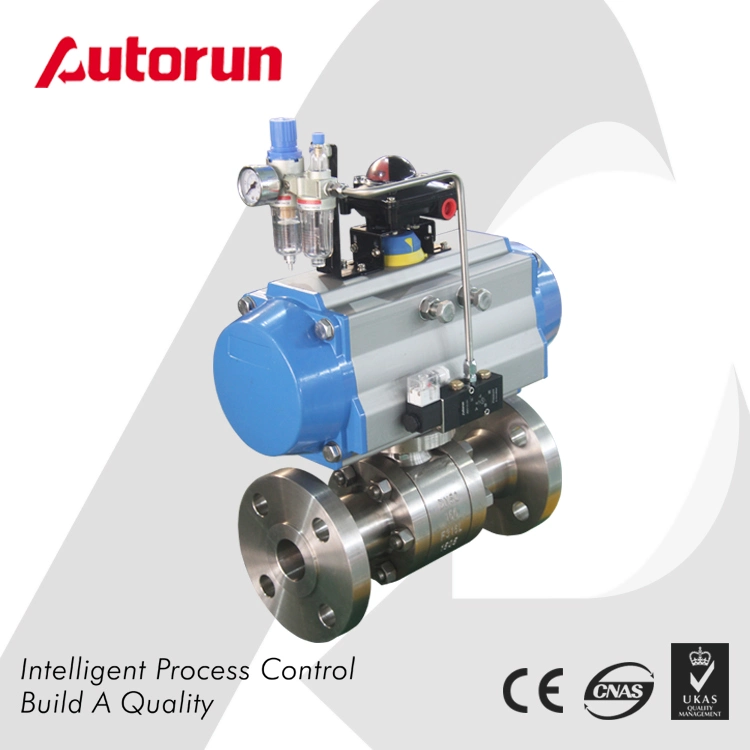

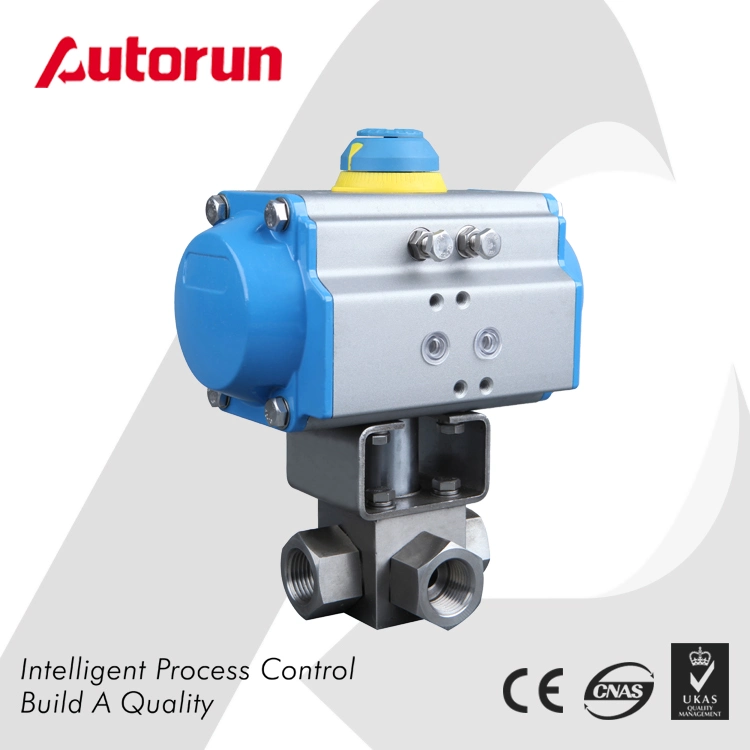

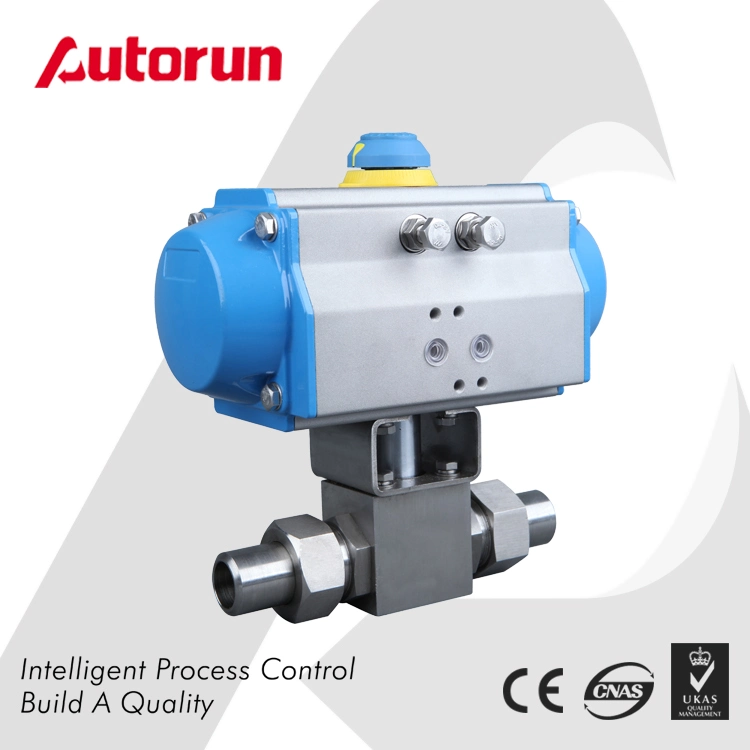

Pneumatic Actuated High Temperature Ball Valve
Actuator Features:
Welcome to contact us~
Actuator Features:
- Rack & pinion design
- Compact and light weight
- ISO 5211 mounting pattern
- Adjustable stops for both open and closed positions
- Accessory mounting dimensions to NAMUR specifications
- Machined gear teeth provide longest life and smoother operation
- High cycle life with low friction bearings on all moving and sliding surfaces
- Safety contained springs prevent hazards of inadvertent ejection during maintenance
- Modular design utilizing same body and end caps for both double-acting and spring-return versions
- Corrosion resistant with hard anodized body, PTFE coated end caps, and stainless steel fasteners
Actuator Specifications
| Pressure Range: Max. Working pressure 10bar |
| Air pressure: 2.5bar~8bar |
| Adjustment Range: 90° ± 5° |
| Ambient temperature: -20 ~ +90° C |
| Type: Double acting, Single acting (spring return) |
| Optional accessories: Solenoid valve, limite switch, electric position, air regulator |
| Lubrication: All the moving parts are coated with lubricants, extending their service life |
| Life Time: One million time |
Welcome to contact us~
