Basic Info.
Model NO.
EV10230
Connection Form
Tubular
Type
Pilot Operated
Material
Steel
Pressure
Ordinary Pressure
Valve Structure
Pilot Piston Structure
Power Supply
DC Solenoid Valve
Usage
Flow Control
Standard
DIN
Voltage
220V/380V
Transport Package
Carton Packing
Specification
DN15-DN100
Trademark
XT
Origin
Changzhou
HS Code
8481802190
Production Capacity
5000set/Month
Packaging & Delivery
Package Size
48.50cm * 43.50cm * 44.50cm
Package Gross Weight
20.000kg

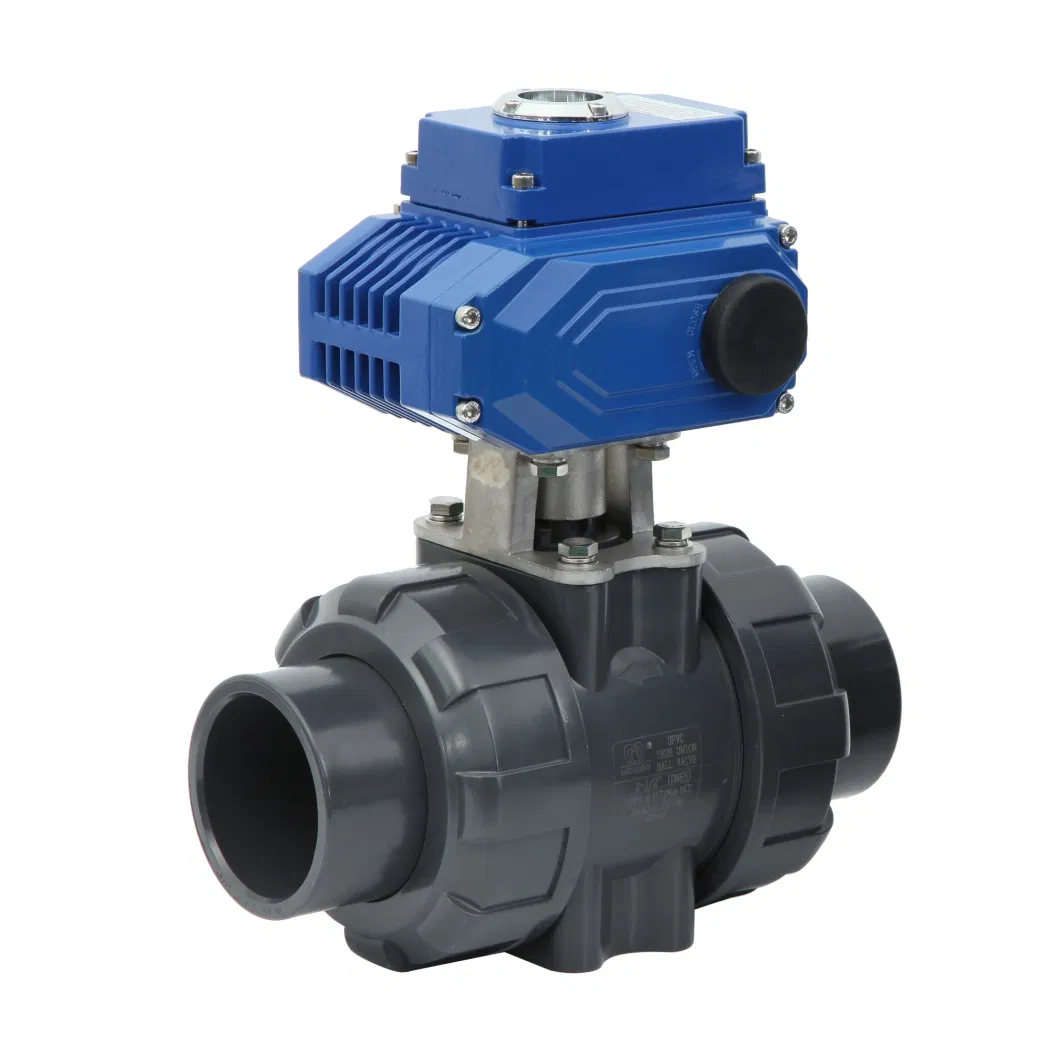

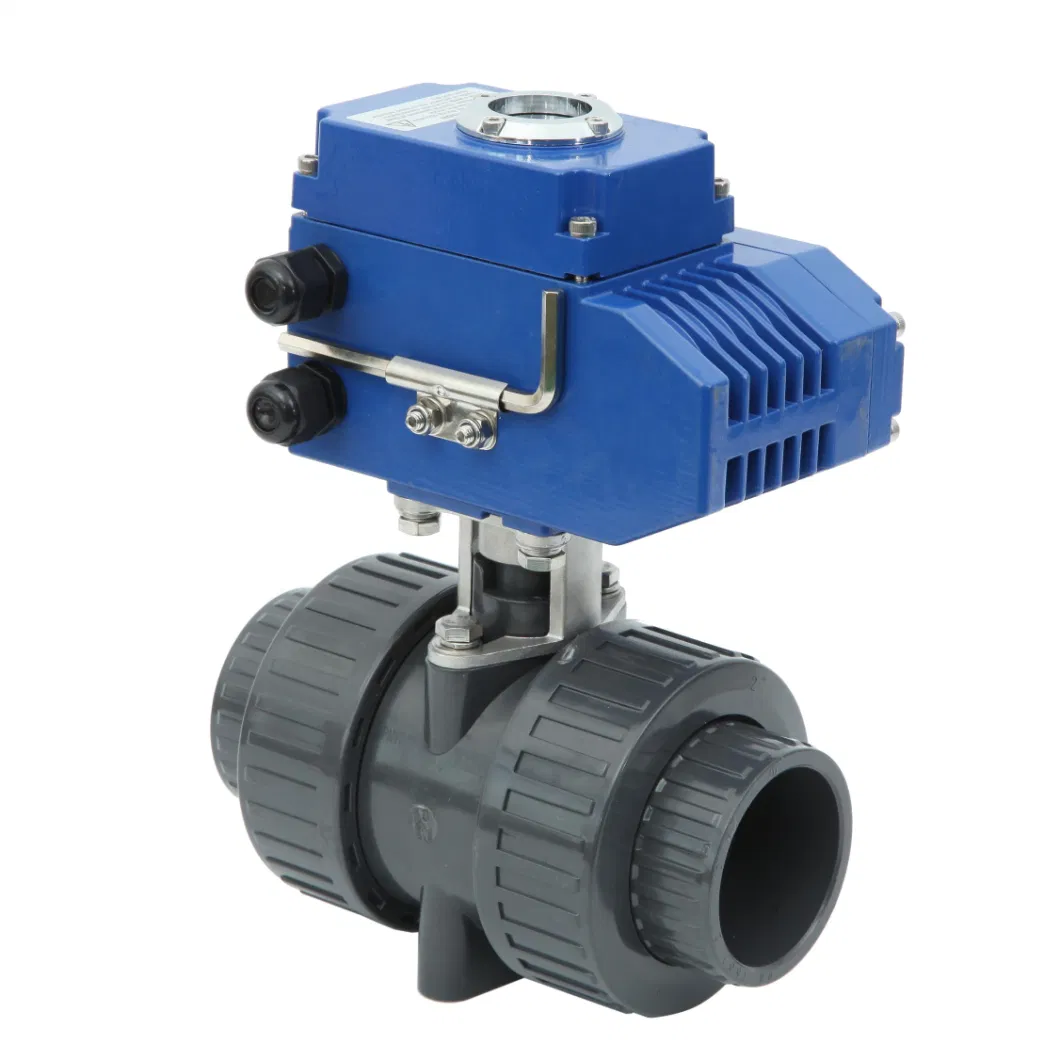

Product Description
Size: 1/2"~4
Internal diameter:1/2"~4"
Rated Voltage: DC12V/DC24V, AC/DC110-230
Working current: less than 800MA
Open/close time: less than 15S
Life time: 100000 times
Manual override: NO
Indicator: YES
Max. working pressure: 1.0MPa
Actuator material: Engineering Plastics
Sealing material:EPDM & PTFE
Body: PVC
Max. torque force: 10 Nm
Cable length: 50cm
Actuator rotation: 90 degree
Liquid temperature: 2 Celsius-90 Celsius
Environment temperature: -15 Celsius-50 Celsius
Protection class: IP67
