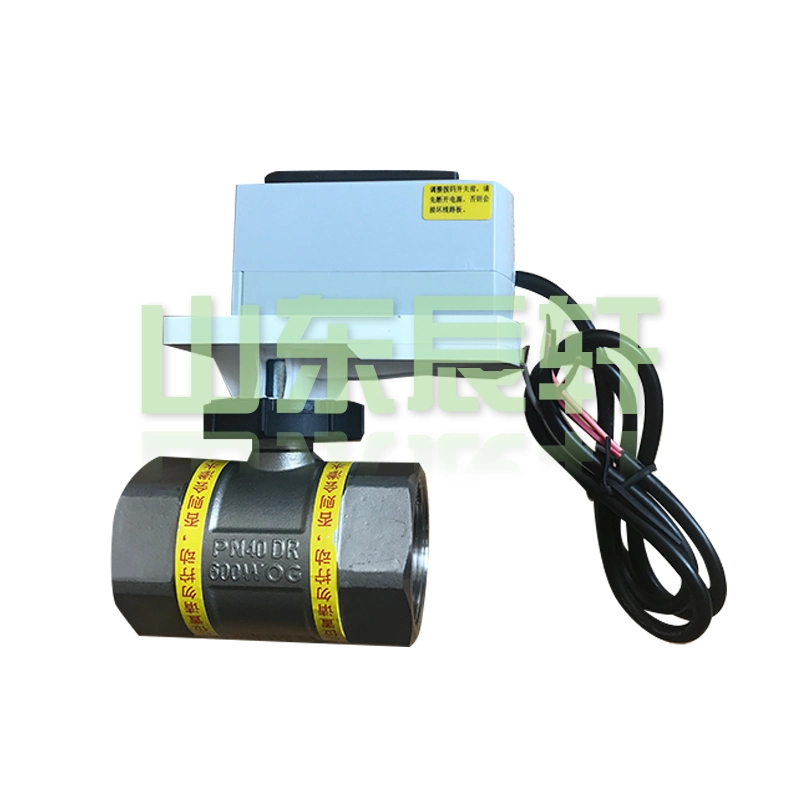

China Manufacturer Double True Union Motor Operated Motorized Electric Actuator Ball Valve

  Shandong Chenxuan Valve Manufacturing Co., Ltd. is a unit integrating engineering and trade with independent import and export rights. And focus on the company's own production of control valves with Siemens actuators, its performance is more stable and economical and durable. Including VF40 series water valve, VF45 series water vapor universal, VF53 series WCB cast steel control valve, VF61 series 304 / 316L stainless steel control valve, electric ball valve VG61, CXDW self-operated temperature control valve and other products, electric temperature control valve, proportional integral valve , Electric two / three-way valve, electric differential pressure bypass valve, electric regulating valve, dynamic balancing electric two-way valve, self-operated temperature control valve, temperature reducing and pressure reducing device. Our company has perfect production equipment and years of production experience to better provide you with high quality products.

VG61  2-Way Electric ball valve

Product Highlights
Suitable for two / three-way threaded ball valves from DN20 to DN50;
Hysteresis clutch motor and locked rotor will not burn the motor;
Manual adjustment function;
Analog-adjusted (DC 0-10 V) or three-position control ball valve is suitable for the angular stroke actuator of valve BS878 series ball valve;
Working voltage: AC 24V;
Positioning signal: three-digit floating point, with 0.9m long wire.


Image	Actuator
	control signal	3-P AC 24V		GD31.9E		GL31.9E
		0-10V AC 24V		GD61.9E		GL61.9E
	Full travel time			150s		150s
	Nominal angle / Maximum angle			90°/95°±2°		90°/95°±2°
	90 ° corner running time			90s		150s(50Hz)125s(60Hz)
	Torque value			5Nm		10Nm
	Spring return function			no		no
	Wiring cable			0.9m		0.9m
Valve model	DN(mm)	Rp(inch)	KVS(M³/h)	△Ps(kpa)	△Pmax(kpa)	△Ps(kpa)	△Pmax(kpa)
2-way				1400	350
VG61.20-2	DN20	Rp¾	4	1400	350
VG61.20-2	DN20	Rp¾	6.3	1400	350
VG61.20-2	DN25	Rp¾	10	1400	350
VG61.25-2	DN25	Rp1	6.3	1400	350
VG61.25-2	DN25	Rp1	10	1400	350
VG61.25-2	DN25	Rp1	16
VG61.32-2	DN32	Rp1¼	10			1000	350
VG61.32-2	DN32	Rp1¼	16			1000	240
VG61.32-2	DN32	Rp1¼	25			1000	240
VG61.40-2	DN40	Rp1½	16			800	350
VG61.40-2	DN40	Rp1½	25			800	240
VG61.40-2	DN40	Rp1½	40			800	240
VG61.50-2	DN50	Rp2	25			600	350
VG61.50-2	DN50	Rp2	40			600	240
VG61.50-2	DN50	Rp2	63			600	240
