Product Name
Gate Valve Electric Actuated
Transport Package
Plywooden Case
Specification
1" - 48"
Trademark
Fly
Origin
Zhejiang Province, China
HS Code
8481804090
Production Capacity
50000tons
Product Description
China Professional Valve Manufacturer Oil and Gas gate valve electric actuated
Features:
OS&Y, Rising Stem, Flexible Wedge Bolted Bonnet, Welded Seat Ring
Body material: Cast iron, WCB, WC6, WC9, CF8, CF8M, CF3, CF3M
Specification:
Pressure test: API 598
Design standard: API600 or API 6D
Face to face: ASTM/ANSI B16.10
Flange ends: ANSI B16.5
BW ends: ANSI B16.25
Pressure-Temp: ASTM/ANSI B16.34
Main Parts and Material:
| No. | Parts Name | Material |
| 1 | Body | A216 WCB |
| 2 | Seat Ring | A105+13Cr |
| 3 | Wedge | A216 WCB+13Cr |
| 4 | Stem | A182 F6 |
| 5 | Bonnet Bolt | A193 B7 |
| 6 | Bonnet Nut | A194 2H |
| 7 | Gasket | SS304+Graphite |
| 8 | Bonnet | A216 WCB |
| 9 | Bock seat bushing | A182 F6 |
| 10 | Stem packing | Graphite |
| 11 | Gland | A182 F6 |
| 12 | Gland flange | A216 WCB |
| 13 | Gland Nut | A194 2H |
| 14 | Pin | 45 |
| 15 | Gland Eyebolt | A193 B7 |
| 16 | Yoke | A216 WCB |
| 17 | Stem Nut | ZCuA110Fe3 |
| 18 | Oil Cup | |
| 19 | Bearing | |
| 20 | Retaining Nut | AISI 1035 |
| 21 | Handwheel | Ductile Iron |
| 22 | H.W.Lock Nut | AISI1035 |

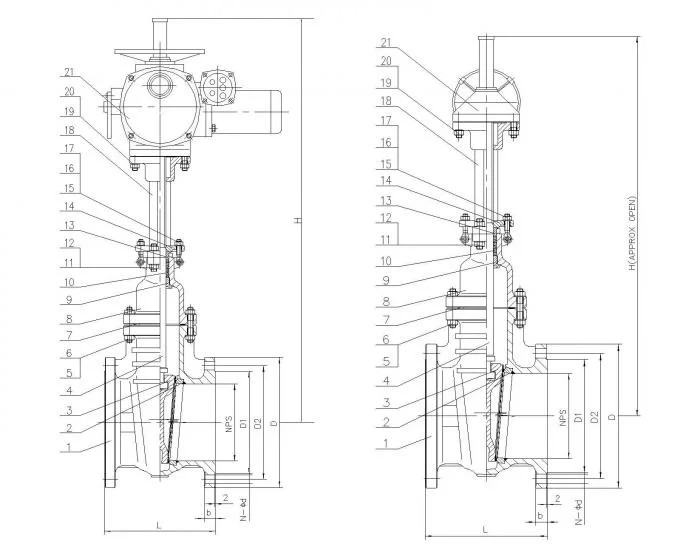

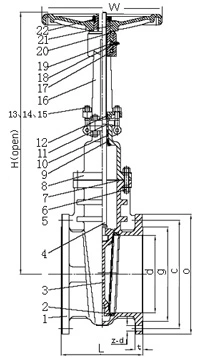

Dimension and Weight:
| Size | d (mm) | L | H | W | o | c | g | t | z-d1 | Weight (KG) |
| 150LBS | ||||||||||
| 2″ | 50 | 178 | 400 | 200 | 152 | 120.5 | 92 | 16 | 4-φ19 | 19 |
| 2-1/2″ | 65 | 190 | 451 | 200 | 178 | 139.5 | 105 | 18 | 4-φ19 | 29 |
| 3″ | 80 | 203 | 514 | 254 | 190 | 152.5 | 127 | 19 | 4-φ19 | 33 |
| 4″ | 100 | 229 | 597 | 279 | 229 | 190.5 | 157 | 24 | 8-φ19 | 47 |
| 6″ | 150 | 267 | 775 | 298 | 279 | 241.5 | 216 | 26 | 8-φ22 | 76 |
| 8″ | 200 | 292 | 972 | 349 | 343 | 298.5 | 270 | 29 | 8-φ22 | 120 |
| 10″ | 250 | 330 | 1175 | 400 | 406 | 362 | 324 | 31 | 12-φ25 | 190 |
| 12″ | 300 | 356 | 1384 | 451 | 483 | 432 | 381 | 32 | 12-φ25 | 290 |
| 14″ | 350 | 381 | 1562 | 502 | 533 | 476 | 413 | 35 | 12-φ29 | 265 |
| 16″ | 400 | 406 | 1740 | 597 | 597 | 540 | 470 | 37 | 16-φ29 | 456 |
| 18″ | 450 | 432 | 1943 | 673 | 635 | 578 | 533 | 40 | 16-φ32 | 712 |
| 20″ | 500 | 457 | 2172 | 749 | 699 | 635 | 584 | 43 | 20-φ32 | 860 |
| 24″ | 600 | 508 | 2565 | 749 | 813 | 749.5 | 692 | 48 | 20-φ35 | 1175 |
| 300LBS | ||||||||||
| 2″ | 50 | 216 | 419 | 200 | 165 | 127 | 92 | 23 | 8- φ19 | 29 |
| 2-1/2″ | 65 | 241 | 470 | 200 | 190 | 149 | 105 | 26 | 8- φ22 | 37 |
| 3″ | 80 | 283 | 537 | 254 | 210 | 168.5 | 127 | 29 | 8- φ22 | 49 |
| 4″ | 100 | 305 | 619 | 279 | 254 | 200 | 157 | 32 | 8- φ22 | 69 |
| 6″ | 150 | 403 | 806 | 349 | 318 | 270 | 216 | 37 | 12- φ22 | 137 |
| 8″ | 200 | 419 | 994 | 400 | 381 | 330 | 270 | 42 | 12- φ25 | 235 |
| 10″ | 250 | 457 | 1203 | 454 | 445 | 387.5 | 324 | 48 | 16- φ29 | 315 |
| 12″ | 300 | 502 | 1416 | 502 | 521 | 451 | 381 | 51 | 16- φ32 | 460 |
| 14″ | 350 | 762 | 1638 | 579 | 584 | 514.5 | 413 | 54 | 20- φ32 | 650 |
| 16″ | 400 | 838 | 1918 | 673 | 648 | 571.5 | 470 | 58 | 20- φ35 | 950 |
| 600LBS | ||||||||||
| 2″ | 50 | 292 | 432 | 203 | 165 | 127 | 92 | 26 | 8- φ19 | 40 |
| 2-1/2″ | 65 | 330 | 486 | 254 | 190 | 149 | 100 | 29 | 8- φ22 | 50 |
| 3″ | 80 | 356 | 546 | 305 | 210 | 168 | 127 | 32 | 8- φ22 | 70 |
| 4″ | 100 | 432 | 648 | 356 | 273 | 216 | 157 | 38 | 8- φ25 | 120 |
| 6″ | 150 | 559 | 800 | 457 | 356 | 292 | 216 | 48 | 12- φ29 | 265 |
| 8″ | 200 | 660 | 1029 | 559 | 419 | 349 | 270 | 56 | 12- φ32 | 400 |
| 10″ | 250 | 787 | 1270 | 610 | 508 | 432 | 324 | 64 | 16- φ35 | 700 |
| 12″ | 300 | 838 | 1486 | 711 | 559 | 489 | 381 | 67 | 20- φ35 | 955 |
| 900LBS | ||||||||||
| 2″ | 50 | 368 | 547 | 250 | 216 | 165 | 92 | 38.5 | 8- φ26 | 90 |
| 2-1/2″ | 65 | 419 | 700 | 300 | 244 | 190.5 | 105 | 41.5 | 8- φ26 | 110 |
| 3″ | 80 | 381 | 648 | 350 | 241 | 190.5 | 127 | 38.5 | 8- φ26 | 123 |
| 4″ | 100 | 457 | 729 | 450 | 292 | 234.9 | 157 | 44.5 | 8- φ32 | 148 |
| 6″ | 150 | 610 | 1041 | 500 | 381 | 317.5 | 216 | 56 | 12- φ32 | 420 |
| 8″ | 200 | 737 | 1260 | 600 | 470 | 393.7 | 270 | 63.5 | 12- φ39 | 650 |
| 10″ | 250 | 838 | 1590 | 750 | 545 | 469.9 | 324 | 70 | 16- φ39 | 1160 |
| 12″ | 300 | 965 | 1795 | 850 | 610 | 533.4 | 381 | 79.5 | 20- φ39 | 1700 |
| 14″ | 350 | 1029 | 2025 | 850 | 640 | 558.8 | 413 | 86 | 20- φ42 | 2300 |
| 16″ | 400 | 1130 | 2170 | 960 | 705 | 615.9 | 470 | 89 | 20- φ45 | 2750 |
