Model NO.
4V/3V 100, 4A/3A 100
Pressure
High Pressure
Brand
Xcpc
Work Temperature
Normal Temperature
Material
Aluminum
Working Medium
40 Filtered Air
Motion Pattern
Inner Guide Type
Working Pressure
0.15~0.8MPa
Temperature Range
5~50
Protection Class
IP65
Trademark
XCPC
Origin
China
Production Capacity
10000pieces/Month
Packaging & Delivery
Package Size
7.00cm * 3.00cm * 13.00cm
Package Gross Weight
0.500kg
Product Description

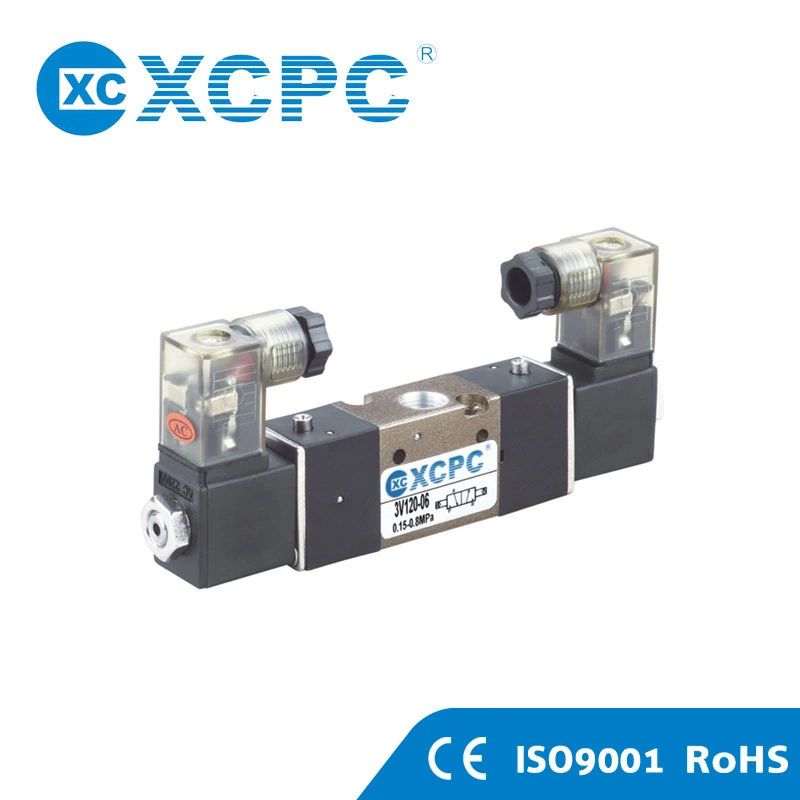

4V/3V, 4A/3A Solenoid/Pneumatic Control Valve
1.Ordering Code
2.Specification
3.Overall Dimension
1.Ordering Code
2.Specification
| Model | 4V110-M5 | 4V120-M5 | 4V130C-M5 | 4V130E-M5 | 4V130P-M5 | 4V110-06 | 4V120-06 | 4V130C-06 | 4V130E-06 | 4V130P-06 |
| 4A110-M5 | 4A120-M5 | 4A130C-M5 | 4A130E-M5 | 4A130P-M5 | 4A110-06 | 4A120-06 | 4A130C-06 | 4A130E-06 | 4A130P-06 | |
| Position and Way NO. | Two-position Five-way | Three-position Five-way | Two-position Five-way | Three-position Five-way | ||||||
| Effective Sectional Area | 10mm²(CV=0.56) | 7mm²(CV=0.40) | 12mm²(CV=0.67) | 9mm²(CV=0.5) | ||||||
| Model | 3V110-M5 | 3V120-M5 | 3A110-M5 | 3A120-M5 | 3V110-06 | 3V120-06 | 3A110-06 | 3A120-06 | ||
| Position and Way NO. | Two-position Five-way | Two-position Five-way | ||||||||
| Effective Sectional Area | 10mm²(CV=0.56) | 12mm²(CV=0.67) | ||||||||
| Joint Pipe Bore | Air Inlet=Air Outlet=Exhaust=M5x0.8 | Air Inlet=Air Outlet=Exhaust=G1/8" | ||||||||
| Working Medium | 40 Micron Filtered Air | |||||||||
| Motion Pattern | Inner Guide Type | |||||||||
| Working-Pressure | 0.15~0.8MPa | |||||||||
| Max.Pressure Resistance | 1.2MPa | |||||||||
| Operating Temperature | 5~50ºC | |||||||||
| Voltage Range | ±10% | |||||||||
| Power Consumption | AC:2.5VA DC:2.5W | |||||||||
| Insulation & Protection Class | F CIass.IP65 | |||||||||
| Wiring Form | Lead Wire or Connector type | |||||||||
| Highest Action Frequency | 5 Cycle / Second | |||||||||
| Shortest Excitation time | 0.05 Second | |||||||||
3.Overall Dimension
Customized pneumatic components XCPC pneumatic is the ideal solution for custom pneumatic components because of its ability to be 100% customizable to your business' processes and operations. XCPC pneumatic specialize in design, custom and manufacture pneumatic components, including pneumatic cylinders, pneumatic actuators, air source treatment(FRL), fluid solenoid valves, directional valves, pneumatic fittings as well as PU/PE/NY tubes. Choose from our product categories above to get started! If you have any specific needs for your new project, feel free to contact us. We are always here to support you ! |
