Compact Pneumatic Actuator Scotch Yoke or Rack and Pinion Piston Type
Introducing our high-performance {Pneumatic Actuator} line, featuring precision engineering and durable construction. Manufactured in our state-of-the-art factory for reliability.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Specifications:
Overview

Basic Info.

Model NO.
HG series
Acting Type
Spring Return
Material
Aluminum or Ss
Customized
Customized
Structure
Rack and Pinion
Specification
00150-090mm
Trademark
HES
Origin
China
HS Code
841231

Product Description

AT series pneumatic actuator


Specifications:




Size: 32mm to 270mm
Body: Anodised Aluminium or Stainless steel
Actuation: Spring Return
Air Supply: 2.5-8.0bar
Diameter: 50-330mm
Rotary Angle: 90°±5°
Operating Temp.:

   ST: NBR O-ring       -20ºC -- 80ºC
   HT: FPM O-ring       -15ºC --150ºC
   LT: Silicon O-ring       -40ºC -- 80ºC

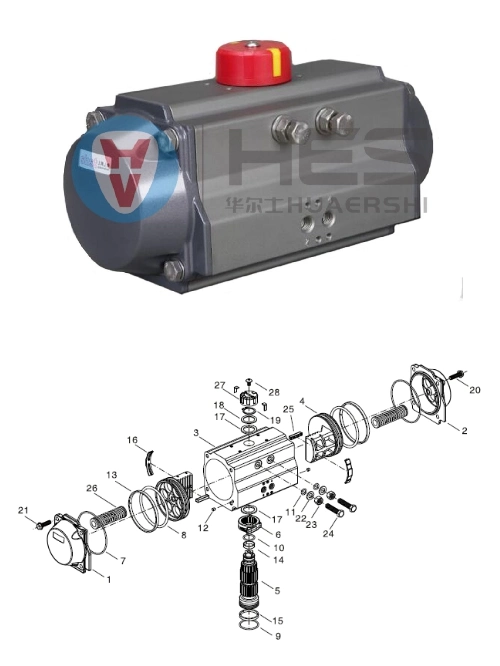

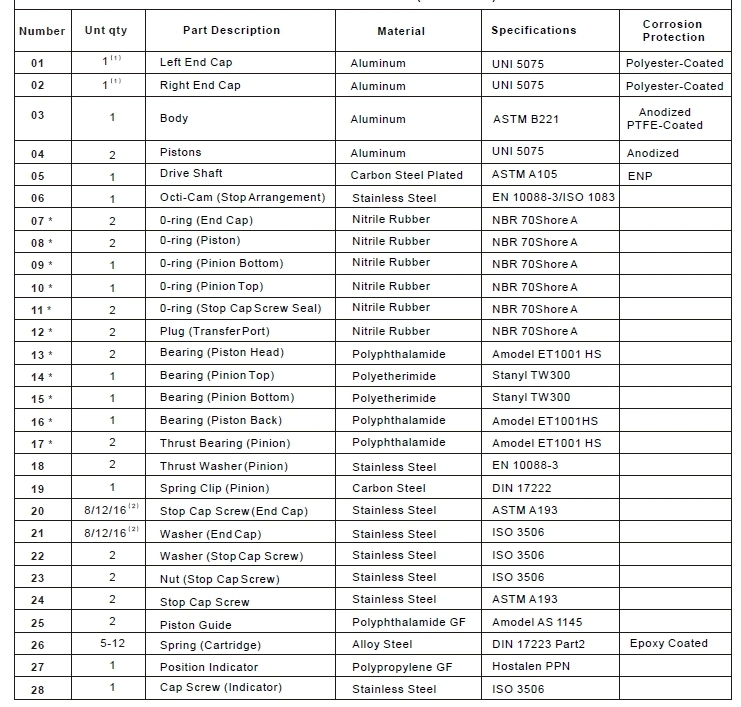

Part List:
Compact Pneumatic Actuator Scotch Yoke or Rack and Pinion Piston Type

Compact Pneumatic Actuator Scotch Yoke or Rack and Pinion Piston Type


HES Q&A:
1: Are you a factory or a trading company?
   We are a facory
2: Which country do you export to?
   We can export to any country according to buyer's need
3: Do you accept the customized order?
   YES!
4: What advantages do you have?
   Our factory starts from 1989. We are the first pneumatic factory of wenzhou(the valve city of China).
   We can promise the good quality of actuator and give you the reasonable factory price.
5: Will you responsible for the installation of valve and actuator?
   YES! If you give us a decent order, it will be free.

Compact Pneumatic Actuator Scotch Yoke or Rack and Pinion Piston Type
