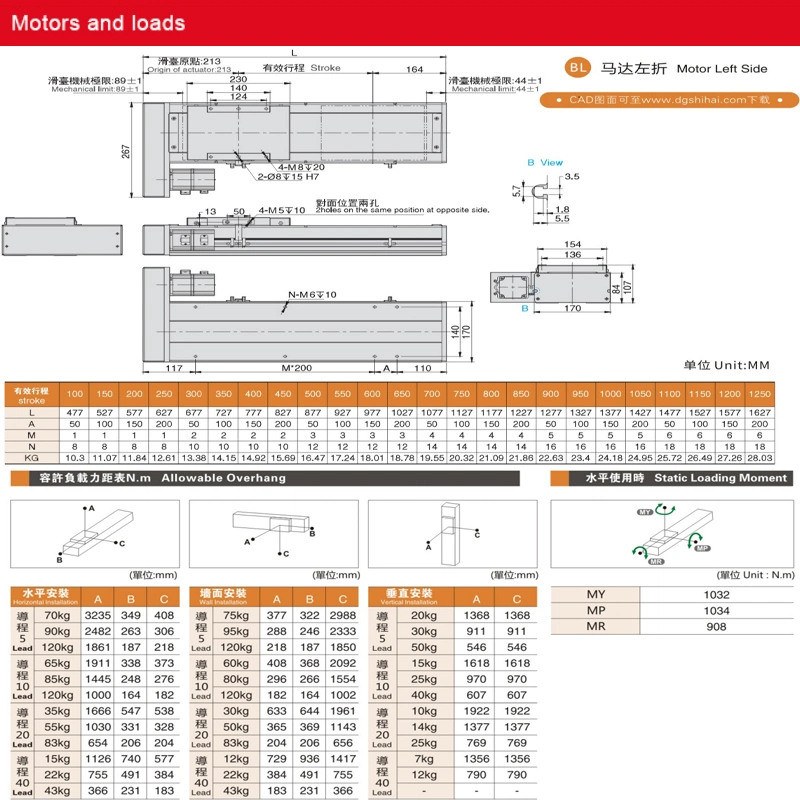

- Motors & Loads
- Linear Stage

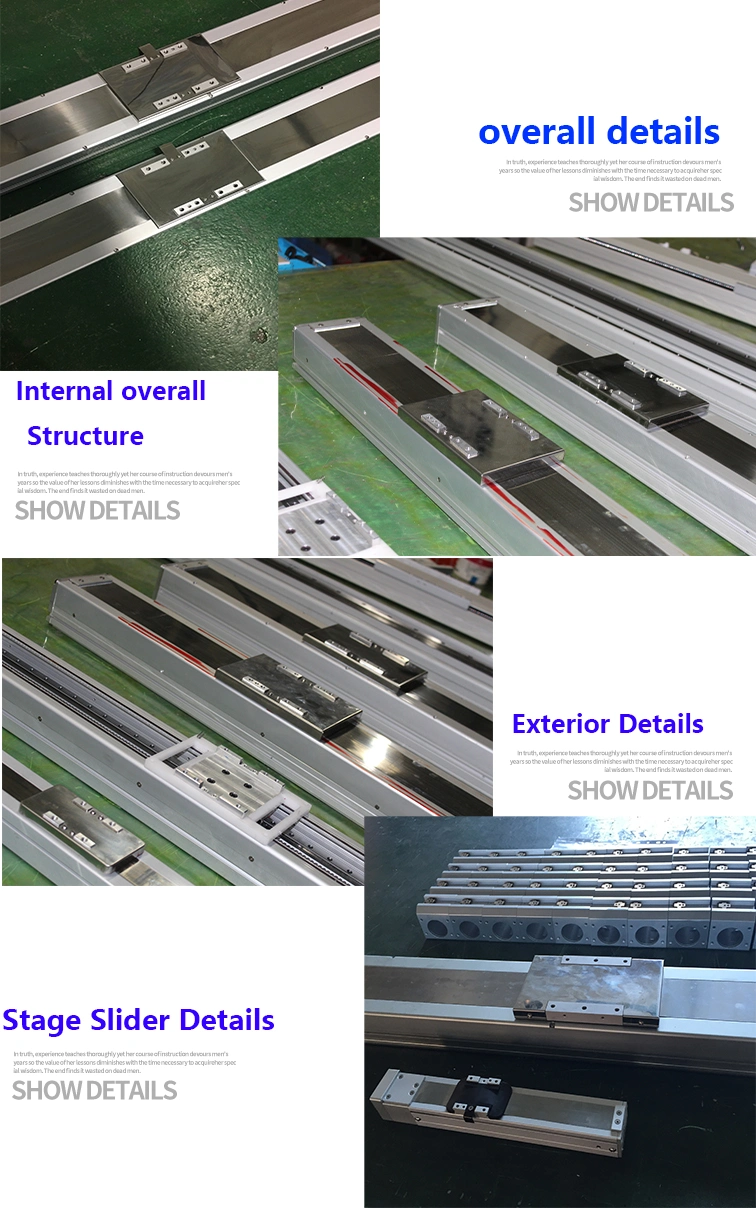

- Details Images

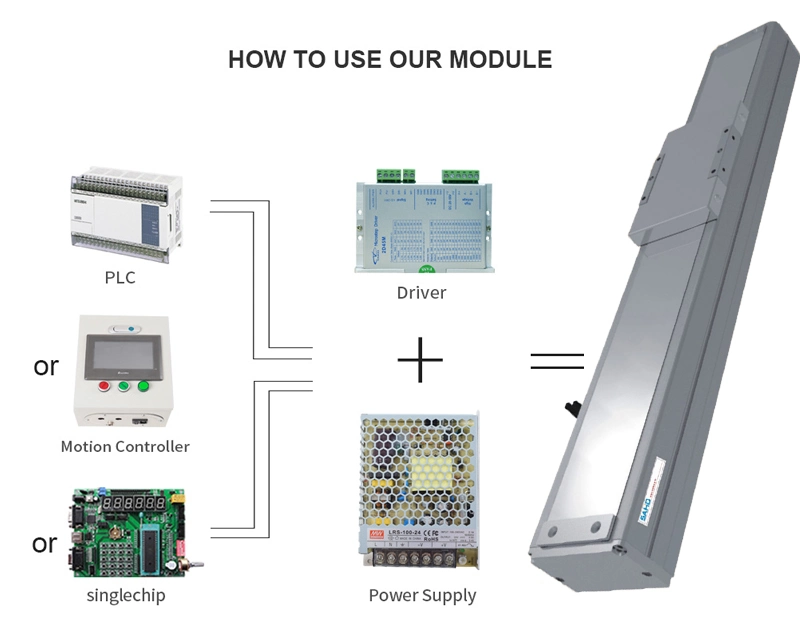

- How to use

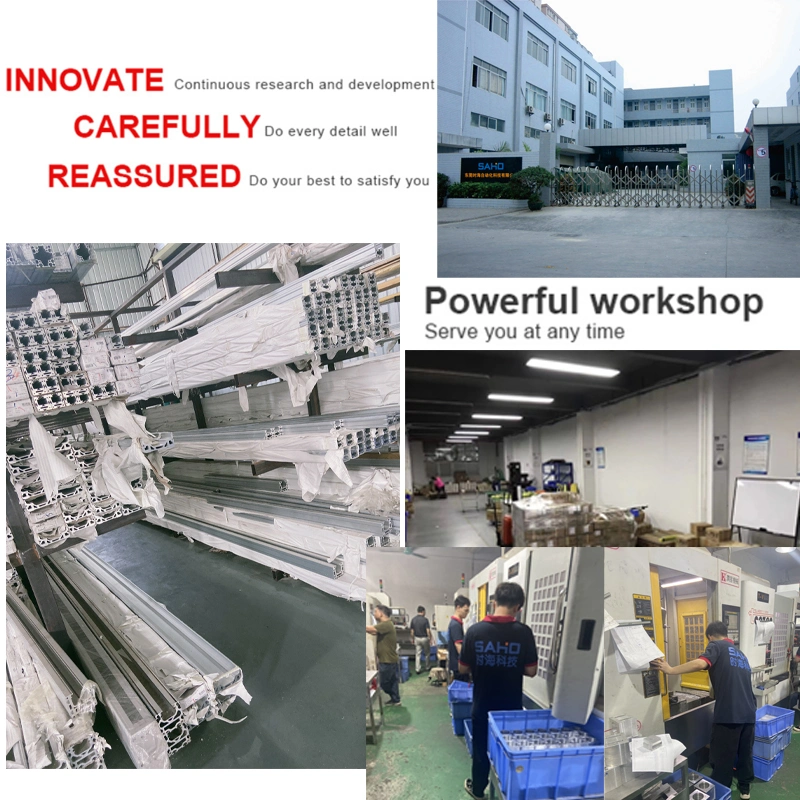

- Company Profile

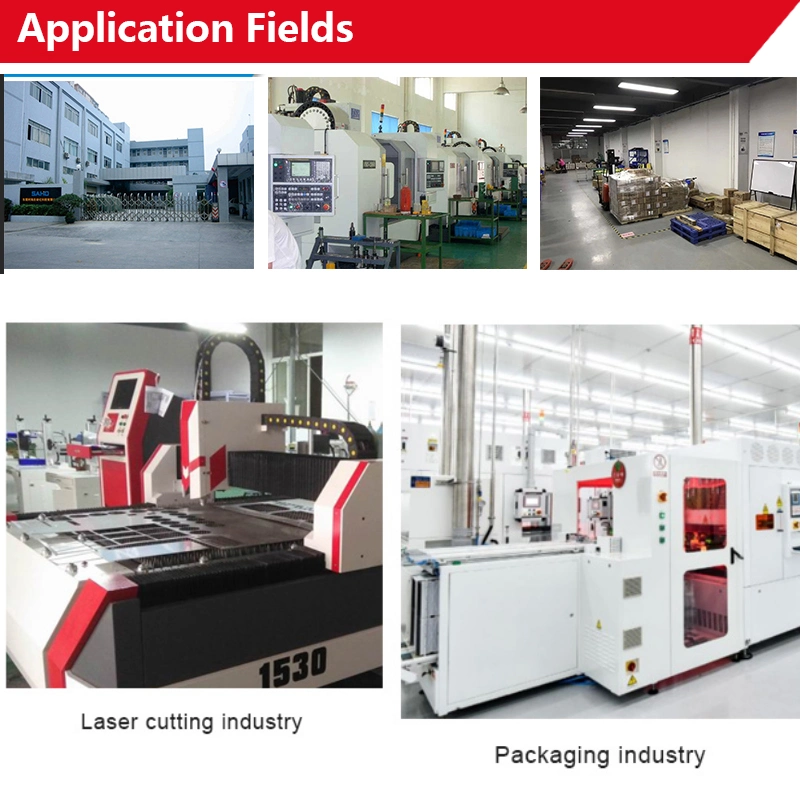

- Application Fields
- Packing & Delivery
Basic Info.
Model NO.
SCH170
Horizontal Load Weight (Kg)
50-120kg
Vertical Load Weight (Kg)
10-50kg
Screw Lead(mm)
5-40mm
Positioning Precision
0.01-0.02mm
Packing
Standard Wooden Packing
Transport Package
Wooden Box Package
Specification
composite board
Trademark
none
Origin
Dongguan City, Guangdong Province
HS Code
8487900000
Production Capacity
1000
Packaging & Delivery
Package Size
175.00cm * 40.00cm * 40.00cm
Package Gross Weight
65.000kg
Product Description
Dongguan SAHO is loo king for OEM and ODM agents to accept OEM and ODM orders~

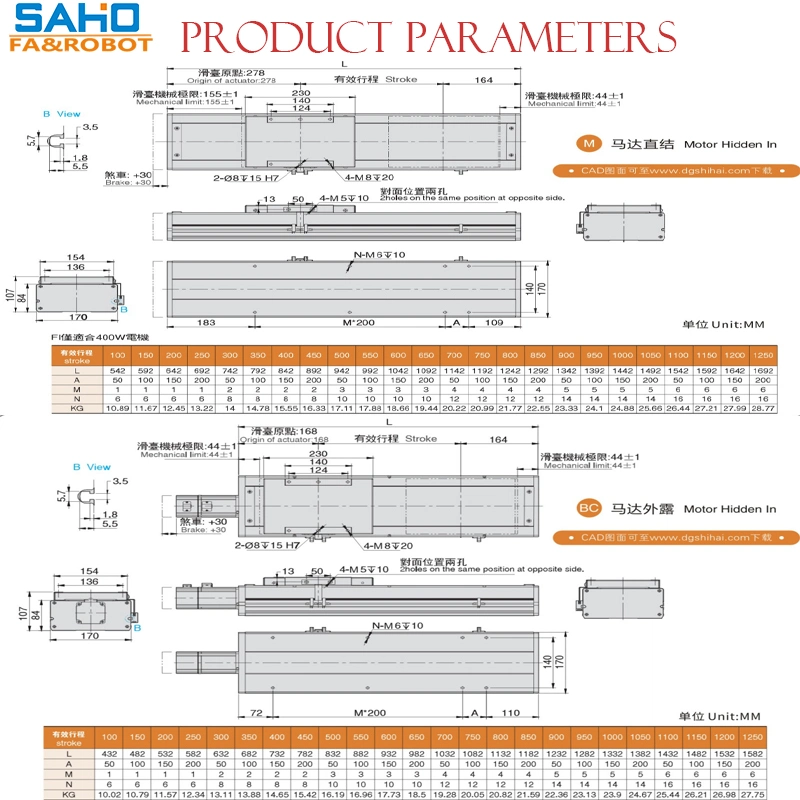

| Product Name | SCH170 Screw module | ||||
| Position repetition accuracy(mm) | ±0.01 | ||||
| Top speed(m/s) | 250 | 500 | 1000 | 1600 | |
| Maximum carrying weight | Horizontal use(kg) | 120 | 120 | 83 | 50 |
| Vertical use(kg) | 50 | 40 | 25 | 10 | |
| Used | machinery manufacturing, electronics, semiconductors, automotive, optoelectronic, medical treatment,aviation,construction,home appliances,factory automation and other fields. | ||||
| Packing | Standard wooden packing | ||||
| Shipping Method | By air, by ship, by train | ||||
Customized Motorized SCH170 CNC Ball Screw Linear Actuator with 2m/S Maximum Load 120kg Linear Module

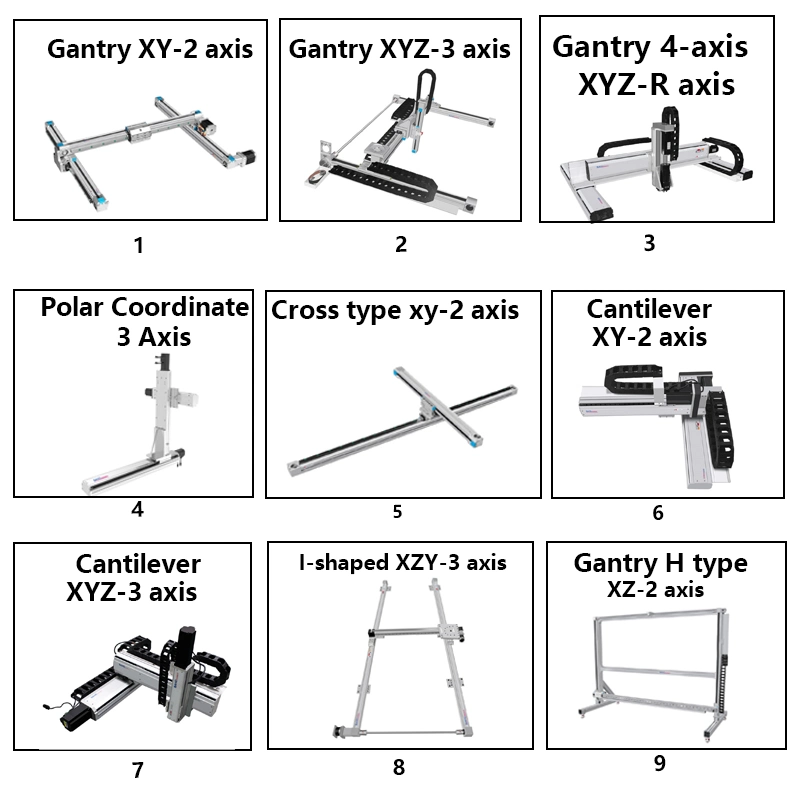

SAHO Technology Automation Co.,Ltd. mainly includes single axis mechanical arm,screw electric sliding table, synchronous belt electric module, European electric cylinder, sealed and dustproof electric sliding table,rack type sliding table,super long stroke sliding table, Cartesian coordinate robot, Gantry robot, five-axis manipulator, multi-axis industrial robot and automation machinery equipment etc.
Question 1: can I order samples with my own design and logo?
Certainly. We can do it according to your request.
Question 2: what is the price of the sample?
A2: if we have samples in stock, a similar sample can be sent to you by freight collect.
If you need your own design, you need $500 / style / color / size, and the freight will be charged according to your
requirements.But it is
Question 3: how long does it take for samples and mass production?
A3: OEM sample time is about 20-30 days after design confirmation.
Question 4: do you support inspection services?
A4: Yes. We have our own QC to provide inspection services for you. We support the inspection company designated by you to carry
out the inspection Goods.
Q5: how is the order process?
Price and payment arrangement - > confirmation of sample - > confirmation of batch payment - > A5 Production - > finished products
- > inspection (photos or physical objects) - > balance - > delivery - > after-sales service.
