Basic Info.
Model NO.
OMK-100/OMK-160/OMK-200/OMK-250
Protection Level
IP67
Voltage
220VAC/100VAC/50/60Hz
Environment Temperature
-30degree to 60 Degree
Torque
50nm-2500nm
Optional Features
Dehumidification Heater
Installation Angle
360 Degree at Any Angle
Time
20s-75s
Transport Package
Wooden Case
Specification
2.5kg
Trademark
FRY
Origin
Tianjin, China
HS Code
850151
Production Capacity
10000 Piece/Month
Packaging & Delivery
Package Size
35.00cm * 25.00cm * 20.00cm
Package Gross Weight
2.500kg
Product Description

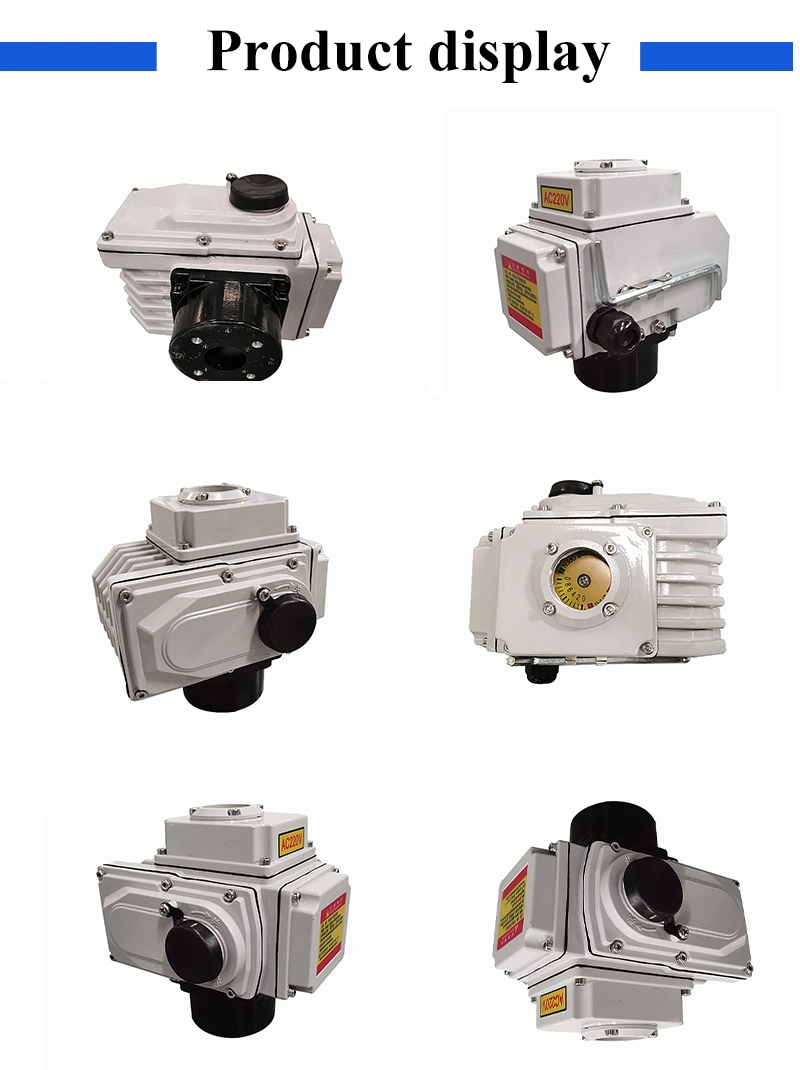

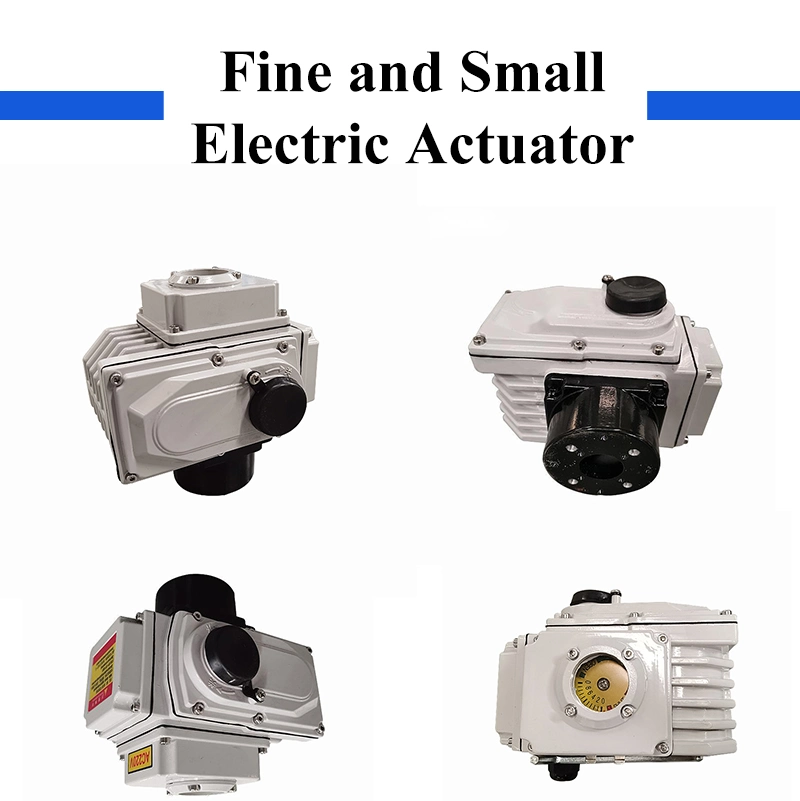

FRY series electric actuator are used to control 0-90° rotation valve and other similar products such as butterfly valve, ball valve, throttle plug valve, louver valve, etc . It uses AC24V, 110V, 220V , 380V , and DC 24V voltage to be the driving source, 4-20mA current signal or 0-10V voltage signal to the controlling signal driving the valve to the required position, so that realized the automation control. They can be widely usedin petroleum, chemical,electric power, metallurgy, papermaking, water treatment, shipbuilding , food processing and building automation.At the same time, it has the advantages of small size, light weight , beautiful appearance , unique structure , compact structure, quick opening and closing, easy installation , small operating torque, convenient operation, no need for maintenance and safe and convenient use of digital display valve position.
