Basic Info.
Model NO.
UPVC
Structure
2 Way Ball Valve
Type
Swimming Pool Water 2 Way 3 Way PVC Motorized Ball
Function
Atmospheric Valve
Temperature
Normal Temperature
Standard
Bsp NPT Thread
Application
General
Transport Package
Export Seaworthy Package
Specification
DN15-DN100
Trademark
JEVETEC
Origin
China

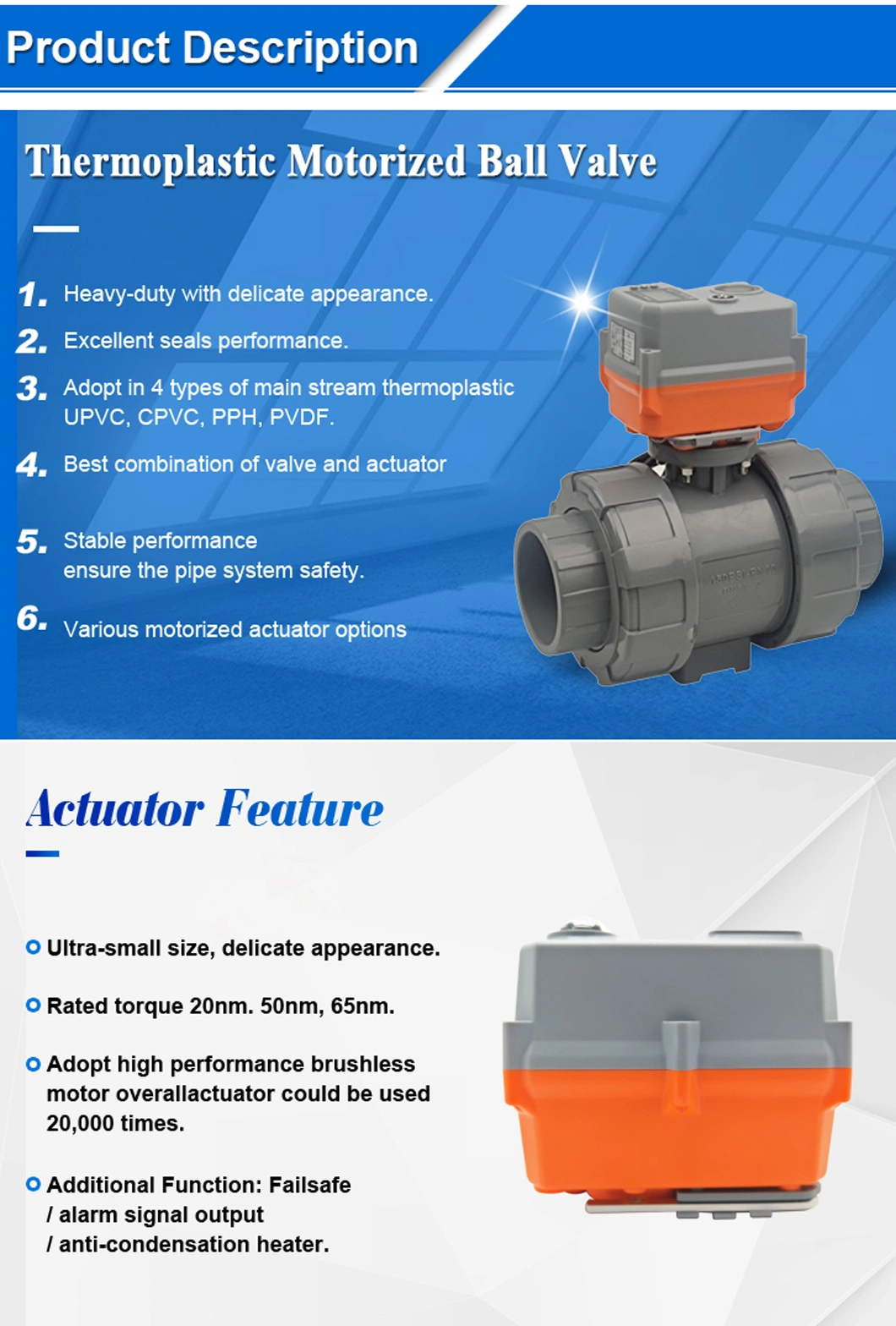

Product Description
Product Features
- Good quality. Factory inspection to ensure no leaks
- Full port design (DN15 to DN100)
- PTFE seat
- Ball carrier system that lets you micro-adjust ball seats and minimize the axial force effect.
- Replaces valve/tee connection combinations
- High surface finish PVDF stem half-embedded square stainless shaft with double O-Ring guarantees solid and reliable actuator torque transmission to the ball.
- PC+ABS housing material and anti-explosive level.
- Adopting High performance brush less motor.long life span
- Radial dismounting valve body (True Union) made for PVC-C injection moulding equipped with built-in bores for actuation.
This valve is constructed from CPVC (Chlorinated Polyvinyl Chloride), a material known for its excellent chemical resistance, comparable to that of PVC. What sets CPVC apart is its ability to handle hot corrosive liquids with ease, making it ideal for service temperatures up to 180°F (82°C) for long-term applications, and 110°C (230°F) for temporary conditions.
