Basic Info.
Model NO.
Q611F series pneumatic actuator ball valve
Driving Mode
Pneumatic
Nominal Pressure
PN1.0-32.0MPa
Channel
Straight Through Type
Structure
Fixed Ball Valve
Type
Fixed Ball Valve
Function
Atmospheric Valve
Temperature
Normal Temperature
Application
Industrial Usage, Water Industrial Usage, Household Usage
Thread Size
1/2"~4" Pneumatic Actuator Ball Valve
Medium Pressure
0~16bar
Body Material
Stainless Steel 304 or 316
Feature
on-off Type
Medium
Air, Water, Oil, Hot Water, Steam
Ball
Ss316
Steam
Ss316
Seal Ring
PTFE
Working Pressure
800psi~1000psi
Manufacturing Standard
GB, ISO, ANSI, BS
Transport Package
Cartons and Pallets
Specification
CE, ISO
Trademark
KLQD
Origin
China, Zhejiang
Production Capacity
50 of Pneumatic Actuator Ball Valve a Day
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
2.500kg
Product Description

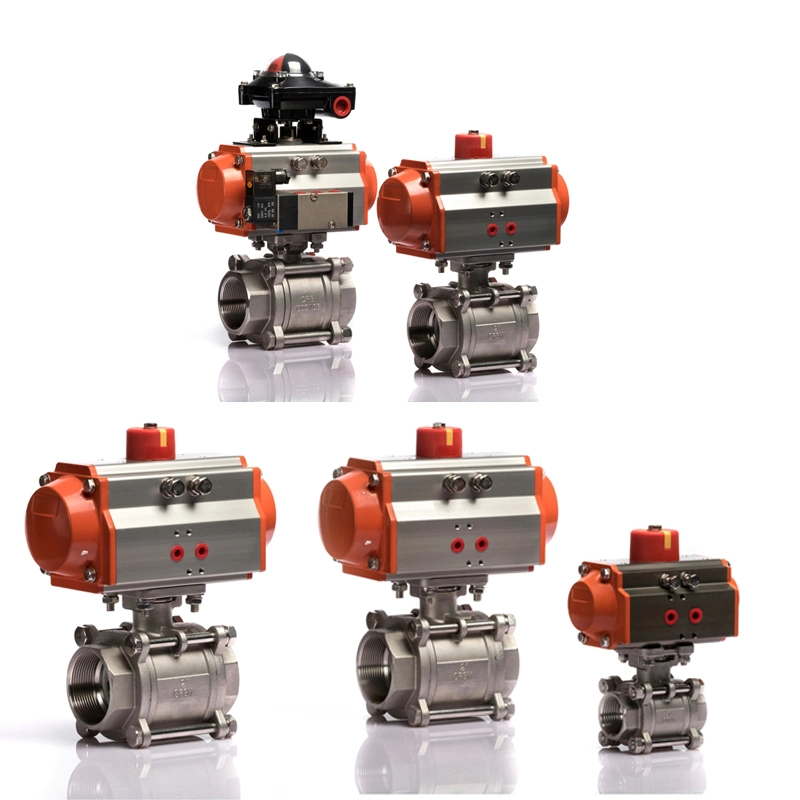

Double acting stainless steel pneumatic actuator ball valve
1. Actuator type: Double acting, also have single acting
2. Ball valve size: DN25 (ZG 1")
3. Thread standard: BSPT
4. Fluid: Air, Water, steam, water treatment
5. Pressure class: 1000WOG
6. Payment: L/C, Western Union or T/T
7. Mini order quantity: 1 piece
Basic information about Pneumatic actuator ball valve:
Actuator:
- Full conformance to the specifications of: ISO5211, DIN3337, VDI/VDE3845, NAMUR.
- The extruded high strength aluminum bodies are precision honed and hard anodized yielding an internal bore surface that can provide low coefficient of friction, smooth performance and a long service life.
- All acting surfaces are fitted with high quality bearings, resulting in low friction, quite and high cycle life.
- The two independent external travel stop adjustment bolts can easily and precisely adjust up to ±5º at both open and closed directions.
- Multifunction position indicator with NAMUR standard is convenient for mounting accessories.
- Pre-compressed load springs are convenient for safe mounting and disassemble operations.
- Die-casted aluminum pistons and end caps are high strength and light weight.
- Optional Viton and Silicone seals are available for low and high temperature applications.
| Valve body material | CF8 or CF8M |
| Fluid | Air, water, steam |
| Fluid pressure | 0~16bar |
| Actuator air pressure | 0.3~0.8MPa |
| Contacts | Skype: CaoxL090 |
Product details:
Packing: Expert export packing.
Samples:
About KAILNG PNEUMATIC COMPANY:
Ningbo Kailing Pneumatic Co., Ltd. is a leading Chinese company specializing in the manufacture of solenoid valves and pneumatic components.
High quality of the raw materials, the precision of the parts, the hard tests during and at the end of production are a warranty of reliability and features. Our real strength is to develop customised products to solve any requirement of utilisation. The production runs conforming to the rigorous ISO 9001/2000 requirements .The product range consists of solenoid valves, process valves,Air source treatment units etc ,which are found in a variety of industrial applications such as machinery, metallurgy, food, textile and waste treatment, single acting 2 way pneumatic actuator ball valve.
we keep creating new innovation to offer the best solutions for your fluid control requirements.
