Electric Actuated Globe Control Valve (GAZDLP)

Electric Actuated Globe Control Valve (GAZDLP)

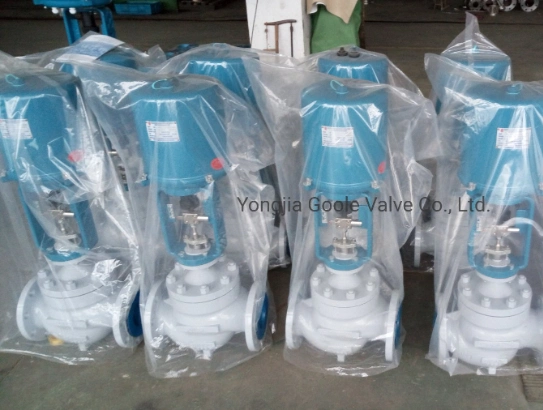

Electric Actuated Globe Control Valve (ZDLP):
  Regulating valve for regulating media flow, pressure and liquid level.According to the opening of regulatory signals, automatic control valves, so as to achieve medium flow, pressure and level of regulation.

Electric control valve is used to drive electric power and thus drive the valve actuator to control the flow, which is the industrial automation and process control is an important instrument of execution units. As the degree of automation industry increasing, more and more being used in various industrial fields. Electric control valve with conventional pneumatic control valve has obvious advantages: saving (only consume energy when working), environmental (carbon emissions), quick and easy installation (no complex pneumatic piping and pump stations), working power supply: AC22V 380V and other voltage levels.

Electric control valve signal received by the industrial automation and control systems (eg: 4 ~ 20mA) to drive the change in cross-sectional area the size of the valve plug and seat piping between the control medium flow, temperature, pressure, etc..

Valve Body.

Structure: Cast Straight Through type Diaphragm Valve
Size: DN20~200mm.
Design Pressure: PN10
Connections:flanged type.
Flange Standard: GB/T 9113-2000, JB/T-94, ANSI B16.5, DIN, JIS
Material:WCB,HT200 ZG230-450 ZG1Cr18Ni9Ti.ZG0Cr18Ni12Mo2Ti.
Valve Disc: Diaphragm Soft Sealing
Diaphragm Material: NBR, EPDM, PTFE

Actuator

Type: Electric Actuator
Model: 381LSA/XA-08,  381LSA/XA-20,  381LSB/XB-30,  381LSB/XB-50, 381LSC-65, 381LSC-99
381LSC-160, 381LSC-260
Valve Action: Direct Action, Reaction (Force)
Controlling Action: Proportional Linear Controlling or ON-OFF Controlling.
Input Signal: 4~20mA DC or 1~5V DC
Power: AC220V, 50HZ
Output Signal: 4~20mA DC
Power Consumption: A Type-50VA, B Type--150VA, C Type-220VA
Protection Level: IP55
Wire Connection: Normal S Type--G1/2", Explosion-Proof X Type---G3/4"
Ambient Temperature: Normal---10 Deg C~ 60 Deg C, With Space Heater---35 Deg C~ 60Deg C, Explosion-Proof X Type--- -10Deg C ~40 Deg C
Ambient Humidity: Normal S Type--Below 95%, Explosion-Proof X type--45%-85%
Explosion-Proof: ExdIIBT4

Performance

Raded KV Valve: Refer to Table 1
Flowing Features: Linear
Adjusting Range: 30:1
Leakage Rate: Metal Sealing should be below 0.01% ANSI B16.104-1976 Class IV
            Soft Sealing should be below 0.00001% ANSIB16.104-1976  Class VI
Allowable Deviation: 1%

Electric Actuated Globe Control Valve (ZDLP) Dimension.

Kv,Movement& Action Time

Why Choose Us?

1. Manufacturer
We are manufacturer of control valve for over 10 years, our factory is located in Wenzhou, Zhejiang Province. We offer OEM/ODM service, and also we have our own band "GOOLE". Our products has won the trust from the customer as our high qulity and good after-sales.

2. High quality
In early days, 15 years ago, we introduce a full set of control valve production technology from Germany. We've been the OEM suplier for German brand valve. It just cost you 50% price to buy the same type same technical standard products compared with German products. GOOLE stick to the concept of 'Quality First, Credit Uppermost, products has been certified by CE, CQC, TUV, ISO14001,etc.

3.Good After-sales
Our sales will reply you as soon as possible for any question about valves.  We will track the customer product usage, if customer find any problem, our engineer will follow up at first time. For the accessories, we offer the best price.

FAQ

1. Q:Can we print our logo on your products?
A: yes, we offer OEM/ODM service, we support the customized logo, size, package,etc.

2.Q:What measures you can provide to ensure our our deal?
A: We are the trade assurance supplier on Made-in-china.com. If you place an trade assurance order, you will receive 100% refund of the trade assurance amount for   order not meeting agreed
delivery or quality terms.

3.Q:How can I start a new trade assurance order?
A:You can make it as follow:
      1) Find a Trade Assurance supplier and negotiation your order terms
      2) Confirm your contract on Made-in-china.com
      3) Submit your initial payment by T/T .
      4) Enjoy Trade Assurance protection up to your covered amount .

4. Q:Does the trade assurance support any amont of order?
A: No, this service just support the order of more than $1000.

5.Q:What's your after-sale?
 A: We offer 12 months warranty service, and we also sell the valve parts.
