Electric Linear Actuator with Integral Planetary Gearbox and Servomotor
Electric Cylinder DGRLT-64 belongs to light duty type of cylinder. It adopts simple but precise design model, offering customers a nice experience in practical use. The model is compatible with DMX512 protocol, used for controlling the movement of LED screens for 3D robotic billboard application. Working for non-stop 24 hour 100% duty cycle is supported. The Servo Electric Cylinder offers a wide range of stroke lengths and load capacities, making it suitable for a variety of applications. It is also highly versatile, with options for different mounting styles and configurations.
Electric Linear Actuation Solution:
Its rated speed range from 250-1000mm/s,
effective stroke 10-1200mm. According to its shape, you can choose Inline type or Parallel type for different usage.
Note: If you are interested in our products, please feel free to contact us and tell us your needs.(inluding the speed, the stroke and the force), and state your using application. We'll customize the exclusive plan for you.

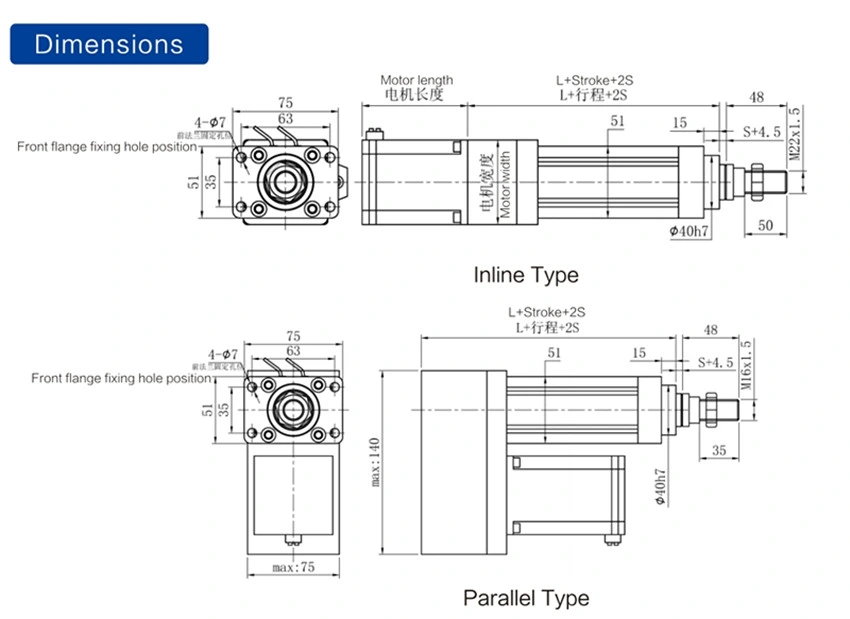

| Ball Srew Model | SFNU01605 | SFNU01610 | SFH01616 | SFH01620 |
| L(Inline Type) | 265 | |||
| L(Parallel Type) | 242 | |||
| S(Collision Avoidance Allowance) | 10 | 20 | 30 | 40 |
| Note: when the stroke is ≥400mm,the length L of the cylinder body will increase the guide length. | ||||
Note:
1.If you need drawings and life of ball screw, please consult customer service for details.
2.If the maximum stroke exceeds 1200mm,it is recommended to add a guide device.
3.The Parameters may be affected by different brands of motors,please consult customer service for details.
Products Items
"DGR" is our own brand for the products we produced.
Technical Specifications
| Material | Metal |
| Linear Actuator | DGRLT64 |
| Input Voltage | DC 12V/48V |
| Ball Screw | Screw Lead 5mm/Diameter 16mm/Rated Dynamic Load 1380kgf Screw Lead 10mm/Diameter 16mm/Rated Dynamic Load 1103kgf Screw Lead 16mm/Diameter 16mm/Rated Dynamic Load 808kgf Screw Lead 20mm/Diameter 16mm/Rated Dynamic Load 554kgf |
| Maximum Motor Power | 400W Servo Motor/Rated torque 1.27Nm/Rated speed 3000rpm 750W Servo Motor/Rated torque 2.39Nm/Rated speed 3000rpm |
| Maximum Rated Speed | 1000mm/s |
| Maximum Rated Thrust | 2.71KN |
| Maximum Rated Torque | 5.6 N.m |
| Stroke Range | 10-1200mm |
| Environment temperature | -26 ºC to + 50ºC |
| Standard protection level | IP65 |
| Limit switch | Built-in |
| Color | Silver/as your reuirement based on the material |
Feature:
1. Linear Electric cylinder servo press is widely used in the Automotive industry
2. Press-fitting of engine components (cylinder heads, liners, oil seals, etc.)
3. Press-fitting of steering gear assemblies (gears, pins, etc.)
4. Press-fitting of driveshaft assemblies
5. Press-fitting of gearbox assemblies, brake disc assemblies Press-fitting, etc.
1.Entertainment
Six degrees of freedom motion platform platform widely used in a variety of analog simulation, dynamic entertainment, robot arms and joints, dynamic seats.
2. VR Simulations
Multi-degree of freedom platforms can be applied to virtual reality motion seats, such as VR gaming, racing simulator
3. Automation Industry
The electric cylinders are widely used in the automation industry, such as automation production line, steel continuous casting, material handling, injection molding machine, valve control, precision machine tools, pharmaceutical machinery, precision machining, mechanical lifting platform, food industry, etc.
4. Automobile Industry
Electric cylinder servo press, also known as precision servo press, its working principle is that servo motor drives high-precision ball screw for precision pressure assembly work, can be realized in the pressure assembly operation Closed-loop control of the entire process of press-fitting force and press-in depth enables precise press-fitting of online quality management. Widely used in the Automotive industry: Press-fitting of engine components (cylinder heads, liners, oil seals, etc.), press-fitting of steering gear assemblies (gears, pins, etc.), press-fitting of driveshaft assemblies, press-fitting of gearbox assemblies, brake disc assemblies Press-fitting, etc.;
