Basic Info.
Model NO.
Z941X-16
Actuator
Manual
Seal Surface
Wedge Gate Valve
Thread Position of Valve Rod
Outside Gate Valve
Usage
Regulation, Safety, Emptying, Drain, Flow Control
Standard
Russian Standard
Application
Industrial Usage, Water Industrial Usage
Sample
Sample Is Available
Customize
Accept Customize Logo
Transport Package
Wood Pallet, Woven Bag
Specification
DN50-400
Trademark
PYL
Origin
China
HS Code
8481804090
Production Capacity
500PCS/Day
Product Description
electric soft-sealed gate valve utilizes the integral rubber of the gate to produce shape compensation and appointment to achieve a good sealing effect
IP65 protection level electric actuator
There are several types of valves that differ in their design:
Wedge gate valve,Parallel gate valve,Knife gate valves,Gate valve with rising stem,Gate valve with non rising stem
Gost gate valve information:
Specification
electric gate valve picture
Package:
Loosing woven bag packing, plywood tray packing. it can be customized as customer requirement
Company
BAODING PINGYILU PETROLEUM&OIL FITTINGS CO., LTD. locates in the B zone of Xushui Industrial Park of China Hebei Province, which is Chinese largest corporation of High-middle-low Pressure Valve and flange . The floor space of core enterprise is 200000 square meters, and it has more than 500 staffs.
Our corporation is the provincial-level high and new technology enterprise, which owns the power to engage in import and export trade, and the PYL brand is rated as " the famous brand in Hebei Province", the PYL series of products win the title of " the famous-brand product of Hebei", and it's the first class supplier of oil and gas group.
The products mainly adopt the standards of Chinese GB,JB;American API,ANSI;Britain BS;Germany DIN;Japanese JIS; French NF and others , which produce DN15~Dn2000MM(1/2"~80"), pressure stage 0.25~6.4Mpa(125LB~600LB), the working temperature is from -60ºC~550ºC,the materials are mainly HT200, HT250,QT400,QT450,WCA,WCB,WCC and others .
The products are mainly gate valve, globe valve , check valve , ball valve , butterfly valve, bottom valve ,Blow down valve, Strainer and others, totally 100 series and more than 1500 specifications, the annual productivity is above 8000 tons, flange ,elbow ,pipe fitting are also our main products .
They are widely used in oil, petrol-chemistry, chemical engineering , electric power, construction, pharmacy,water supply and drainage and other fields.
The company products has already explored the Russia , Pakistan ,Ukraine ,Kazakhstan markets , most of the products also far sold to the European and American, South Korean Vietnam, Indonesia, Malaysia, Thailand, Dubai and other countries, and the products win the trust and good reputation of the customers.
The corporation is with the development of science and technology for direction, with quality management for life, with honest operation for principle with customer satisfaction for purpose; and in accordance with the entrepreneurship of "Serious and pragmatic at work , innovations in a pioneering spirit , loyalty and hard working, solidarity and high efficiency, create brilliance", and we work wholeheartedly to supply high quality services for our extensive customers.
FAQ
1. Can I have a sample order for valve?
A: Yes. sample order to test quality is welcomed. Mixed samples are acceptable.
2. Can you OEM or ODM?
A:Yes, The products can be made according to your request.
3. Can you customize the design for us?
A: yes. Please send us high resolution images and your detailed requirement. We will send you finished files for confirming.
4. How to proceed an order for valve?
A: No.1 let me know your requirements or application.
No.2 We quote according to your requirements or our suggestions.
NO.3 Customer confirms the order and places deposit for order.
NO.4 We arrange the production.
5.What is your terms of delivery?
A: EXW,FOB,CIF
6.What's the package and how do you ship the goods?
A: wood pallet and woven bags. It can be customized as your requirement. the cargo usually ship by sea or by train
7. What is the average lead time?
A: For samples, the delivery time is about 2-5 days.
For mass production, the lead time is about 15-60 days after receiving the deposit payment. we can provide production schedule and related photos every two weeks.
8. Why choose us?
A: We are a verified supplier and creditable company on Made in China. we have worked with thousands of customers since company built 10 years ago, Including Fortune 500 companies. customers always make highly complimentary remarks.
we are focusing on the long term relationship with customers and welcome all customer visiting to begin regular business
IP65 protection level electric actuator
There are several types of valves that differ in their design:
Wedge gate valve,Parallel gate valve,Knife gate valves,Gate valve with rising stem,Gate valve with non rising stem
Gost gate valve information:
| Name | Material | Name | Material |
| body | WCB | Packing | Graphite |
| Seat | STL | Bolt | 45 |
| Wedge | WCB+STL | Hexagon Nut | 35 |
| Stem | 2Cr13 | Gland | WCB |
| Stud | 35 | Yoke | WCB |
| Hexagon Nut | 45 | Bearing | |
| Gasket | 304+Graphite | Stem Nut | ZQAL9-4 |
| Bonnet | WCB | Electric actuator | Compo |

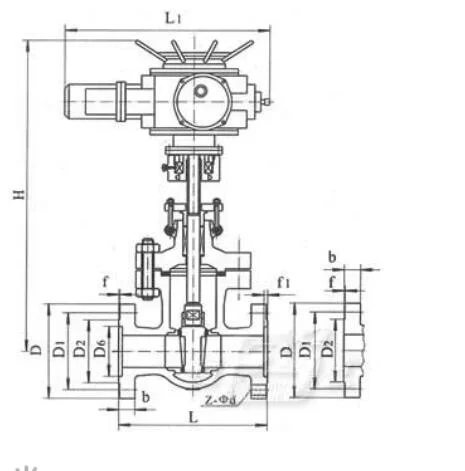

Specification
PN(MPa) | DN(mm) | Standard Value | reference value | Electric Actuator Code | ||||||||||
| L | D | D1 | D2 | b | f | Z-φd | L1 | H | weight(kg) | |||||
| 1.6 | 50 | 250 | 160 | 125 | 100 | 16 | 3 | 4-φ18 | 590 | 678 | 90 | DZWl0A | ||
| 65 | 265 | 180 | 145 | 120 | 18 | 3 | 4-φ18 | 590 | 693 | 96 | DZWl5A | |||
| 80 | 280 | 195 | 160 | 135 | 20 | 3 | 8-φ18 | 590 | 755 | 108 | DZW20A | |||
| 100 | 300 | 215 | 180 | 155 | 20 | 3 | 8-φ18 | 590 | 820 | 126 | DZW20A | |||
| 150 | 350 | 280 | 240 | 210 | 24 | 3 | 8-φ23 | 590 | 994 | 199 | DZW20A | |||
| 200 | 400 | 335 | 295 | 265 | 26 | 3 | 12-φ23 | 590 | 1138 | 254 | DZW30A | |||
| 250 | 450 | 405 | 355 | 320 | 30 | 3 | 12-φ25 | 810 | 1409 | 310 | DZW45A | |||
| 300 | 500 | 460 | 410 | 375 | 30 | 4 | 12-φ25 | 810 | 1588 | 391 | DZW60 | |||
| 350 | 550 | 520 | 470 | 435 | 34 | 4 | 16-φ25 | 830 | 1755 | 729 | DZW90 | |||
| 400 | 600 | 580 | 525 | 485 | 36 | 4 | 16-φ30 | 830 | 1902 | 992 | DZWl20 | |||
| 450 | 650 | 640 | 585 | 545 | 40 | 4 | 20-φ30 | 870 | 214l | 1168 | DZWl80 | |||
| 500 | 700 | 705 | 650 | 608 | 44 | 4 | 20-φ34 | 870 | 2276 | 1222 | DZW250 | |||
| 600 | 800 | 840 | 770 | 718 | 48 | 5 | 20-φ41 | 870 | 2474 | 1376 | DZW250 | |||
| 2.5 | 50 | 250 | 160 | 125 | 100 | 20 | 3 | 4-φ18 | 590 | 678 | 95 | DZWl0A | ||
| 65 | 265 | 180 | 145 | 120 | 22 | 3 | 4-φ18 | 590 | 693 | 99 | DZWl5A | |||
| 80 | 280 | 195 | 160 | 135 | 22 | 3 | 8-φ18 | 590 | 755 | 113 | DZW20A | |||
| 100 | 300 | 230 | 190 | 160 | 24 | 3 | 8-φ23 | 590 | 820 | 132 | DZW20A | |||
| 150 | 350 | 300 | 250 | 218 | 30 | 3 | 8-φ25 | 590 | 934 | 206 | DZW30A | |||
| 200 | 400 | 360 | 310 | 278 | 34 | 3 | 12-φ25 | 590 | 1138 | 257 | DZW30A | |||
| 250 | 450 | 425 | 370 | 332 | 36 | 3 | 12-φ30 | 810 | 1409 | 317 | DZW45A | |||
| 300 | 500 | 485 | 430 | 390 | 40 | 4 | 16-φ30 | 810 | 1588 | 412 | DZW60A | |||
| 350 | 550 | 550 | 490 | 448 | 44 | 4 | 16-φ34 | 830 | 1750 | 750 | DZW90 | |||
| 400 | 600 | 610 | 550 | 505 | 48 | 4 | 16-φ34 | 830 | 1902 | 1042 | DZWl20 | |||
| 450 | 650 | 660 | 600 | 555 | 50 | 4 | 20-φ34 | 870 | 2141 | 1275 | DZWl20 | |||
| 500 | 700 | 730 | 660 | 610 | 52 | 4 | 20-φ41 | 870 | 2276 | 1420 | DZWl80 | |||
| 600 | 800 | 840 | 770 | 718 | 56 | 5 | 20-φ41 | 870 | 2474 | 1522 | DZW250 | |||

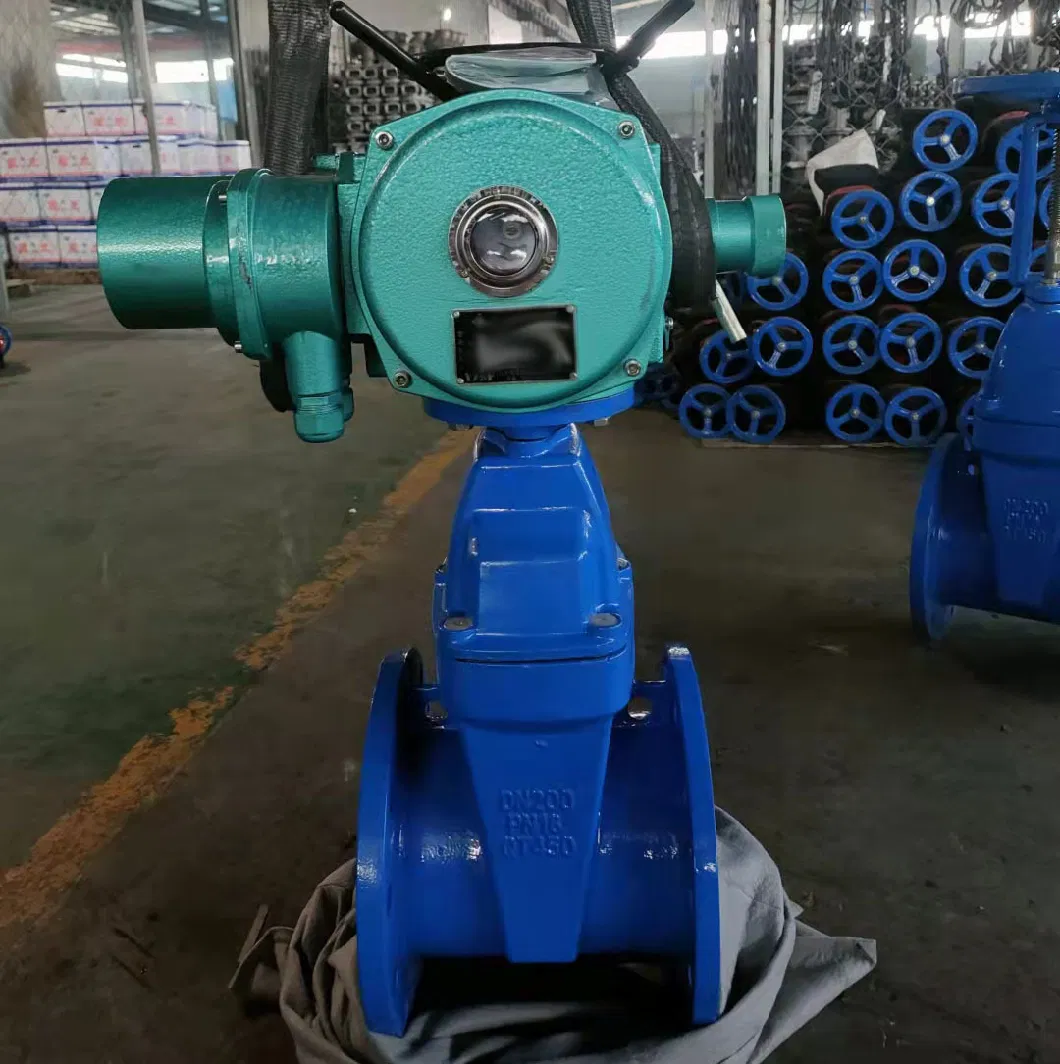

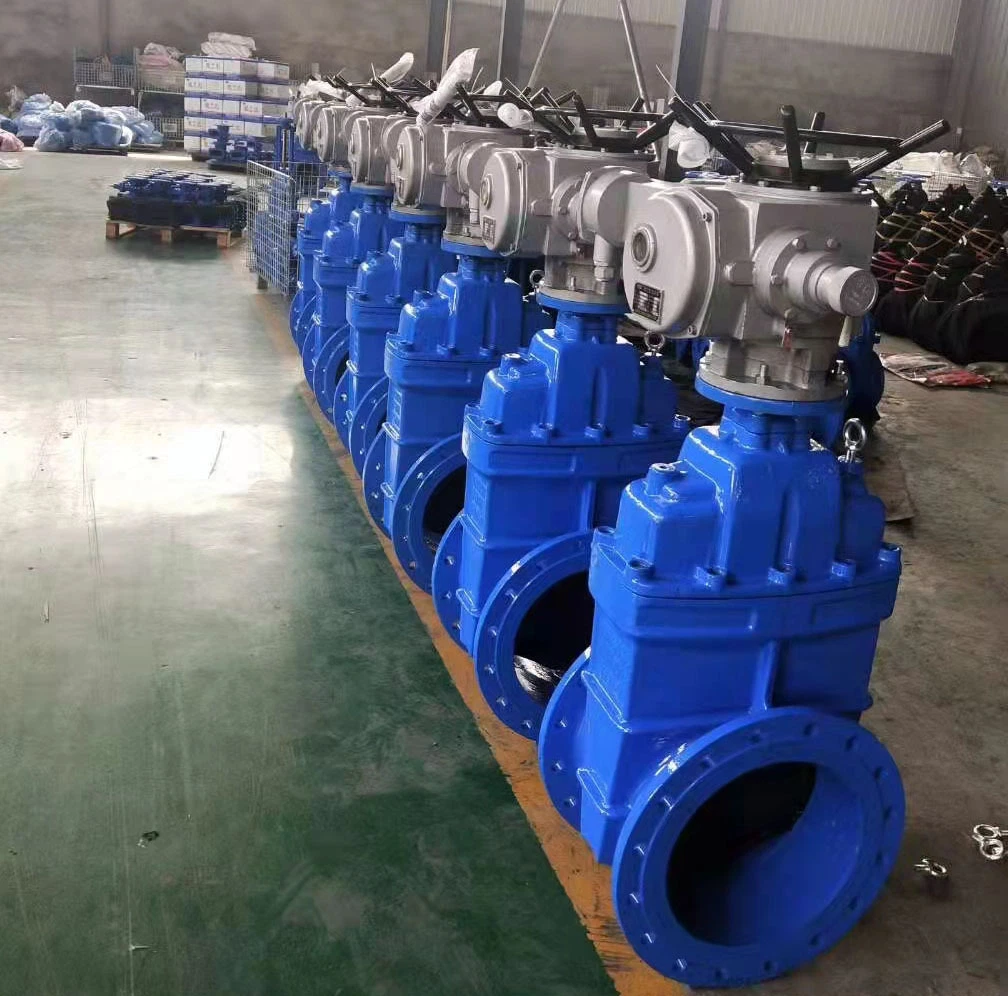

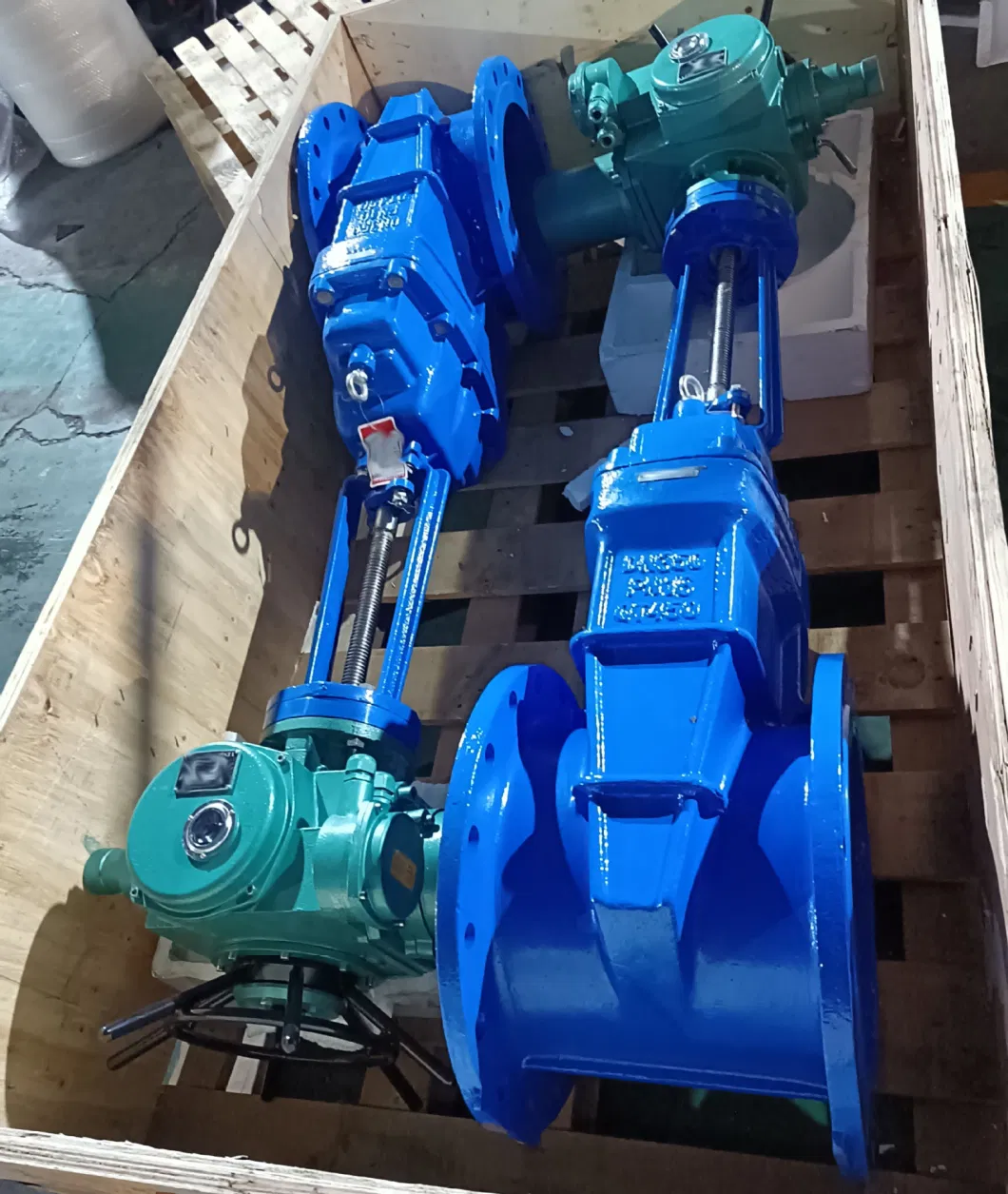

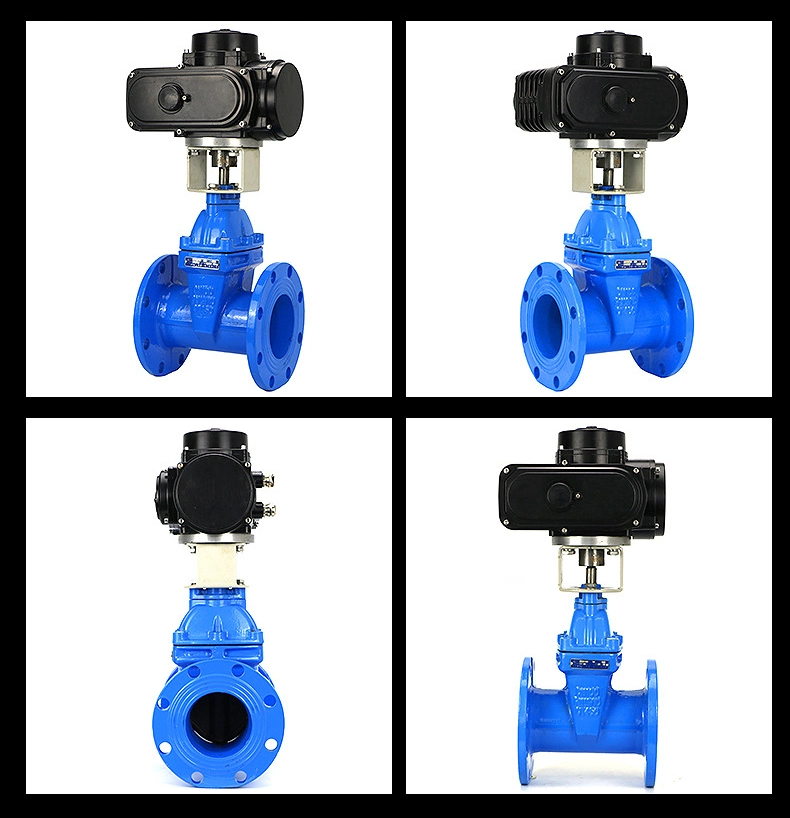

electric gate valve picture
Package:
Loosing woven bag packing, plywood tray packing. it can be customized as customer requirement

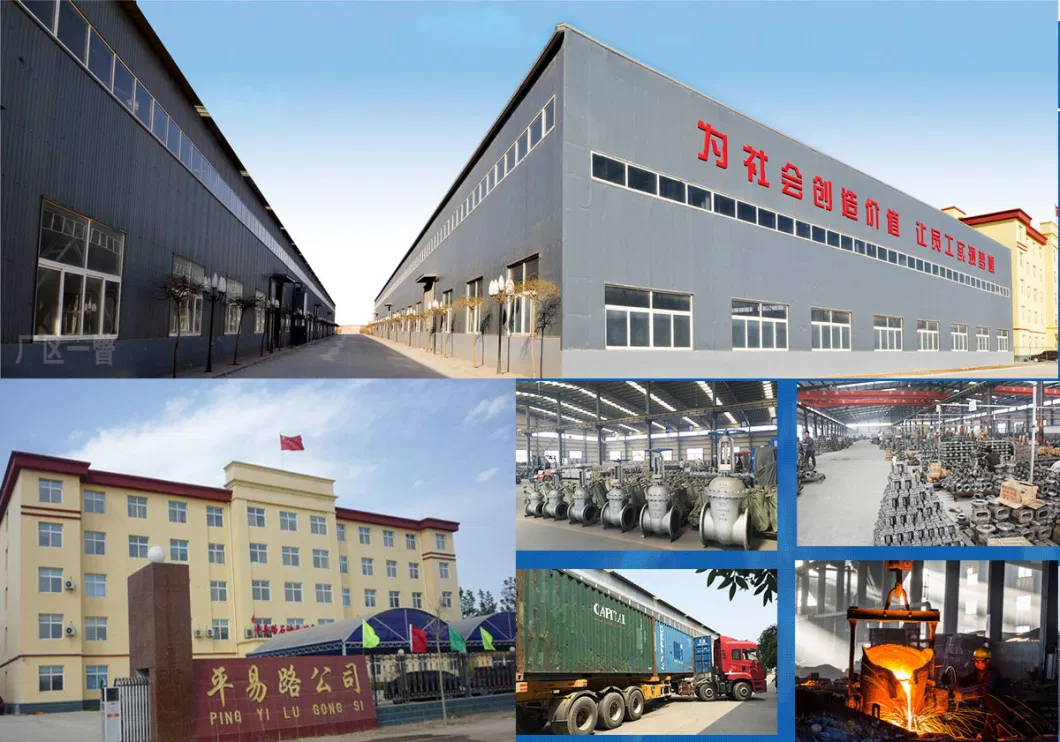

Company
BAODING PINGYILU PETROLEUM&OIL FITTINGS CO., LTD. locates in the B zone of Xushui Industrial Park of China Hebei Province, which is Chinese largest corporation of High-middle-low Pressure Valve and flange . The floor space of core enterprise is 200000 square meters, and it has more than 500 staffs.
Our corporation is the provincial-level high and new technology enterprise, which owns the power to engage in import and export trade, and the PYL brand is rated as " the famous brand in Hebei Province", the PYL series of products win the title of " the famous-brand product of Hebei", and it's the first class supplier of oil and gas group.
The products mainly adopt the standards of Chinese GB,JB;American API,ANSI;Britain BS;Germany DIN;Japanese JIS; French NF and others , which produce DN15~Dn2000MM(1/2"~80"), pressure stage 0.25~6.4Mpa(125LB~600LB), the working temperature is from -60ºC~550ºC,the materials are mainly HT200, HT250,QT400,QT450,WCA,WCB,WCC and others .
The products are mainly gate valve, globe valve , check valve , ball valve , butterfly valve, bottom valve ,Blow down valve, Strainer and others, totally 100 series and more than 1500 specifications, the annual productivity is above 8000 tons, flange ,elbow ,pipe fitting are also our main products .
They are widely used in oil, petrol-chemistry, chemical engineering , electric power, construction, pharmacy,water supply and drainage and other fields.
The company products has already explored the Russia , Pakistan ,Ukraine ,Kazakhstan markets , most of the products also far sold to the European and American, South Korean Vietnam, Indonesia, Malaysia, Thailand, Dubai and other countries, and the products win the trust and good reputation of the customers.
The corporation is with the development of science and technology for direction, with quality management for life, with honest operation for principle with customer satisfaction for purpose; and in accordance with the entrepreneurship of "Serious and pragmatic at work , innovations in a pioneering spirit , loyalty and hard working, solidarity and high efficiency, create brilliance", and we work wholeheartedly to supply high quality services for our extensive customers.
FAQ
1. Can I have a sample order for valve?
A: Yes. sample order to test quality is welcomed. Mixed samples are acceptable.
2. Can you OEM or ODM?
A:Yes, The products can be made according to your request.
3. Can you customize the design for us?
A: yes. Please send us high resolution images and your detailed requirement. We will send you finished files for confirming.
4. How to proceed an order for valve?
A: No.1 let me know your requirements or application.
No.2 We quote according to your requirements or our suggestions.
NO.3 Customer confirms the order and places deposit for order.
NO.4 We arrange the production.
5.What is your terms of delivery?
A: EXW,FOB,CIF
6.What's the package and how do you ship the goods?
A: wood pallet and woven bags. It can be customized as your requirement. the cargo usually ship by sea or by train
7. What is the average lead time?
A: For samples, the delivery time is about 2-5 days.
For mass production, the lead time is about 15-60 days after receiving the deposit payment. we can provide production schedule and related photos every two weeks.
8. Why choose us?
A: We are a verified supplier and creditable company on Made in China. we have worked with thousands of customers since company built 10 years ago, Including Fortune 500 companies. customers always make highly complimentary remarks.
we are focusing on the long term relationship with customers and welcome all customer visiting to begin regular business
