Basic Info.
Model NO.
DZW250-18
Temperature
Ordinary Temperature
Connection
Flange
Material
Alloy
After-Sales Service
Always Online
Warranty
1 Year
Ambient Temperature
20 to 60 Degree
Optional Temperature
-40 to 70 Degree
Relative Humidity
Not Greater Than 95%
Working Environment
The Common Type Is Used in The Places Without Inf
Protective Grade
IP65/67 (IP 68 for Special Ordering)
Working Provisions for The Motor
Ated Operation Time Is 10min. Grade F Insulation.
Anti-Corrosive Coating
High-Temperature Stoving Varnish
Speed
18rpm 24rpm 36rpm 48rpm
Body Material
Cast Aluminium
Media
Oil, Gas, Water
Optional Valve
Gate Valve, Globe Valve
Connection Type
Torque Type, Turst Type
Actuator Type
Multi Turn 0-360 Degree
Optional Protoccol
Modbus
Transport Package
Wooden Case
Specification
250Kg
Trademark
FRY
Origin
Tianjin, China
HS Code
850151
Production Capacity
10000 Piece/Month
Product Description

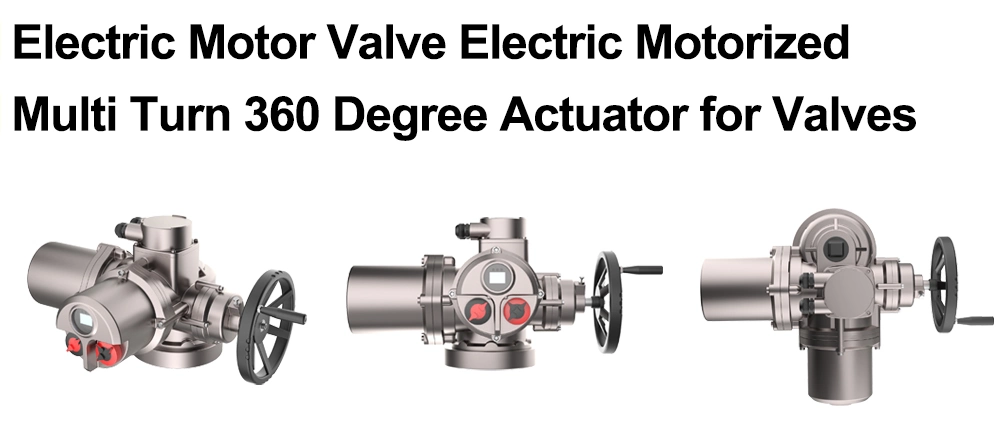

The DZW series of electric valve actuator is a new generation of products independently developed by our company by improving and perfecting structures, optimizing protective performance and key parts on original mature products, it has some advantages, such as: Compact structure, small volume, beautiful appearance and stable performance etc. The excellent protective grade can meet demands of many designs :Explosion-proof type, integrated on-off type and integrated regulting type designs. DZW series of products are used to control open and close of the valves. The products can be used for gate valve,globe valve, and diaphragm valve, the derived products can be used for ball valve, butterfly valve and throttle etc., the product can accurately act according to the control instruction, therefore it is necessary driving unit for achieving remote control, centralized control and automatic control.
1. Power supply: The motor is three-phase AC380V, 50 Hz. The control is single-phase AC 220V, 50Hz, optional power supply: AC220~660V, 50.60Hz (needs to be explained during ordering).2. Ambient temperature: -20~+60ºC;optional temperature:-40~70ºC.
3. Relative humidity: Not greater than 95% (at 25 ºC).
4. Working environment: The common type is used in the places without inflammable, explosive and strong corrosive medium; the using environment of flame-proof products (ExdIIBT4) are used in explosive gas mixture of IIA, IIB grades, T1-T4 groups.
5. Protective grade: IP65/67 (IP 68 for special ordering).
6. Working provisions for the motor: Rated operation time is 10min. Grade F insulation.
7. Anti-corrosive coating: High-temperature stoving varnish

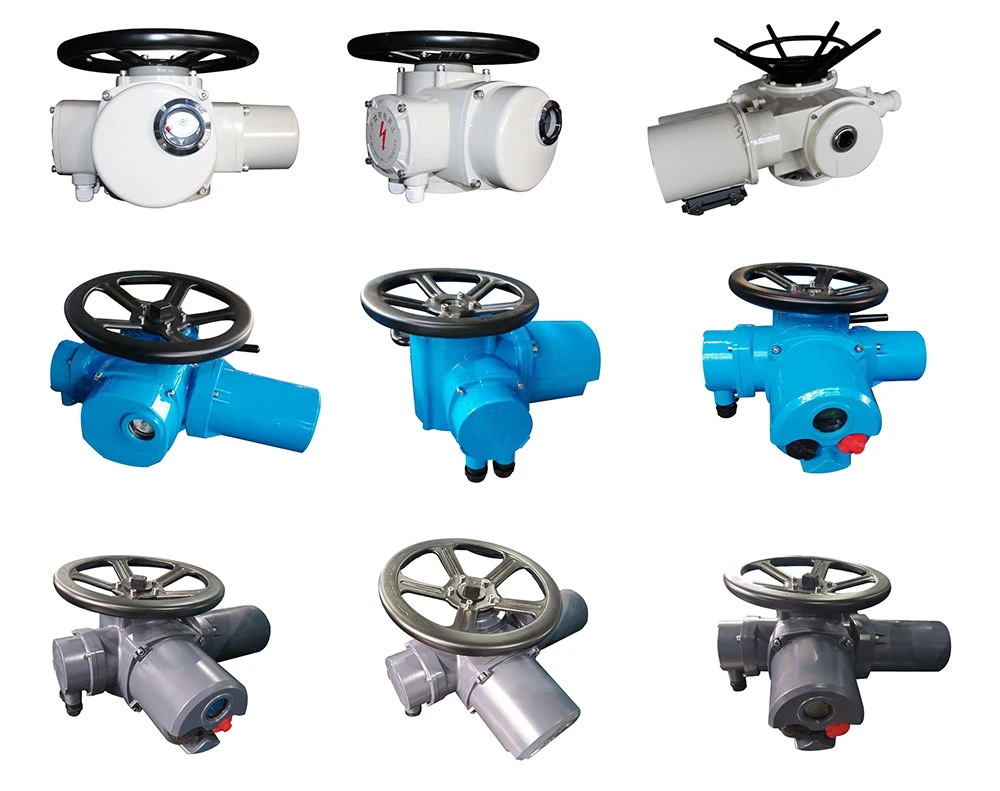

Actuator color can be customized
Control type can be customized
Control type can be customized
Notes:"I" indicates the connection dimensions of power station type product. The parameters are used for common supplying, if you have special demands, please state during ordering.
Q1.How about your price?
Although high quality but the price is vary favorable.
Q2. What is your MOQ?A: 1 PC.
Q3. What is the delivery time?
A: It is about 1-7 days after we receive the payment.
Q4. How to make the payment?
A: We accept T/T, Paypal, Ali Trade Assurance,etc.
Q5. Do you have products in stock?
A: Yes, some stock can be shipped out within 3 days.
Q6. Do you test all your goods before delivery?
A: Yes, all products are fully inspected before delivery.
Q7. What is the warranty?
A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibilities.
