WB-61 2PC Female Threaded Stainless Steel Ball Valve with Electric Actuator
Features:
THREAD STANDARD: NPT, BSPT, DIN259, DIN2999, ISO228 CLASS A
MAX PRESSURE: 6.4MPA
TEMPERATURE RANGE: -200C~2320C
SUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUIDS
BLOW-OUT PROOF STEM/FULL PORT
INVESTMENT CASTING BODY
1000PSI(PN64) W.O.G
MATERIAL STANDARD: S45C/ASTM A216 GR-WCB/DIN1.00619
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308
Main Parts and Materials
| 1 | Body | WCB/CF8M/CF8 | 7 | Gasket | PTFE |
| 2 | Cap | WCB/CF8M/CF8 | 8 | Packing | PTFE |
| 3 | Seat | PTFE | 9 | Gland | SS304/SS |
| 4 | Ball | SS316/SS304 | 10 | Stud Bolt | SS304/SS |
| 5 | Stem | SS316/SS304/SS | 11 | Block Only Retreat | SS304/SS |
| 6 | Thrust Washer | PTFE |

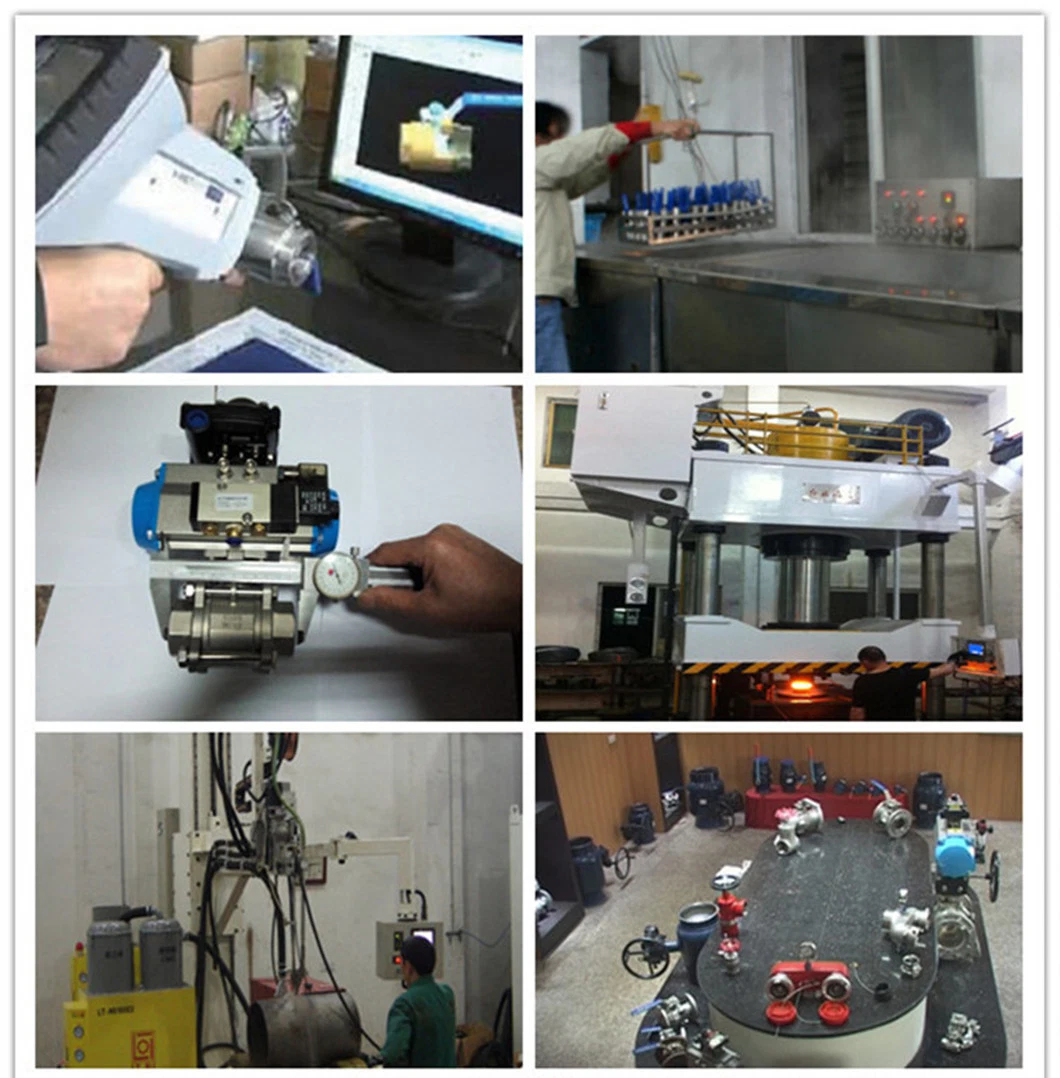

Product Test
Certificate:
Primary Competitive Advantages
1.We are a factory who focus on produce valves for 30 years. Adhere to
quality is our belief.
2. All valves according the drawing to produce and 100% pressure testing,
100%material inspection.
3. There are quality certificate ISO9001,2008 SON, International Quality
Award Certificate, Manufacture License of Special Equipment, KC of South
Korea,CE of Europe.
Other products:
Service
1.quick delivery, high quality and reasonable and fine.
2. We can make products according to the needs of customers.
3. Welcome to inquiry and purchase later in the day for us.
4. Strict quality control system .welcome third party for quality checking
5. After -sale service available, Feedback will be gave in 24hours
If you're interested in our items,please feel free to contact me!
