Basic Info.
Model NO.
HTW-W27
Function
Other
Sealing Form
Other
Flow Direction
Bidirectional
Standard
GB
Application
Household Usage
Consumption
6.5W
Drive Style
Bi-Direction Reversible Motor Drive
Valve Size
1/2′′(DN15), 3/4′′(DN20), 1′′(DN25)
Connection Type
Male/Female Connection
Pressure (MPa)
1.6MPa
Liquid Temperature
1~95°c
Transport Package
Carton
Specification
42*32*28 CM
Trademark
84819010
Origin
China
HS Code
84819010
Production Capacity
500000/Year
Product Description

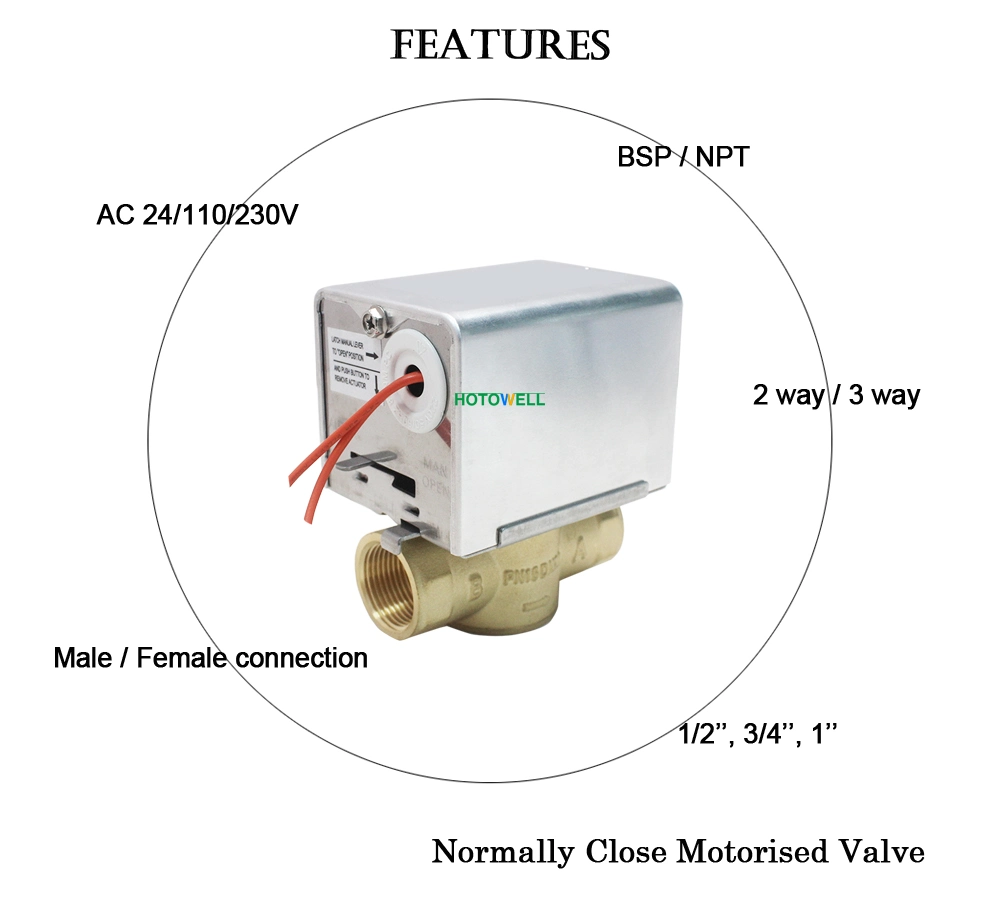

Electric Zone Valves 2 Way 3 Way Stainless Actuator Brass Valve Body Spring Return
>> General
HTW-W27 Series Motorized Valves are used to control the flow of hot water/chilling water, in heating/cooling or air-conditioning applications so as to control room temperature indirectly. It consists of an Actuator and a Valve Body. The actuator and Valve Body can be easily assembled, disassembled, and installed without any tools.
| Characteristics | Single direction motorized drive, stainless steel spring return |
| Configuration | Normally Closed Two-way and Diverting Three-way |
| Power Supply | AC220V/AC110V/AC24V±10%, 50/60Hz |
| Consumption | 6.5W |
| Compressive Strength | 1.6Mpa |
| Pipe Water Temperature | 5~90 ºC |
| Actuator plate | Stainless Steel |
| Valve Body | Forged Brass |
