Product Description
1.About Price
Due to the product and industry characteristics, linear actuators are always customized and made-to-order.
The exact quotation varies for the model, configuration and quantity you required, so the prices displayed on this page are for reference only.
You can go to the customer service and leave your rough requirements and contacts. Packway will match you with professional engineers and provide one-to-one technical support.
2.Product Parameters

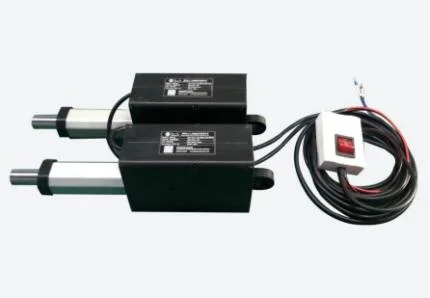

High Speed Universal Small Linear Actuator Electric Wheelchair Linear Actuator

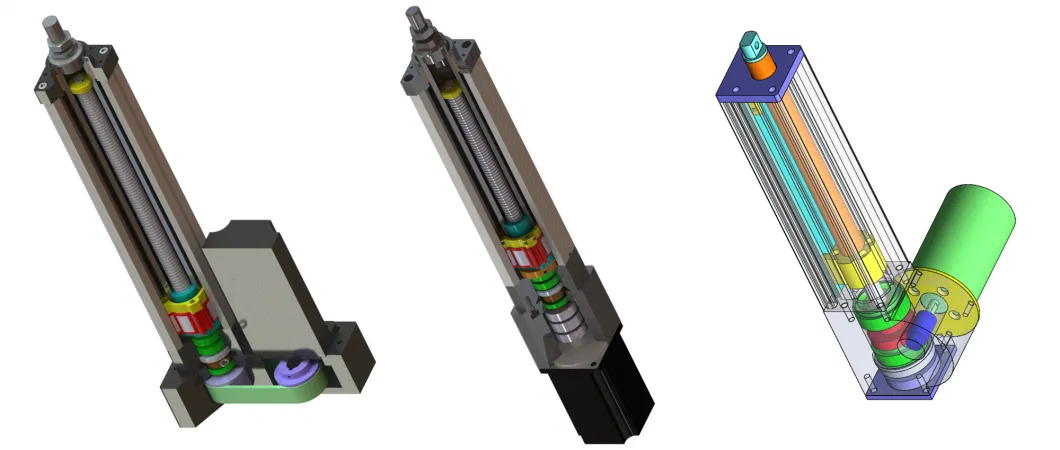

Linear actuator is also called electric cylinder. It is made of motor, gears, rod, rod nut, ball screw or lead screw, guide housing and worm gear as well as control switch.

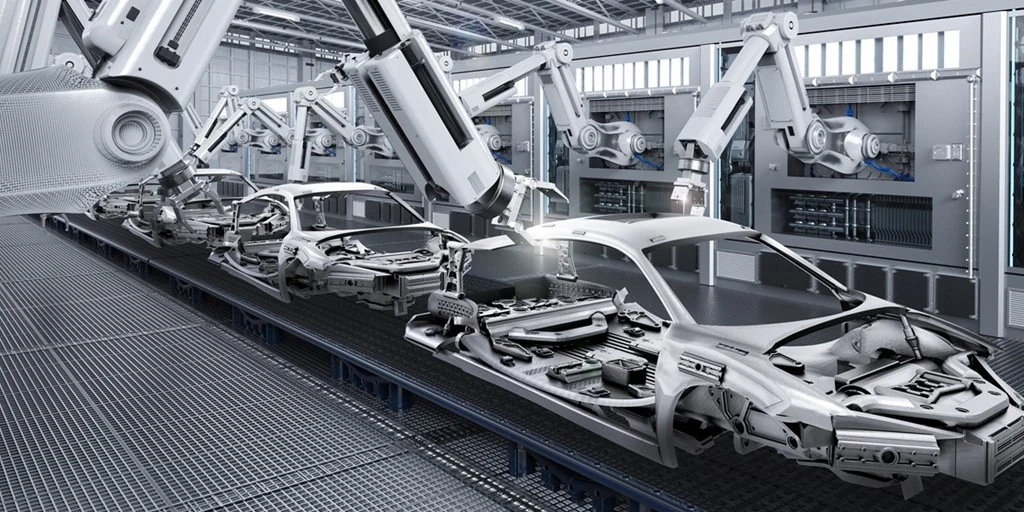

Linear Actuator transforms the rotation of motor into linear motion of the rod, it can be used in various applications, which can work with remote control, integrated control or automatic control. Because of its features like small size high precision convenient clean and self-locking, It has been widely used for pipeline production, automobile, textile, etc.
| 0-100KG Linear Actuator Specifications | |||||
| Model No.:DGRTG-100-200-DC24-20 | Ambient Temperatrue:-10˚ C~+50˚ C | ||||
| Voltage:DC 12/24V | Himidity:30%~80% | ||||
| Max. Force:2000N | Storage Temperature:-20˚ C~+60˚ C | ||||
| Speed at Zero Load:1-23mm/s | Protection:IP54/IP65 | ||||
| Speed at Full Load:0.5-16.5mm/s | Noise: ≤65dB | ||||
| Voltage DC 12V | |||||
| Model | Zero Load Speed (mm/s) | Rated Speed (mm/s) | Rated Force (N) | Current (A) | Power (W) |
| 1-A | 23 | 16.5 | 90 | 1.2 | 14.4 |
| 1-B | 15.5 | 11 | 130 | 1.2 | 14.4 |
| 2-A | 13 | 9 | 160 | 1.2 | 14.4 |
| 2-B | 8.5 | 6 | 240 | 1.2 | 14.4 |
| 3-A | 8 | 5.5 | 260 | 1.2 | 14.4 |
| 3-B | 5 | 3.5 | 400 | 1.2 | 14.4 |
| 4-A | 4 | 2.5 | 520 | 1.1 | 14.4 |
| 4-B | 2.5 | 1.5 | 750 | 1.1 | 14.4 |
| 5-A | 1 | 0.9 | 1200 | 1.1 | 14.4 |
| 5-B | 0.8 | 0.5 | 1500 | 1.1 | 14.4 |
| Voltage DC 24V | |||||
| Model | Zero Load Speed (mm/s) | Rated Speed (mm/s) | Rated Force (N) | Current (A) | Power (W) |
| 6-A | 23 | 16.5 | 150 | 0.9 | 21 |
| 6-B | 15.5 | 11 | 220 | 0.9 | 21 |
| 7-A | 13 | 9 | 250 | 0.9 | 21 |
| 7-B | 8.5 | 6 | 370 | 0.9 | 21 |
| 8-A | 8 | 5.5 | 400 | 0.8 | 21 |
| 8-B | 5 | 3.5 | 620 | 0.8 | 21 |
| 9-A | 4 | 2.5 | 800 | 0.8 | 21 |
| 9-B | 2.5 | 1.5 | 1200 | 0.8 | 21 |
| 10-A | 1 | 0.9 | 1600 | 0.8 | 21 |
| 10-B | 0.8 | 0.5 | 1800 | 0.8 | 21 |
| A Series: 3mm screw lead, B Series: 2mm screw lead | |||||
Precise position control with repeatability of up to 0.02mm.
High Reliability
Multiple, multiple security measures
Long Life
Run over a distance of 100,000km
Wide Thrust Range
Select famous branded rollerball screws, ball screws, and lead screws which are made of high-quality materials for our electric cylinders in order to reach double the theoretical rated push-pull force.

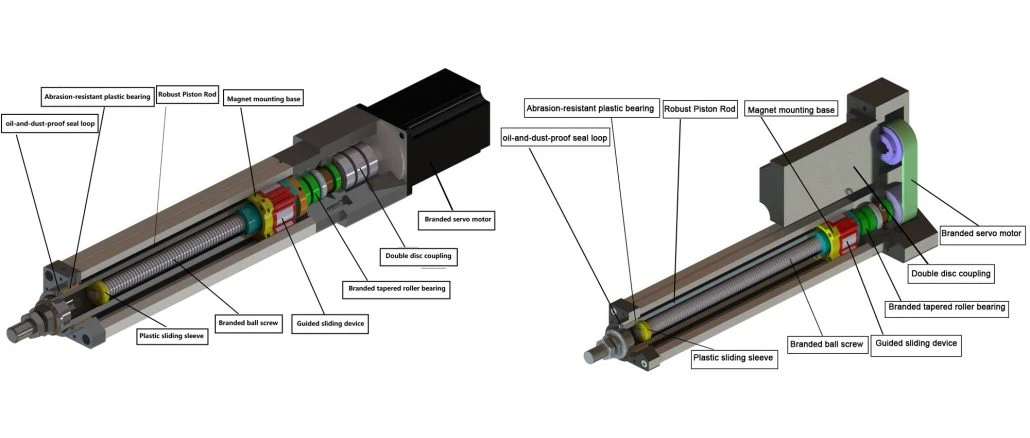

Careful Material Selection
1. Use round carbon steel as the cylinder material
2. Select sensor components of internationally famous brands.
3. Key components are made of high-quality materials and processed with vacuum heat treatment or surface treatment (including coating, azotizing, oxidation)
4. Select branded bearings and gears to achieve the best mechanical performance in mechanical structure
5. Select high-quality grease to minimize friction, which enables the drive efficiency to reach up to 90%.
1. The connection between the screw nut and the piston rod is rigid
2. Snap fastener will be required to locate the part in its fixed position to avoid assembly errors that affect mechanical properties.
3. All screw threads are coated with screw locking adhesive after commissioning to ensure the equipment is stable and trouble-free.
4. Adopt domestic ball screw and bearing products, light load output, high-cost performance
5. All heavy-duty cylinders use sliding key guides. (The square cylinders are using guided rod)
Duty Cycle
Ball screws are used for the frequent operation of electric cylinders, the duty cycle is ensured to be greater than 50% or continuous operation.
Complete Testing
Professional and detailed factory testing: appearance, stroke, noise decibel.
Excellent Service
1. Each DGR electric cylinder is backed by a lifelong tracking service to ensure it can be used normally over its life cycle. (including handling product failure, providing spare parts and technical support)
2. DGR Electric cylinder can be custom engineered for customer's particular application.
3. All customer requirements will be responded to within 12 hours
Wide Selection of Motors
Can choose AC motor, DC motor, stepper motor, servo motor.
Q1. What are your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown wooden cartons. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What are your terms of payment?
A: T/T 50% as deposit, and 50% before shipping. We'll show you the photos of the products and packages before
you pay the balance.
Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 10-25 days to produce the products, and 5days by air, 25 days of the ship by sea. The specific delivery time depends on the items and the quantity of your order.
Q5: How is the warranty system?
A: 1~5 years. (upon the deal)
Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7. What is your sample policy?
A: We can supply the sample, but the customers have to pay the sample cost and the courier cost.
Q8. Do you test all your goods before delivery?
A: Yes, we have a 100% test before delivery.
