Product Description

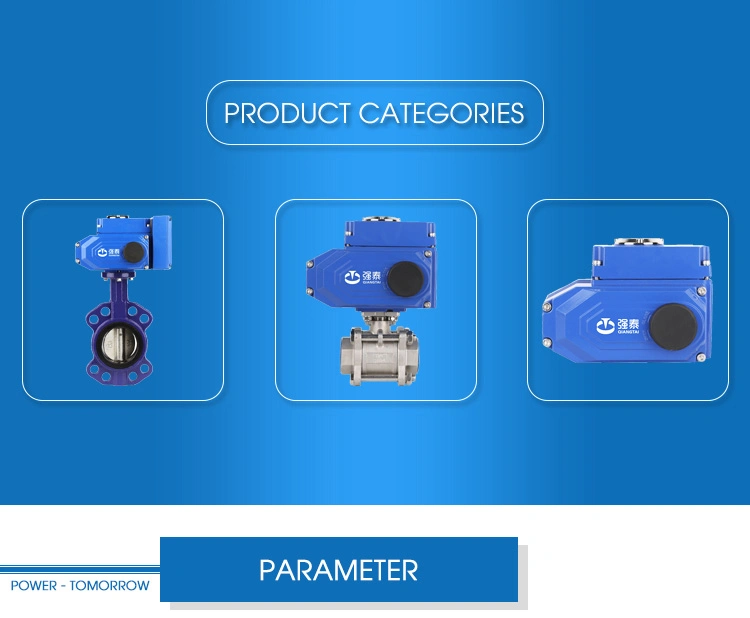

Hot Sell motorized control valve actuator with gate globe valve
Application:
It is widely used in textile, power station, petrochemical, heating and refrigeration, pharmaceutical, shipbuilding, metallurgy, light industry and environmental protection fields.
Advantage:
1. The opening and closing are convenient , the fluid resistance is small,can operate frequently
2. Simple structure, small volume and light weight.
3. Under low pressure, good seal can be achieved.
4. Good regulatory performance.
DATA SHEET FOR ELECTRIC ACTUATORS
| ||
General
| Actuator Type | Motor Operated |
Relative Humidity (Min/Max) % | 20% - 80% | |
Service | On -Off / Modulation | |
Electric valve actuator
| Opening Time: Full Open | 5s /10s /15s / 30s |
Opening Time: Full Close | 5s /10s /15s / 30s | |
Enclosure | IP67 | |
| Hand Wheel for Manual Operation Clockwise to | Close | |
| Torque Output (Nm) | 30N.m- 2000N.m | |
Rated Power (Kw) | 50Hz /60Hz | |
Rated Current (A) | AC220V/ AC380 V/ DC12V /DC24V | |
Stroke | Angular 90 | |
Control Signal | Impulsive | |
Limit Protection | Yes | |
Torque Protection | Yes | |
Motor Protection when valve jams | Yes | |
Thermostatic Protection | Yes | |
Overloading and short circuit of control | Yes | |
Surface Colour | Blue / orange / grey | |
Operation/ Maintenance Manual | Yes | |
Test report and Certificates | CE | |
| DN | Size:mm | ||||
| L | d | K | D | H | |
| 15 | 130 | 15 | 65 | 95 | 72 |
| 20 | 150 | 20 | 75 | 105 | 75 |
| 25 | 158 | 25 | 85 | 115 | 80 |
| 32 | 175 | 32 | 100 | 140 | 83 |
| 40 | 202 | 39 | 110 | 150 | 103 |
| 50 | 227 | 50 | 125 | 165 | 110 |
1) Q :How long is your products quality warranty?
A: We provide one year factory quality warranty.
2) Q: Can your factory print our brand on the products ( or package ) ?
A::Our factory can laser print customer's logo on the product with the permission from customers.We need an authorization letter from you to allow us to print your logo on it .
3) Q : Can I visit your factory before order ?
A::Sure, welcome to visit our factory. .Please schedule an appointment with us in advance.
4) Q: What payment method do you accept ?
A::T/T, L/C, Western Union, Escrow, Credit Card etc.
5) Q: How dose your QC work ?
A: We execute 100% inspection.
Products will need reworking in workshop if inspection fails.
We stick to checking quality , cartons, Packaging / markings.
Product/ Style / Color Appearance and Workmanship Measurement Data.
