Basic Info.
Model NO.
HDCF50-1-2
Standard
Standard
Connection Mode
Internal Thread
Power
Hydraulic
Material
Cast Iron
Type
Self-Operated
Rated Flow
50L/Min
Rated Pressure
20MPa
Applicable Medium
Oils
Pressure Environment
Ordinary Pressure
Temperature of Media
-40~+80 Degrees Celsius
Warranty
12 Months Warranty
Nom.Dia.
6mm
Outlet Port Size
Bsp/Metric/Unf/NPT Thread
Work Port Size
Bsp/Metric/Unf/NPT Thread
Monoblock Sections
1-12 Sections
Allowed Back Pressure
3MPa
Kick out Set Pressure
70-140bar
Product Name
Hdcf50
Transport Package
Foam Mat&Carton&Wooden Tray
Specification
Customerized
Trademark
BXHS
Origin
China
HS Code
848180299
Production Capacity
20000sets/Month
Packaging & Delivery
Package Size
40.00cm * 30.00cm * 18.00cm
Package Gross Weight
12.000kg
Product Description

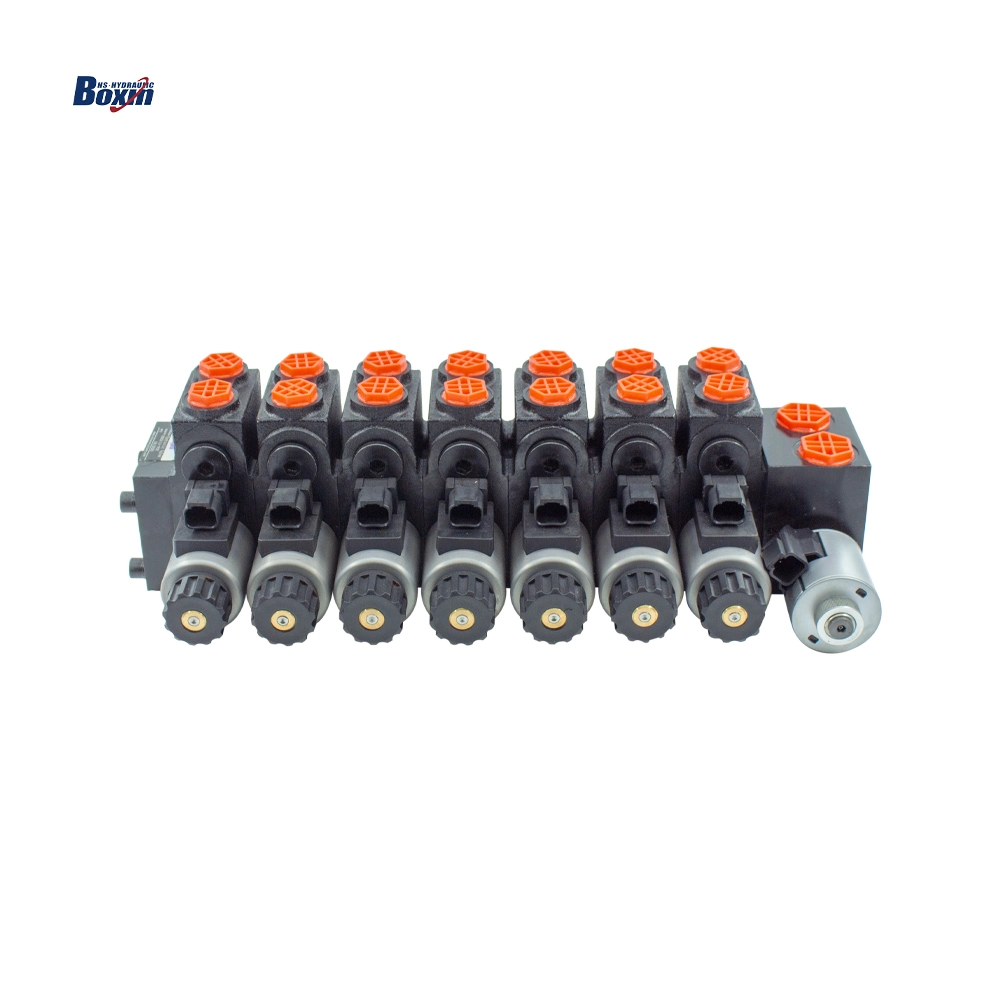

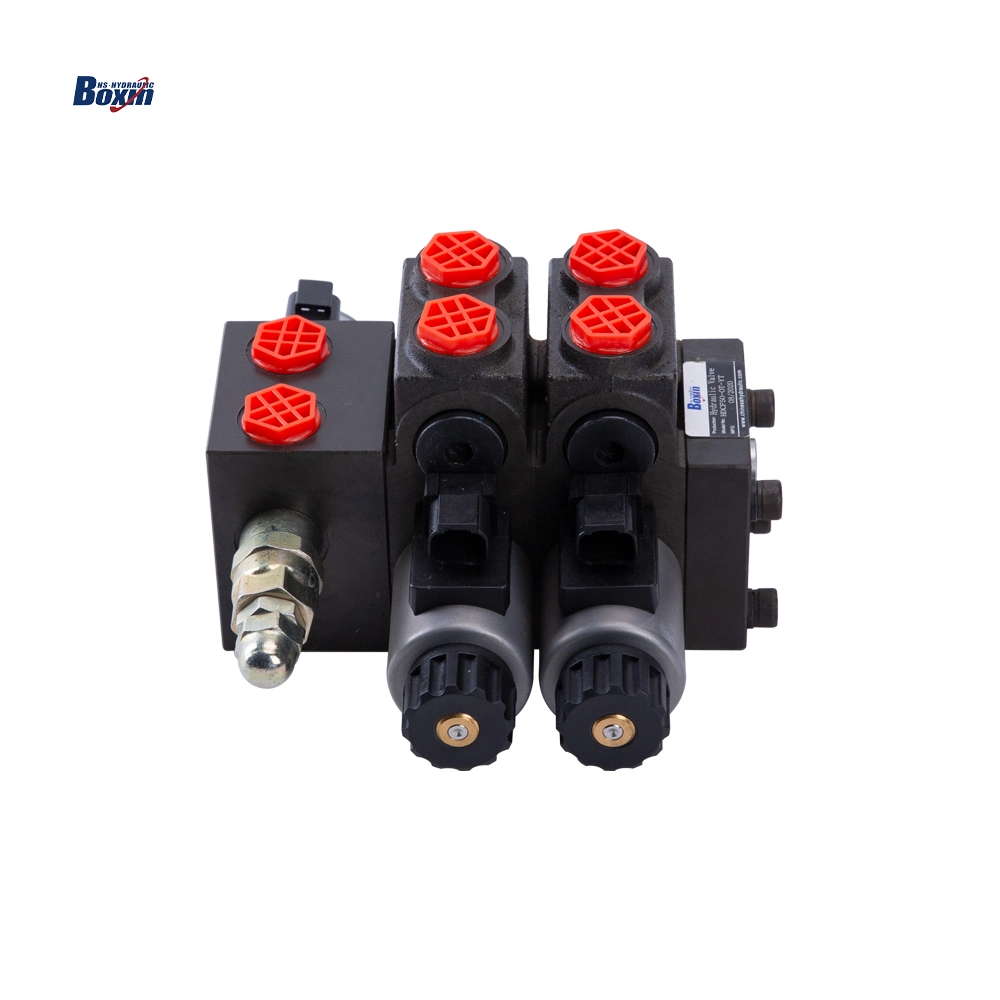

HDCF50 series valve is developed independently by BXHS, it can be used inagricultural,sanitation,and construction machines. with a built-in singledire-ction lock and anti-pollution direct-action relief valve.
| Number of spools | 1-12 |
| Relief valve set pressure | 150-250bar |
| Voltage | 12v 24v |
Inlet/Outlet port size
Work port size
| BSP thread | Metric thread | US standard UNF thread | US standard NPT thread | ||||
| Code | Thread size | Code | Thread size | Code | Thread size | Code | Thread size |
| G06 | G3/8 | M18 | M18X1.5 | U10 | 5/8-18UNF | N06 | NPT3/8 |
| G08 | G1/2 | N08 | NPT1/2 | ||||

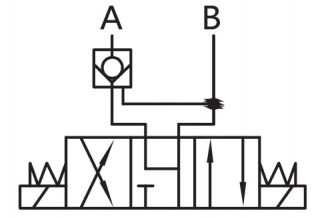

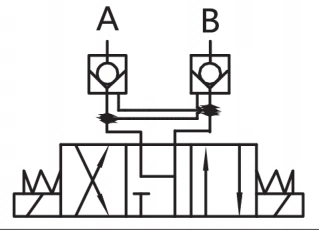

Spool type
| Code | Descriptiom | Code | Descriptiom | Code | Descriptiom |
| O |  | Y |  | YSA |  |
| YSB |  | YS2 |  |

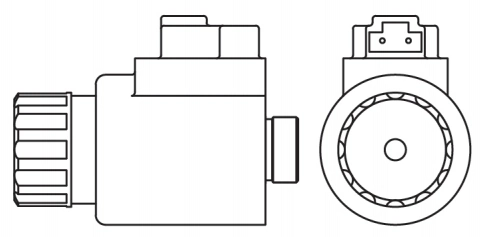

| Code | Solenoid type | Description |
| S1 |  | 2 pin water-proof |
| S2 |  | 3 pin |
| Item | Parameter |
| Model | HDCF50 |
| Nom. Diameter | 6mm |
| Rated pressure | 50L/min |
| Working pressure | 20Mpa |
| Allowed backpressure | 3Mpa |
| Oil Temp | -20°~80°C |
Drawing & Dimensions

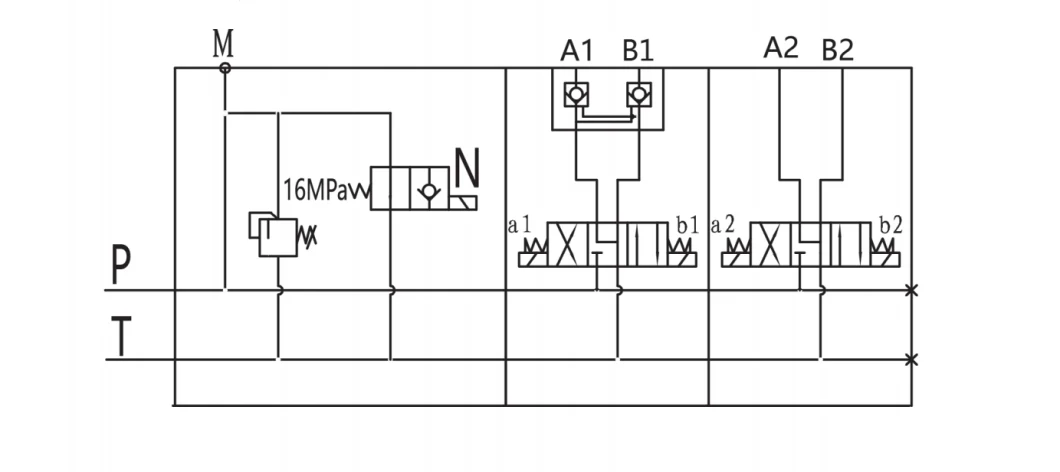

Hydraulic Schematic
Application areas
1.Agriculture machine
2.Dump truck
3.Construcion vehicle
4.Special purpose vehicle
5.Drilling machine
1.Agriculture machine
2.Dump truck
3.Construcion vehicle
4.Special purpose vehicle
5.Drilling machine

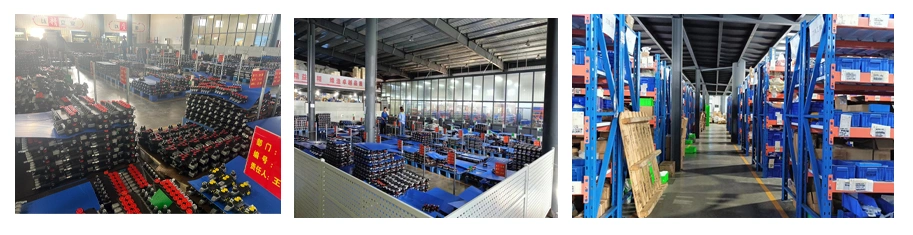

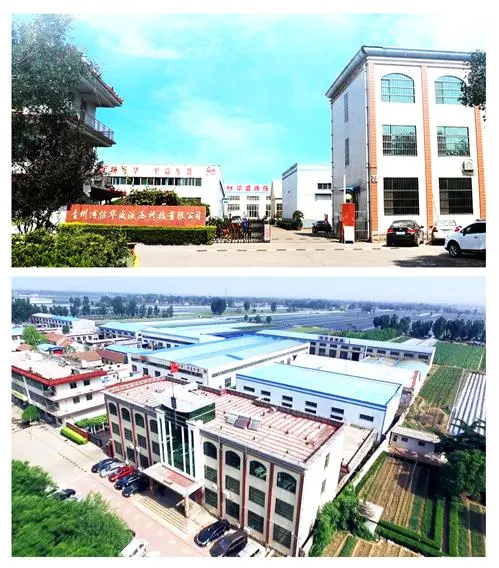

Key Competitiveness
17 years experience
900,000 production capacity
350 employee
17 years experience
900,000 production capacity
350 employee
20 engineers majoring in fluid mechanics and materials
China's first dust-free clean workshop with auto production line
High-precision maching equipments
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.And have our own factory,Look forward to your visit.
Q2: What is our main application?
A2: 1.Hydraulic system
2. Agriculture machine
3.Constraction machine
4. Automobile
5.Local distributors etc.
Q3: Can I Mark My Own Brand On The product?
A3: Yes. Full order shold mark your brand and code.
Q4: Do you provide samples ? is it free or extra ?
A4: We can provide paid samples.But the buyer paid freight.
