Basic Info.
Model NO.
JYGV33
Actuator
Manual
Seal Surface
Parallel Gate Valve
Thread Position of Valve Rod
Inside Gate Valve
Usage
Regulation, Safety, Emptying, Drain, Temperature Control, Flow Control
Standard
DIN
Application
Industrial Usage, Water Industrial Usage, Household Usage
Size
DN40-DN600
Valve Seal Surface
Wedge Gate Valve, Paralle Gate Valve
Valve Standard
GB, DIN.BS, JIS, Bsw, ANSI
Color
Blue, Red.Green, Black.Silver....
Material Detailed
Carbon Steel, Ss, Brass, Bronze, Di, Alloy
Connection Type
Clamp, Thread, Flange, Welding
Actuator/ Drive Way
Worm Gear, Pneumatic, Manual, Hydraulic, Electric
Working Pressure
JIS10-20K, ANSI Class 150-900, Pn1.0-32.0MPa
Function
Relief Valve, Atmospheric, Bypass-
Working Temperature
Vltralow Temperature, Low, Normal, High Temper
Application /Use
Industrial Usage, Water Industrial Us
Thread Position of Valve Rod /Stem
Outside Gate Valve, Inside Gate Valve
Working Medium
Gas, Oil, Water .Acid
Certificate
UL.CE .ISO9001, TUV Upc, FM, API.Ts
Transport Package
Plywood Case, Woven Bags
Specification
11/2"-24"
Trademark
xbfm/ OEM
Origin
Zhejiang, China
HS Code
8481804090
Production Capacity
50000PCS/Year
Product Description
2 Inch Pneumatic Actuated Knife Gate Valve 10 Bar Rated Cast Iron Valve
| Size Range | 2"~12", DN50~300 |
| Acting Mode | Double Acting, Spring Return (Single Acting) |
| Operating Pressure | 0.6~2.5MPa |
| Air Supply Pressure | 0.4~0.6MPa |
| Temperature | 0°C~1100°C |
| Lifespan | 1,000,000 (1 Million) Times |
| Body Material | SS304, SS316, SS316L, WCB |
| Sealing Material | PTFE, Metal Seated |
| End Connection | Flanged End or Lug Type |
| Flange Drilling | ANSI B16.5, GB/T9113, JB/T79, HG, SH, JIS, DIN, NF, BS |
| Applicable Media | Control of Water, Air, Gas, Oil, Liquid |
| Leakage | PTFE Grade A (Zero Leakage), Metal Seated Grade D (Liquid 0.1xDN mm³/s) |
| Optional Actuation | Handlever, Electric Actuated, or Pneumatic Actuated |
| Optional Accessories | Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device |
SINGLE ACTING ACTUATOR (SPRING RETURN)
Air to Open, Spring Return to Close
DOUBLE ACTING ACTUATOR
Air to Open, Air to Close
Other products
Why Choose US
We control the material of PTFE and stainless steel wires per customer's request.
Some are from Japan and Taiwan, some are from China local. Only choose high quality material.
We test leakage of each roll before braiding, then we cut 300mm and crimp it to test
burst pressure after brading.

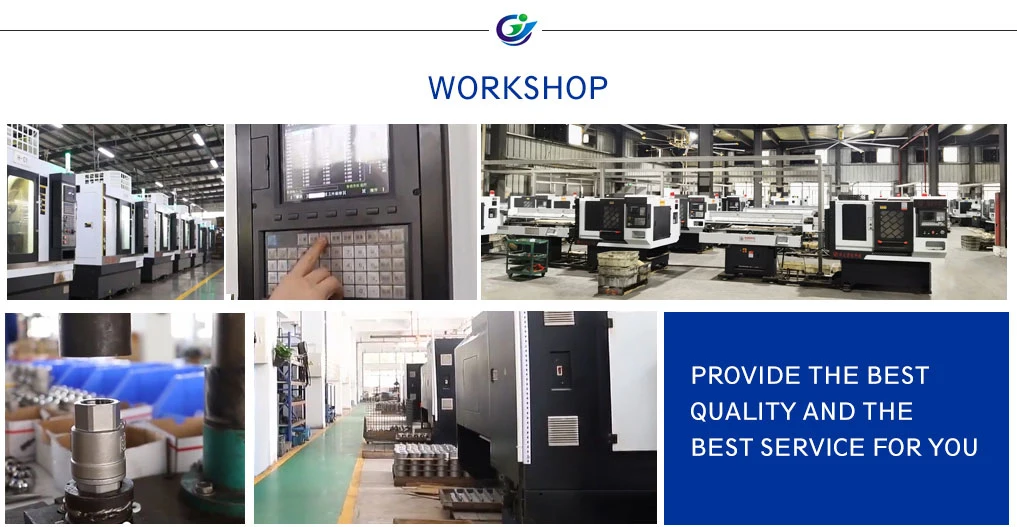

We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection
tools are all imported from Japan.
We use Techmaflex Crimping Machine which is imported from France. This machine has
accurate and stable performance for crimping because it is produced for PTFE hose crimping only.
