Basic Info.
Model NO.
ST6+RS252 ST6+RS600
Temperature
Ordinary Temperature, Ordinary Temperature
Connection
Flange, Flange
Material
Alloy, Stainless Steel
Place of Origin
Tianjin, China (Mainland)
Operating Torque
2500nm 3600nm
Motor Rated Speed
750rpm 1500rpm
Brand Name
Freya
Control Modal
Intelligent Type
Phase Code
K/F
Frequency
50Hz
Operatingtime S/90°
6/3
Flange
F10 F12
Power
0.1 Kw
Transport Package
Wooden Case
Specification
130kg
Trademark
Freya
Origin
China
HS Code
850151
Production Capacity
10000 Piece/Month
Product Description

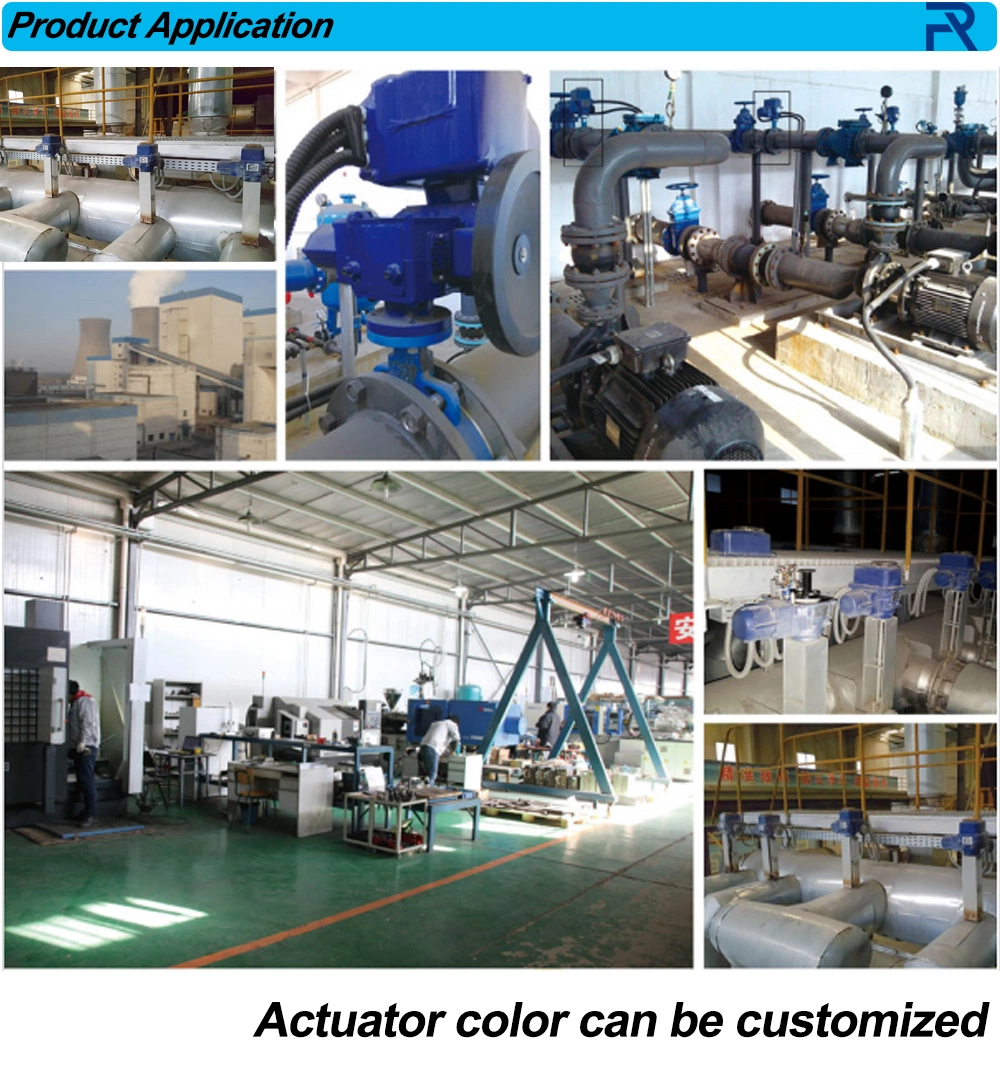

Quarter-turn electric actuator can be used to control various valves with a regulating angle of 0-90° and the torque range is: 35-10000Nm. It can used for control all of quarter-turn valve like: flue cut-off gate, boiler's primary and secondary wind, boiler's side wind, air pre-heater inlet and outlet damper regulator, butterfly valve, ball valve, louver valve, damper, plug valve, flapper valve, etc.
Explosion-proof Grade: IP67, IP68.
1- Valve Position Limitation and Protection
Actuator automatically stops after traveling to the closing position or open position.
2- Protection of Instant Reverse Running
When the actuator receives a command for motion in the opposite direction, it automaticaly add a time lag, to prevent unnecessary wear to the valve shaft and transmission box.
3- Power Brake
It helps to improve precision of valve position
4- Access-free Debugging
Working parameter setup, system status inquiry can be realized on buttons or infrared controller, without needs to open the electrical protection cover, so that dust, moist and other hazardous substances in the environment can not enter the actuator and the reliability of electrical control will be greatly improved
5- Dead Zone Self-adaption
In "Remote Auto Control" mode, no setting or dead adjustment will be required, and the system can. on basisof its operating status. automatically measure and locate and precisely determine the dead zone values, ensurind vibration-free and high-precision operation of the actuator
6- Easy Wiring
Quick-set connection is adopted on the actuator for wiring. The external wire is connected to the plua, and the actuator can be removed simply by unplugging operations. The plugs are water-proof and thus prevent errors by reconnection during maintenance process.
7- Power-loss-safe Status Indication
The configurable bi-stable relay output contact can be used to indicate various status of the valve (including open/close limits, over-torque, operating indication or destination position of valve, etc.), which will not change even the system loses power supply.
8- Multiple Controls
1) Field control
When the system runs in "Field Control" mode by usina the "Field Control" button, the "Open" "Closetbuttons or "Infrared controller" may be used on site to control the opening, closing or stopping of valve.
2) Remote switch control
The switch control provides three input terminals, respectively Open, Close, Stop/Hold: Switch control can realize "Hold" or "Inch" control by external circuits.
3) Remote current control (also known as Remote Auto Control)Users can control the actuator operation by DC4-20mA electric current, to realize precision positioning of valve.
4) Two-wire contro
