Basic Info.
Model NO.
SI
Double-Acting Cylinder Type
Common Cylinder
Bore Size
32-200mm
Working Medium
Filtered Air
Working Pressure
0.1-0.9MPa
Working Temperature
-5~70
Port
Ningbo/Shanghai
Transport Package
Carton/Pallet
Specification
5*5*20cm
Trademark
XCPC
Origin
China
Production Capacity
10000pieces/Month
Product Description

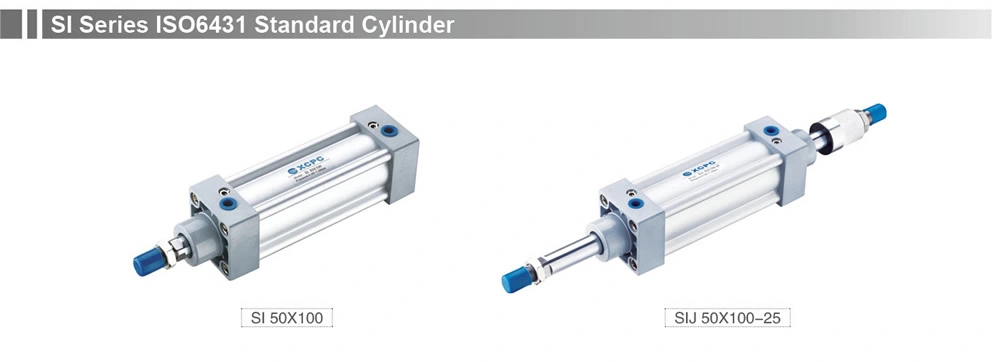

SI Series Standard Cylinder(ISO6431)
1. Ordering Code
2.Specification
3. Overall Dimension

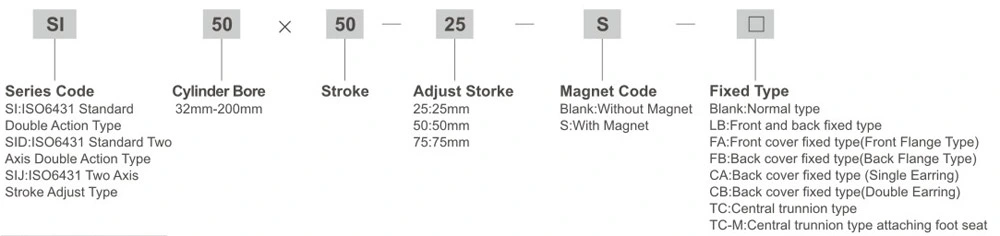

1. Ordering Code
2.Specification
| Bore(mm) | 32 | 40 50 | 63 80 | 100 125 | 160 200 | ||||
| Motion Pattern | Double Action | ||||||||
| Working Medium | Air | ||||||||
| Fixed Type | Normal type FA/Type FB/Type CA/Type CB/Type SDB/Type LB/Type TC/Type | ||||||||
| Working Pressure Range | 0.1~0.9MPa | ||||||||
| Ensured Pressure Resistance | 1.35MPa | ||||||||
| Operating Temperature Range | -5~70ºC | ||||||||
| Operating Speed Range | 50~800mm/s | ||||||||
| Buffer Type | Adjustable Buffer | ||||||||
| Buffer Stroke | 24 | 32 | |||||||
| Port Size | G1/8" | G1/4" | G3/8" | G1/2" | G3/4" | ||||

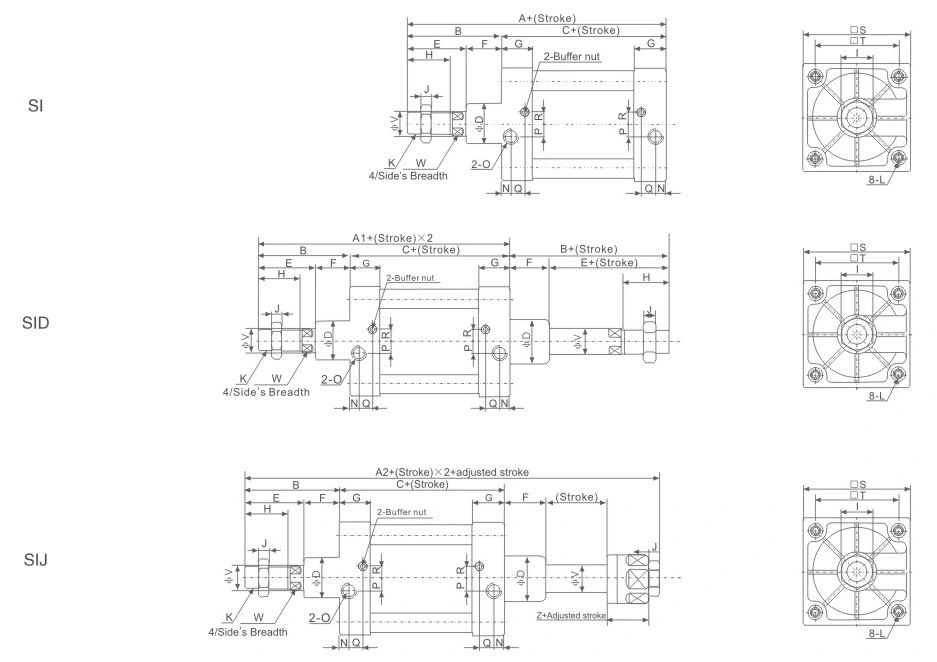

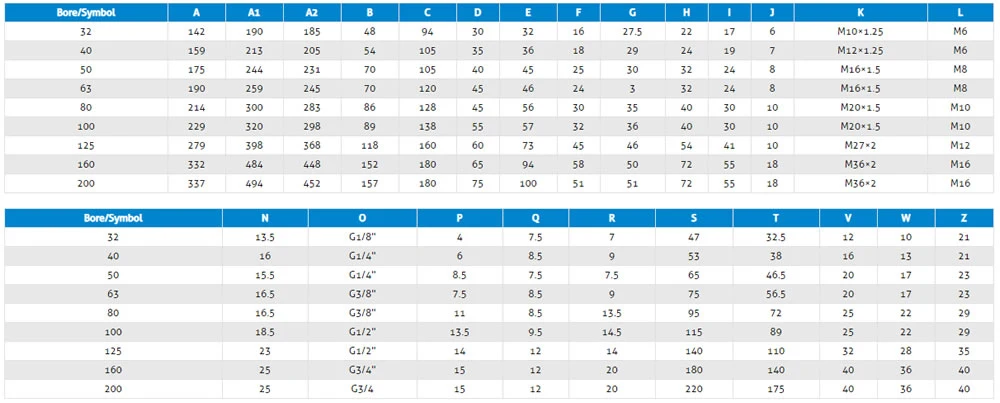

3. Overall Dimension
XCPC pneumatic is the ideal solution for custom pneumatic components because of its ability to be 100% customizable to your business' processes and operations. XCPC pneumatic specializes in design, custom, and manufacture pneumatic components, including pneumatic cylinders, pneumatic actuators, air source treatment(FRL), fluid solenoid valves, directional valves, pneumatic fittings as well as PU/PE/NY tubes.
Choose from our product categories above to get started!
If you have any specific needs for your new project, feel free to contact us. We are always here to support you!
