Welcome to JKmatic :
JKmatic is a technically based manufacturer established since 1994,specilized in R&D and manufacture of industrial water filter & softener equipment etc.. Its patented products include Dsic Filter, diaphragm valve, and Multi-valves system with advanced technic for Media Filter and industrial Softener.
The Culture of JKmatic: Responsibility,Integrity,Perseverance,Principle
Out Tenet is "Quality the highest;Customers the first".Always believe in mutual development and win-win cooperation.

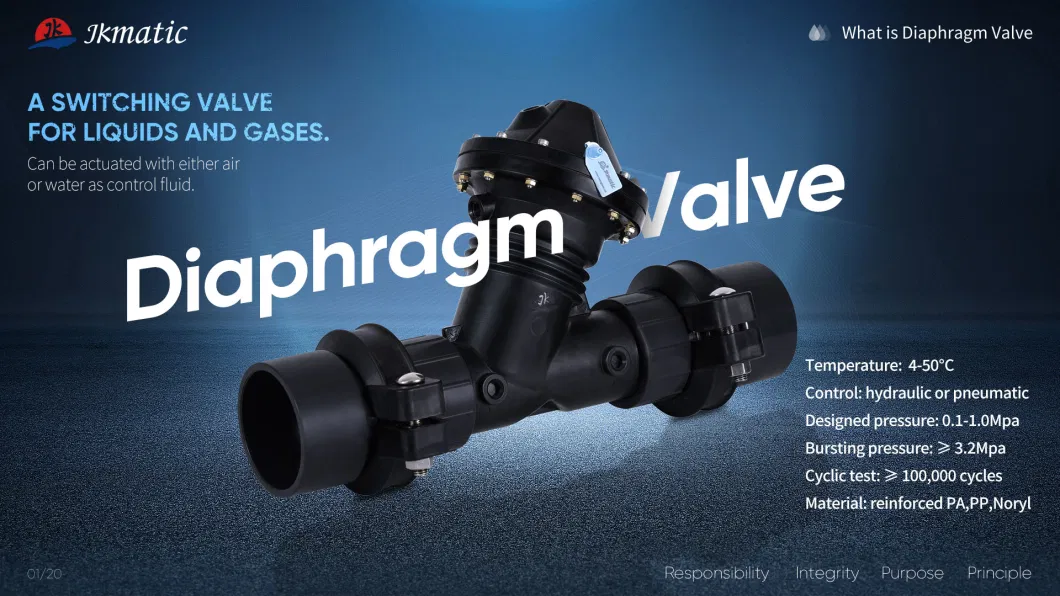

JKmatic PA/PP/Noryl material Y type corrosion resistance Diaphragm valve /Water Control valve/Solenoid Magnetic Valve/Pneumatic Valve for water treatment
Tehnical Advantages:
1) Low Pressure Loss- Y pattern diaphragm valve, with large seat opening and high life disc permits higher flow rates at lower pressure loss than other comparable valves.
2) Separate Diaphragm Chambers-Separate diaphragm chambers protect the valve diaphragm from the flow stream.This allows the diaphragm to be replaced without disrping service.
3) Long Diaphragm Life- Preformed and stress relieved diaphragm minimize fatigue, maximize valve responsiveness and diaphragm lifetime. The Fatigue strength are high up to 130,000times.
4) Corrosion Resistant- All internal parts in contact with media are made of composite materials. Seals are ethylene propylene for better chemical resistance.

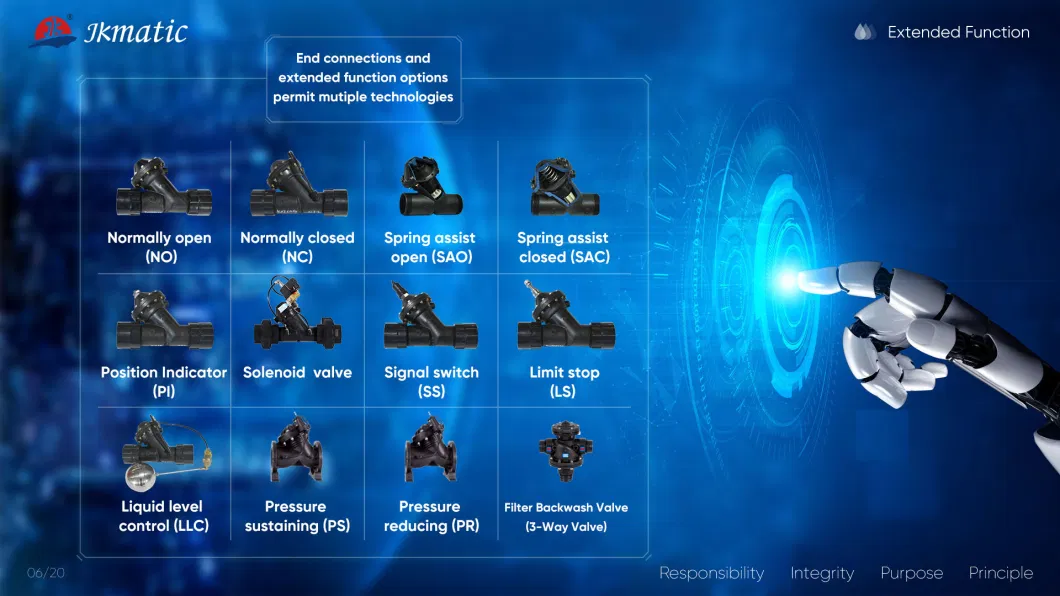

5) Adaptable to a wide range of control devices.
6) Valve is operated by introducing either hydraulic or pneumatic pressure.
7) Working pressure:1-8 bar (15-115psi)
Optional Material : PA,PP and Noryl
Optioanl Size: 1inch,2inch, 3inch, 4inch
After 130,000 times repeated fatigue tests, our Diaphragm Valve still proves very high toughness and strength,greatly improve the overall performance of the equipment.
