Klqd Brand Pneumatic Actuated Stainless Steel Flanged Ball Valve

Description Of Goods:

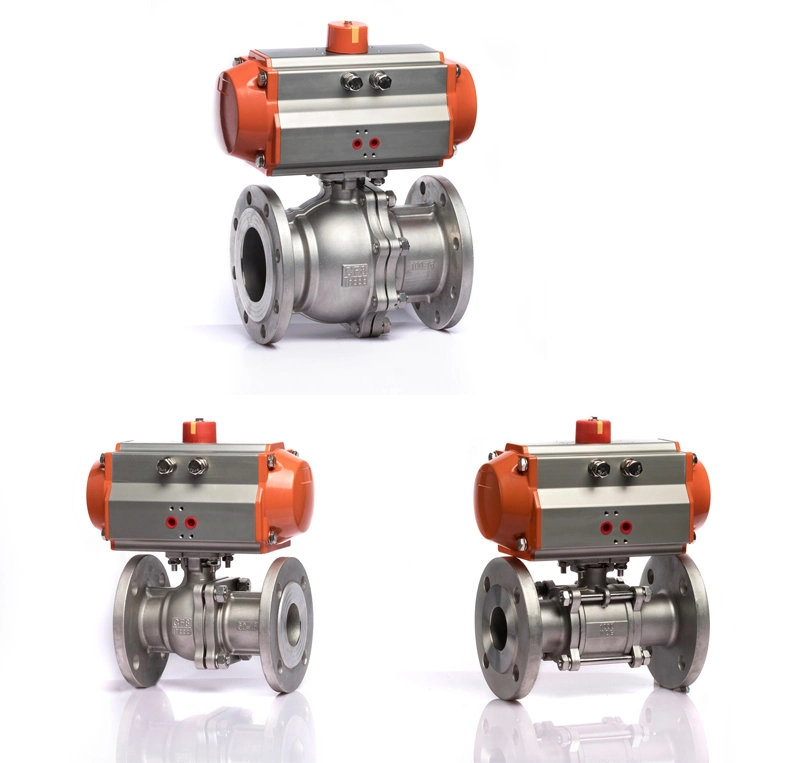

KLQD brand pneumatic actuated stainless steel flanged ball valve

1. Actuator type: Double acting, also have single acting
2. Ball valve size: DN80 flanged type ball valve
3. Connection: flange
4. Fluid: Air, Water, steam, water treatment
5. Pressure class: 1000WOG
6. Payment: L/C, Western Union or T/T
7. Mini order quantity: 1 set

Basic information about Pneumatic actuator flanged ball valve:
Actuator:
Full conformance to the specifications of: ISO5211, DIN3337, VDI/VDE3845, NAMUR.
The extruded high strength aluminum bodies are precision honed and hard anodized yielding an internal bore surface that can provide low coefficient of friction, smooth performance and a long service life.
All acting surfaces are fitted with high quality bearings, resulting in low friction, quite and high cycle life.
The two independent external travel stop adjustment bolts can easily and precisely adjust up to ±5º at both open and closed directions.
Multifunction position indicator with NAMUR standard is convenient for mounting accessories.
Pre-compressed load springs are convenient for safe mounting and disassemble operations.
Die-casted aluminum pistons and end caps are high strength and light weight.
Optional Viton and Silicone seals are available for low and high temperature applications.

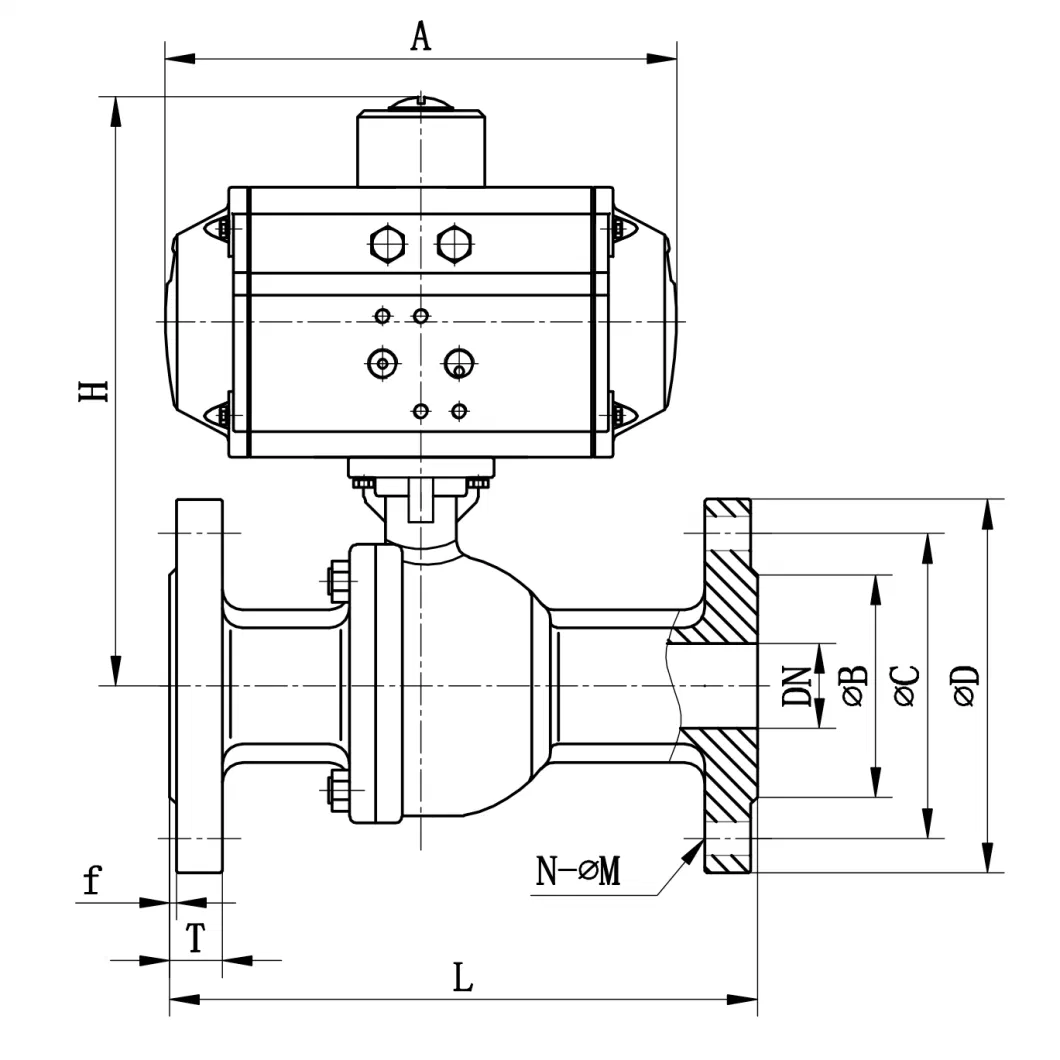

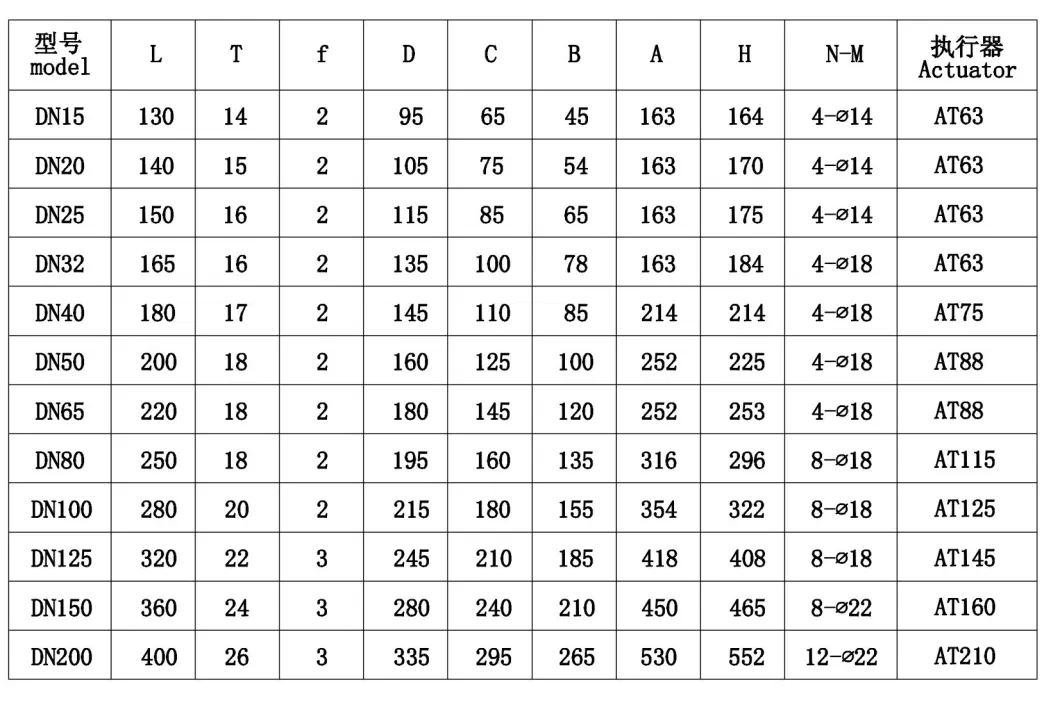

Dimension:

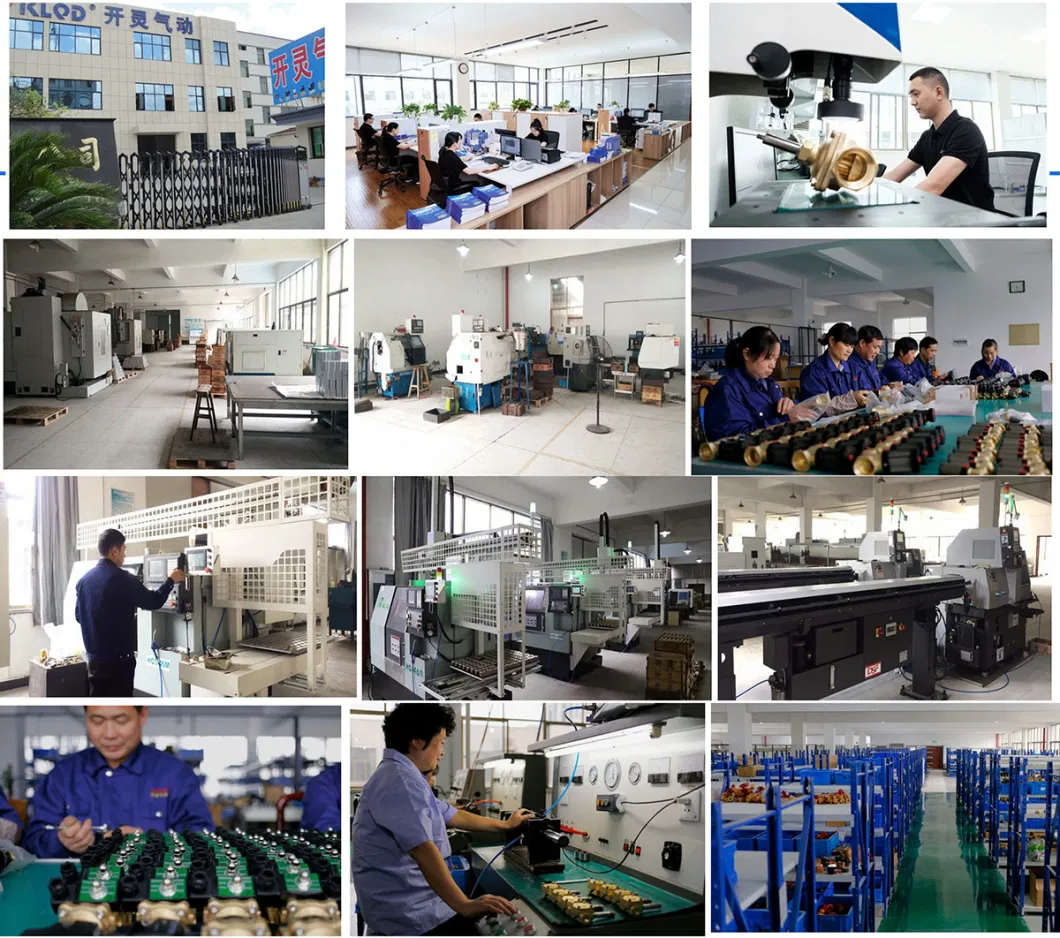

Manufacturing:
1. We have the strict material purchasing management system to make sure all materials are good.
2. High quality and advanced machines to make sure all the dimensions are accurate.
3. 100% quality test to make sure every product in good performance.
4. Standard export packing to protect the goods in shipment.
5. Fast response to your inquiry.

Q & A:
1. What is the MOQ for your products?
There is no special requirement for standard products?

2. How to place the order?
We accept Alibaba trade online and orders sent by air, sea, express.

3. Why your quotation is different with the price listed in web?
We have different price policy to the buyer with different quantity and demand. you can contact with me directly to get a cheaper price.

4. How many days you can send order after payment?
For standard products, we can send around 2~3 days after payment.

5. Do you accept OEM?
Yes. and we can and have the ability to develop new products.

About Ningbo Kailing Pneumatic Co.,Ltd:
Ningbo Kailing Pneumatic Co., Ltd. is a leading Chinese company specializing in the manufacture of solenoid valves and pneumatic components.

High quality of the raw materials, the precision of the parts, the hard tests during and at the end of production are a warranty of reliability and features. Our real strength is to develop customised products to solve any requirement of utilisation. The production runs conforming to the rigorous ISO 9001/2000 requirements .The product range consists of solenoid valves, process valves,Air source treatment units etc ,which are found in a variety of industrial applications such as machinery, metallurgy, food, textile and waste treatment.

we keep creating new innovation to offer the best solutions for your fluid control requirements.
