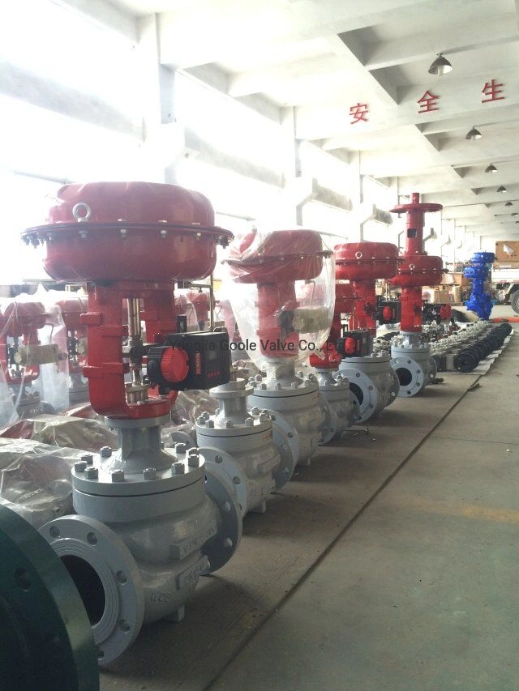

- View of the factory
Basic Info.
Model NO.
HTS /ZJHP
Nominal Diameter
DN20~400mm\Nps3/4~16
Pressure Rating
Pn16~100\Class150~600
Applicable Temperature Range
-196 Deg C~+566 Deg C
Valve Body Type
Straight-Through Type, Angle Type
Actuator Type
Pneumatic Diaphragm Actuator
Connection
Flanged, Butt Welded
Transport Package
Plywood Case
Specification
CE, SGS
Trademark
GOOLE, OEM
Origin
Wenzhou, Zhejiang, China
HS Code
8481804090
Production Capacity
50, 000 PCS/Year
Product Description

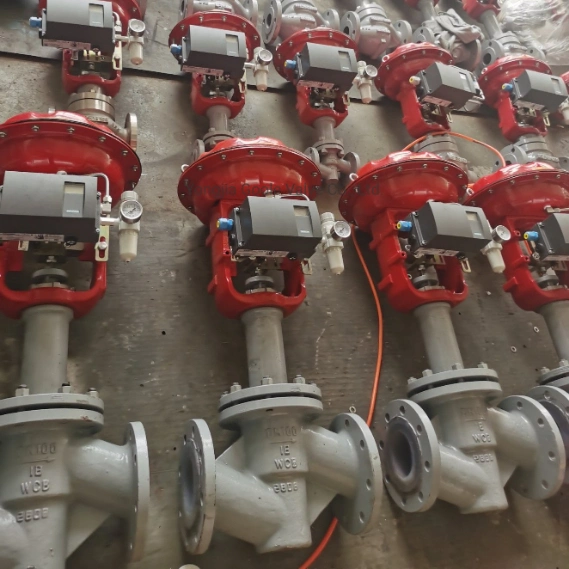

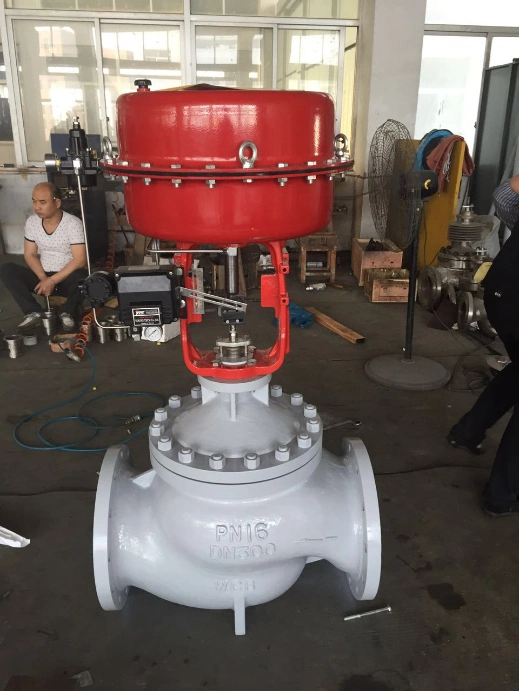

Low Temperature Pneumatic Globe Control Valve / With Extended Stem
This product is composed of the pneumatic multi-springs, pneumatic actuator and the low flow resistance sleeve. This valve uses the balanced valve Disc, the unbalanced force is small, the permission pressure differential is big, and operation is steady. Compared with the ordinary single and double seat-regulating valve, it has low noise, simple structure and convenient assembling and dismantling characteristics. The extended Stem can also be used for low temperature
Its valve shape is small, the body is light, the performance is good, and the capacity is big. So it's the new type general regulating valve product. It is suitable for the common fluid medium and techniques condition industrial control system.
Low Temperature Pneumatic Globe Control Valve / With Extended Stem:
This series Product has Standard type, Regulating Cutting Type, Bellow Seal Type, Jacket Type, etc.
Low Temperature Pneumatic Globe Control Valve / With Extended Stem:
Valve Body/Cap: WCB +PTFE
Valve Core/ Seat: S.S304+PTFE
Packing: PTFE.
Gasket:: Graphite.
Membrane Cover: A3.
Spring: 60Si2Mn.
Valve Stem: S.S 304.
Nut/Bolt:: S.S 304.
Low Temperature Pneumatic Globe Control Valve / With Extended Stem:
This product is composed of the pneumatic multi-springs, pneumatic actuator and the low flow resistance sleeve. This valve uses the balanced valve Disc, the unbalanced force is small, the permission pressure differential is big, and operation is steady. Compared with the ordinary single and double seat-regulating valve, it has low noise, simple structure and convenient assembling and dismantling characteristics. The extended Stem can also be used for low temperature
Its valve shape is small, the body is light, the performance is good, and the capacity is big. So it's the new type general regulating valve product. It is suitable for the common fluid medium and techniques condition industrial control system.
Low Temperature Pneumatic Globe Control Valve / With Extended Stem:
This series Product has Standard type, Regulating Cutting Type, Bellow Seal Type, Jacket Type, etc.
Low Temperature Pneumatic Globe Control Valve / With Extended Stem:
Valve Body/Cap: WCB +PTFE
Valve Core/ Seat: S.S304+PTFE
Packing: PTFE.
Gasket:: Graphite.
Membrane Cover: A3.
Spring: 60Si2Mn.
Valve Stem: S.S 304.
Nut/Bolt:: S.S 304.

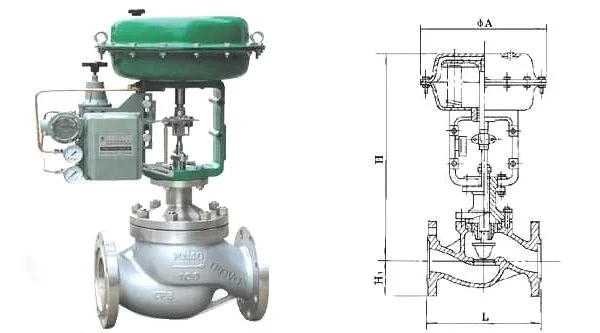

Low Temperature Pneumatic Globe Control Valve / With Extended Stem:
DN | 10 | 12 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |||||
Cv | Linear | 1.8 | 2.8 | 4.4 | 6.9 | 11 | 17.6 | 27.5 | 44 | 69 | 110 | 176 | 275 | 440 | 690 | 1100 | 1760 | ||||
Equal Percentage | 1.6 | 2.5 | 4.0 | 6.3 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | 1600 | |||||
Movement L(mm) | 10 | 16 | 25 | 40 | 60 | 100 | |||||||||||||||
Effective Area(cm2) | 280 | 100 | 600 | 1000 | 1600 | ||||||||||||||||
SignalRange(Kpa) | 20~100, 40~200,80~240;20~60,60~100 | ||||||||||||||||||||
Power Source (MPa) | 0.14~0.4 | ||||||||||||||||||||
Flow Characteristic | Linear or Equal Percentage | ||||||||||||||||||||
Adjustable Ratio | 50:1 | ||||||||||||||||||||
Working Temp. (ºC) | Normal Temp, | -20~200, -40~250, -60~450 | |||||||||||||||||||
Cooling Type | -40~450, -60~450 | ||||||||||||||||||||
High Temp | 450~560 | ||||||||||||||||||||
Low Temp. | -60~100, -100 ~-200, -200 ~-250 | ||||||||||||||||||||
