Basic Info.
Model NO.
FY014
Brand
JDR
Color
Black and Silver
Transport Package
Standard Export Carton
Specification
CE / RoHS
Trademark
JDR
Origin
China
Production Capacity
5000 Sets / Month
Product Description
This is linear actuator used to recliner sofa, electric sofa, bed, etc.

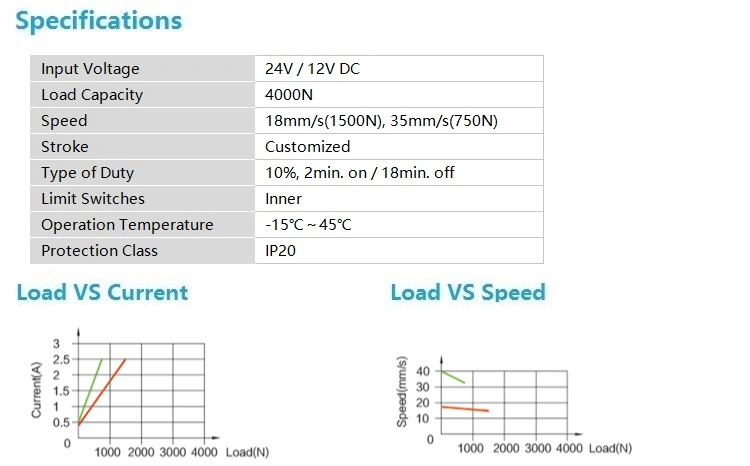

Technical Specifications of Linear Actuator:
Stroke: Customized
Min. Installation dimension: 156mm
Load capacity: 4000N
Free load speed: 18mm/s(1500N), 35mm/s(750N)
Input voltage: 24V DC/12V DC
Limit switch: Inner
Protection grade: IP20
Type of duty: S2-10min
Operation temperature: -15~45 centigrade
Features:
Material: Aluminum and plastic
Color: Black
Warranty: Two years
Certification: CE/EMC+LVD
Picture of product
If you have any demand,please feel free to contact us.
Technical Specifications of Linear Actuator:
Stroke: Customized
Min. Installation dimension: 156mm
Load capacity: 4000N
Free load speed: 18mm/s(1500N), 35mm/s(750N)
Input voltage: 24V DC/12V DC
Limit switch: Inner
Protection grade: IP20
Type of duty: S2-10min
Operation temperature: -15~45 centigrade
Features:
Material: Aluminum and plastic
Color: Black
Warranty: Two years
Certification: CE/EMC+LVD
| name: | linear actuator |
| model: | fy014, 4000N |
| input voltage: | 12V or 24V dc |
| load capacity: | 4000N |
| free load capacity: | 18mm/s(1500N), 35mm/s(750N) |
| stroke: | Customized |
| standard stroke: | 330mm |
| min. installatioin dimension: | 156mm |
| type of duty: | S2-10min |
| protection grade: | IP 20 |
Picture of product
If you have any demand,please feel free to contact us.
