Basic Info.
Model NO.

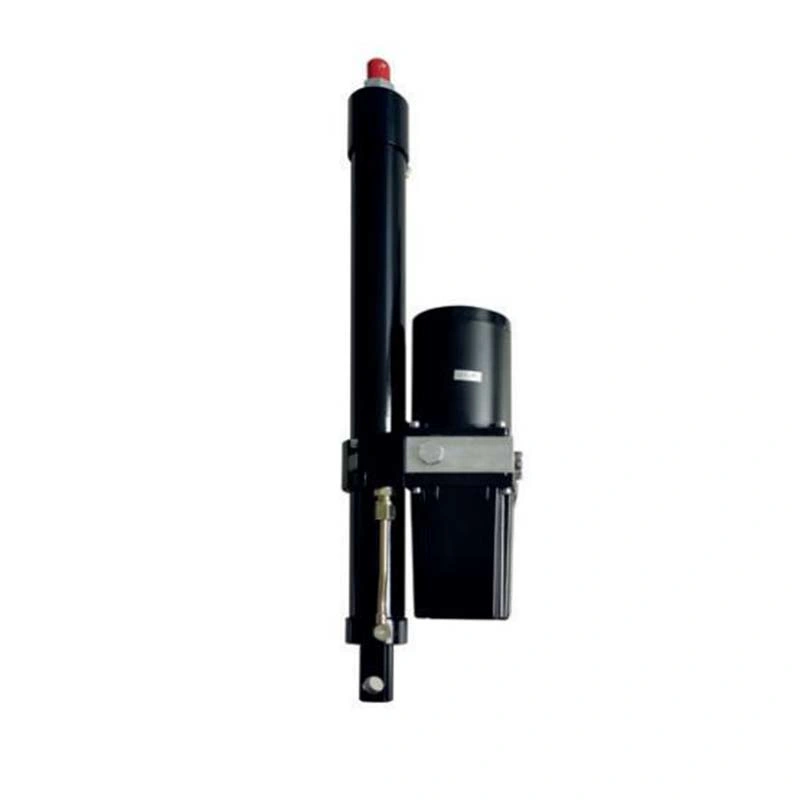

TG32-350X electro hydraulic linear actuator
Maximum Lift
1t
Maximum Retraction Force
0.5t
Lifting Speed
20~25mm/S
Power
800W
Transport Package
Pallet
Specification
600*200*130
Trademark
SAIVS or Customized
Origin
China
HS Code
8412210000
Production Capacity
2000PCS/Month
Product Description
1 YEAR WARRANTY AND EXCELLENT SERVICE
24 HOURS OF SMOOTHLY COMMUNICATION
Products Description
Factory customized Powerful DC Motor Hydraulic Linear Actuators, Electro Hydraulic Linear Actuators, Electro Hydraulic Push Pull Hold Linear Actuator, hydraulic push rod
Hydraulic Linear Actuators features :

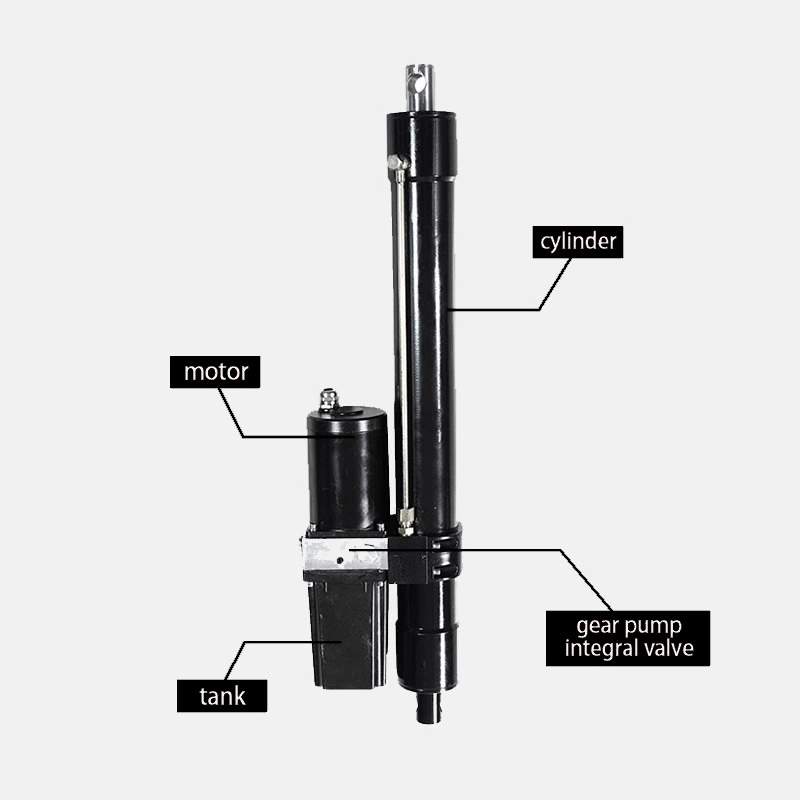

Hydraulic actuator features high integration with hydraulic station, oil cylinder, self-locking mechanism, overflow valve, reversing valve in one, can be used directly once powered on. Stable performance hydraulic push rod with a wide selection of 12V/24V/48VDC, 220VAC input voltages, jacking force 500kg-4.5T, 50-450mm stroke length, noise<80dB. Installation size and cylinder stroke can be customized according to special requirements.
Hydraulic Linear Actuator Features
The hydraulic electric actuator comes with over-current, overload, overheat protection, hydraulic cylinder two-way pressure self-locking.
Small hydraulic actuator with high performance and stability, is highly integrated with self-locking valve, reversing valve, over-pressure valve.
Electric hydraulic linear actuator is convenient to use, no other hydraulic components are needed. Users can use it once power supply is connected.
Customizable hydraulic electric actuator is available. Pressure output interface and mounting dimensions can be customized according to requirements.
Hydraulic electric actuator is widely used in electric tricycles, sanitation vehicles, lifting platforms, assembly lines, industrial robots, agricultural machinery and industrial automation equipment, etc.
Hydraulic Linear Actuators features :
Hydraulic actuator features high integration with hydraulic station, oil cylinder, self-locking mechanism, overflow valve, reversing valve in one, can be used directly once powered on. Stable performance hydraulic push rod with a wide selection of 12V/24V/48VDC, 220VAC input voltages, jacking force 500kg-4.5T, 50-450mm stroke length, noise<80dB. Installation size and cylinder stroke can be customized according to special requirements.
Hydraulic Linear Actuator Features
The hydraulic electric actuator comes with over-current, overload, overheat protection, hydraulic cylinder two-way pressure self-locking.
Small hydraulic actuator with high performance and stability, is highly integrated with self-locking valve, reversing valve, over-pressure valve.
Electric hydraulic linear actuator is convenient to use, no other hydraulic components are needed. Users can use it once power supply is connected.
Customizable hydraulic electric actuator is available. Pressure output interface and mounting dimensions can be customized according to requirements.
Hydraulic electric actuator is widely used in electric tricycles, sanitation vehicles, lifting platforms, assembly lines, industrial robots, agricultural machinery and industrial automation equipment, etc.
| Model | TG32-350X-300W | TG32-350X-800W |
| Input Voltage* | DC220V/DC12V/24V/48V | DC220V/DC12V/24V/48V |
| Power | 300W | 800W |
| Stroke Length * | 350mm | 350mm |
| Jacking Force | 500KG | 1T |
| Retracting Force | 200KG | 0.5T |
| Speed | 20-25mm/s | 20-25mm/s |
| Operating Temprature | -20°C~+60°C | -20°C~+60°C |
| Duty Cycle | Long-term continuous use 4 mins/time | Long-term continuous use 6 mins/time |
| Protection Grade | IPx6 | |
| Certification | CE | |
| Warranty | 1 year | |
| Weight | 7.8KG 8KG | |

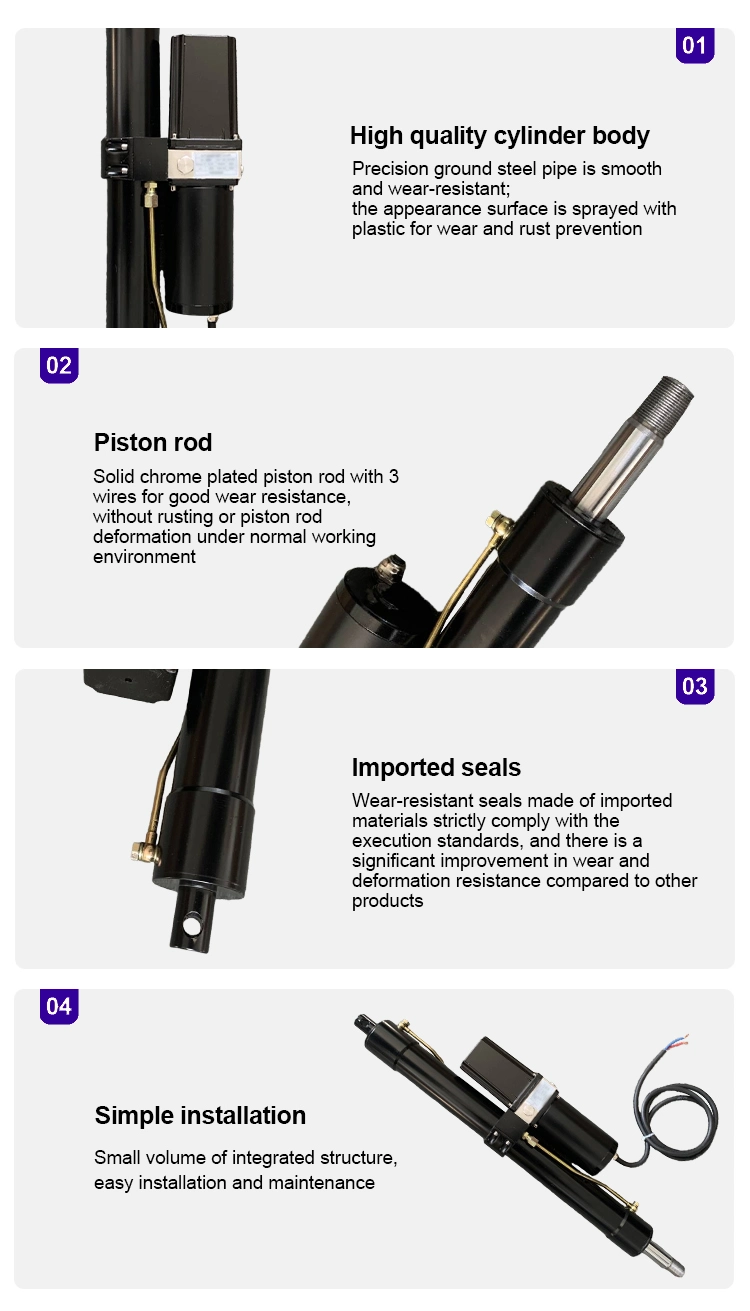

Details Images
Application
Company Profile
Product packaging
Certifications
FAQ
Q: Are you a trading company or a manufacturer?
A: We are a factory with more than 20 years' experience.
Q: How long for delivery?
A: Generally it is 15-30days as we are a customized service we confirm with the customer when place an order.
Q: What is the MOQ?
A: It depends on what you are buying. Normally, our minimum order is one 20' full container and LCL container (less than a
container load) can be acceptable.
Q: Can you customize my products?
A: Yes, we can customized products with your design drawings like DWG, DXF, DXW, IGES, STEP, PDF etc.
Q: What is your terms of payment?
A: 30% T/T in advance, balance before shipment, or as per discussion.
Q: What about your quality control?
A: * . Checking the raw material after they reach our factory-----Incoming quality control(IQC)
* . Checking the details before the production line operated
* . Have full inspection and routing inspection during mass production----In-process quality control(IPQC)
* . Checking the goods after they are finished----Final quality control(FQC)
* . Checking the goods after they are finished----Outgoing quality control(QC)
* . 100% inspection and delivery before shipment
