Product Description

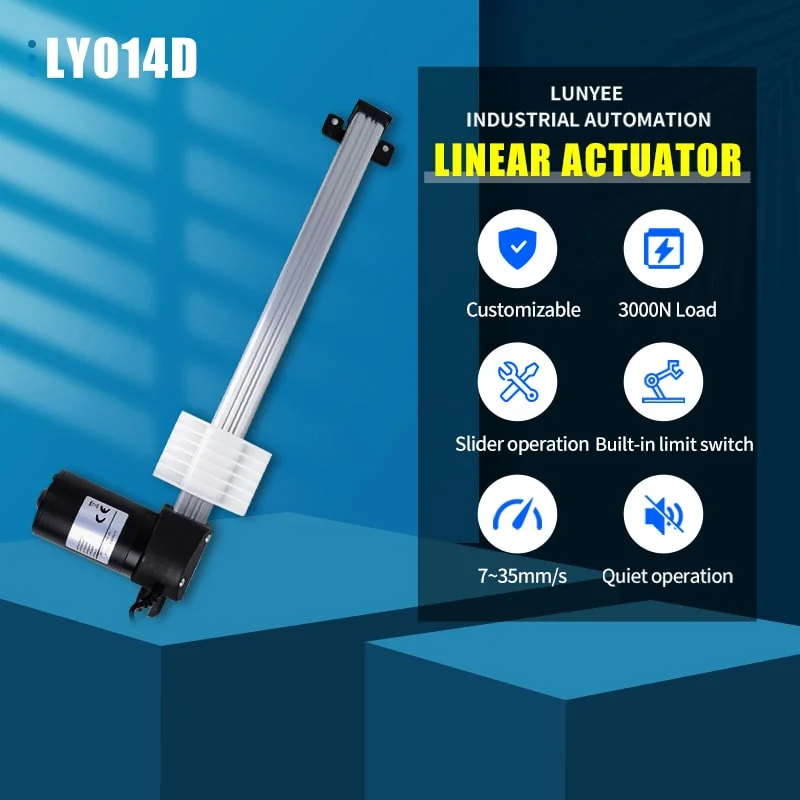

100~1200mm stroke 12V/24V small linear actuator furniture medical electric linear actuators 6000n
LY014D is a sliding linear actuator driven by a low-noise permanent magnet DC motor, built-in bidirectional linear switch, 24V/12V voltage optional, maximum load 3000N, working environment temperature -15ºC~45ºC. It has the characteristics of small size, light weight, large torque and large stroke. The range of travel options is large, and the height adjustment of the lifting position can be realized with the controller, which meets the needs of free adjustment of the lifting height of the product. It is most widely used in display racks, medical equipment, mechanical equipment and other fields.
If the product model cannot meet your requirements, please feel free to inform us of your requirements, such as stroke,voltage,usage, thrust, speed and quantity. Our company also has other types of linear actuators for you to choose and can be customized according to your requirements!
| Item | Value |
| Warranty | 3months-1year |
| Place of Origin | Jiangsu,China |
| Brand Name | Lunyee |
| Model Number | LY014D |
| Usage | TV Lift, Cabinet Lift, Recliner Sofa, Chair, etc. |
| Type | GEAR MOTOR |
| Construction | Permanent Magnet |
| Commutation | Brush |
| Protection Class | IP20 |
| Speed(RPM) | 2800RPM |
| Current | 0.4~2.5A |
| Efficiency | IE 1 |
| Input Voltage | 24V / 12V DC |
| Output Power | 50W |
| Load Capacity | 3000N |
| Speed | 7mm/s(3000N) , 35mm/s(750N) |
| Type of Duty | 10%,2min.on / 18min.off |
| Limit switches | Inner |
| Operation Temperature | -15ºC~45ºC(Customize) |
| Installation dimension | stroke+135mm |
| Stroke | Customize |
| Color | Black/Gray |
| Certification | CE&RoHS |
Shopping guide:
The second step is to determine the stroke of the putter, which is the range of motion of the putter, which can be customized.
The third step is to determine the pushing speed of the putter. Different speeds correspond to different strengths. The details are introduced. You can consult online or leave a message for me.
The power of the putter is related to the speed. The faster the speed, the smaller the power, and the slower the speed, the greater the power. The two are inversely proportional. Buyers can choose the appropriate speed and thrust motor according to the following parameter table:
1. Furniture field:
Sofas, elderly chairs, lazy chairs, foot bath chairs, household beds, beauty beds, massage chairs, massage beds, TV stands, electric beds, theater sofas, etc.
2. Office furniture field:
Office desks, smart desks, cabinets, office chairs, projection instruments, laboratory tables, workbenches, laboratory tables, etc.
Lunyee Group focuses on the design, development, production and sales of industrial factory automation system solutions. Our main products are AC motors, DC motors and linear actuators. Among them, AC motors mainly include small AC geared motors and micro AC geared motors; DC motors mainly include brushed DC motors and brushless DC motors; linear actuator series mainly include medical electric actuators, industrial actuators, furniture actuators, and controllers System, manual controller, etc.
Q: Are you a trading company or a manufacturer?
A: We are a motor manufacturer in China for 15 years.
Q: How to order?
A: Send us an inquiry → receive our quotation → negotiate details → confirm samples → sign a contract/deposit → mass production → prepare a car → balance/delivery → further cooperation
Q: How about the sample order?
A: Our company provides sample gift service. After you contact us to place the sample order, after the formal order is placed, our company will refund the sample order fee.
Q: How long does it take for delivery, production and transportation?
A: The delivery time depends on the quantity you ordered. Usually 15-25 working days
Q: My package is missing products. what can I do?
A: Please contact our support team, we will confirm your order with the package contents. We are sorry for bringing you inconvenience.
Q: How to confirm payment?
A: Our company accepts payment by T/T and PayPal. If you need other payment methods, please contact us in advance. Our company can accept a deposit of 30%-50%, and the balance can be paid before shipment. If you have other questions, please feel free to contact us, we are happy to help you answer.
