Basic Info.
Model NO.
K06
Application3
Scooter/Fan/Bicycle/Fan/Home Appliances
Transmission
Injection Plastic Gear
Transport Package
Box & Carton
Specification
DN15/20/25 mm
Trademark
Leking
Origin
China
Production Capacity
250000PCS/Month
Product Description
Motor Actuator With Gearbox For Mini Motorized Ball Valve 2NM DC3.6V
General Description:
The zone valve, mini motorized ball valve, prepay water meter's ball valve need be driven by an acutator motor. Our motor acutator has toruqe output of 2NM, or with proper gear reduction ratio and motor, its torque output is from 1.8NM minimally. The larger toqure can be achieved for driving bigger valve: DN15, DN20, DN25, DN32, DN40, DN50. Larger size ball valve can be supplied too. The gearbox of motor actuator is with metal gear, very sturdy design ensures the long service cycles more than 20000 times. Over years, we supplied to many brand water meter factories in China.
Applications: mini motorized ball valve, prepaid water meter, AMR water meter, ultrasonic water meter, heat meter, HVAC, zone valve, heat control valve, etc.
Technical data-Model K06
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idling: <25 mA @ 3.6V, 23ºC
3. Current with loading: <550 mA (motor #320)
4. Torque: >1.8 NM (2400:1); >4.5 NM (5000:1)
5. Open/close time: <10S (2400:1); <20s (5000:1)
6. Velocity reduction ratio: 1500:1 (DN15/20mm)
7. Protection: 0
Wiring diagram
Factory overview
-Production facilities
General Description:
The zone valve, mini motorized ball valve, prepay water meter's ball valve need be driven by an acutator motor. Our motor acutator has toruqe output of 2NM, or with proper gear reduction ratio and motor, its torque output is from 1.8NM minimally. The larger toqure can be achieved for driving bigger valve: DN15, DN20, DN25, DN32, DN40, DN50. Larger size ball valve can be supplied too. The gearbox of motor actuator is with metal gear, very sturdy design ensures the long service cycles more than 20000 times. Over years, we supplied to many brand water meter factories in China.
Applications: mini motorized ball valve, prepaid water meter, AMR water meter, ultrasonic water meter, heat meter, HVAC, zone valve, heat control valve, etc.
Technical data-Model K06
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idling: <25 mA @ 3.6V, 23ºC
3. Current with loading: <550 mA (motor #320)
4. Torque: >1.8 NM (2400:1); >4.5 NM (5000:1)
5. Open/close time: <10S (2400:1); <20s (5000:1)
6. Velocity reduction ratio: 1500:1 (DN15/20mm)
7. Protection: 0
Wiring diagram
| Wire color | Description |
| Blue | signal of switch on position, open valve |
| White | signal of public terminal |
| Yellow | signal of switch off position, close valve |
| Red | power terminal, + positive |
| Black | power terminal, - negative |
Factory overview

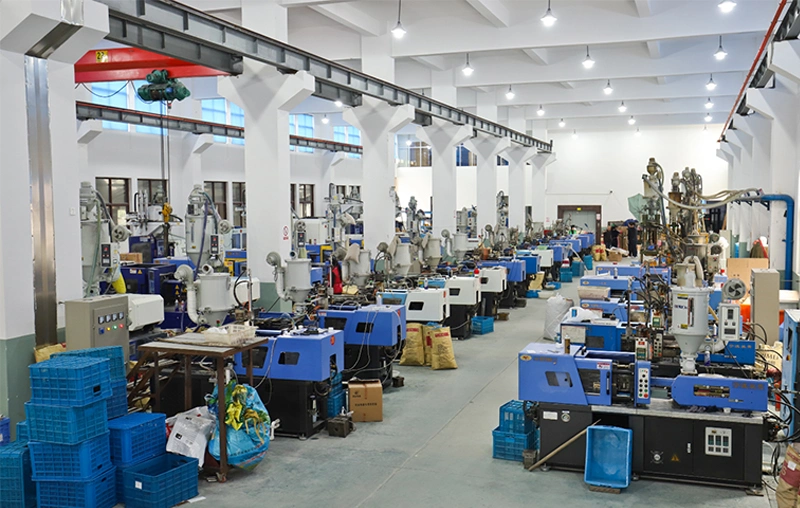

-Production facilities

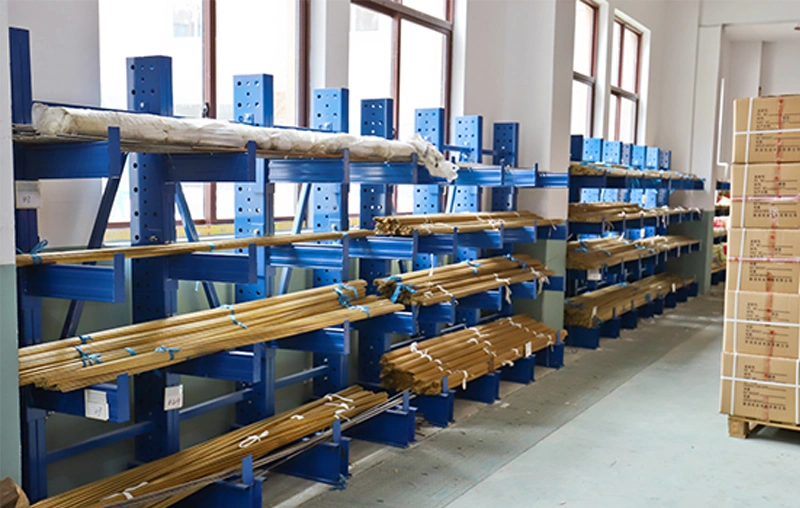

Raw material
Warehouse

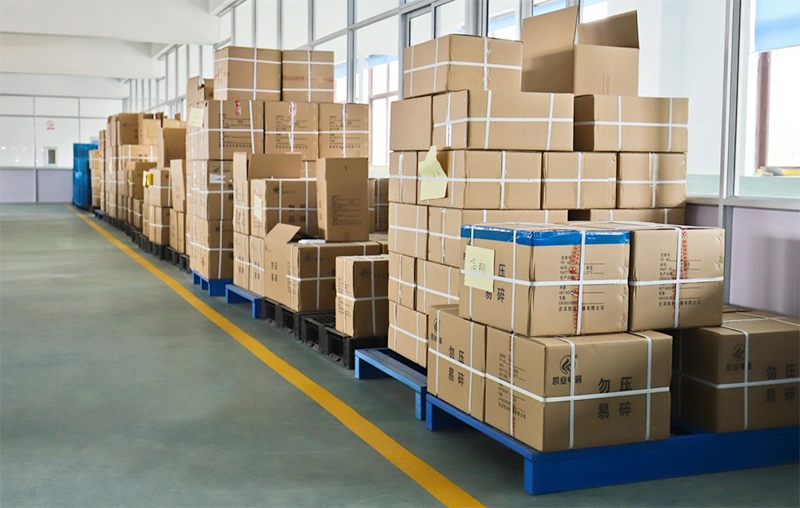

Finished warehouse
