Electric butterfly valve is a type of valve (valve plate) that rotates around a fixed axis perpendicular to the channel. It is composed of a rotary angular stroke electronic electric actuator and a butterfly valve. It belongs to the rotary high-performance regulating or switching valve category, and receives input from industrial automation control instruments for current signals or electric pressure signals. It can achieve proportional adjustment or two-position switch control of the fluid medium in the process pipeline, thereby achieving flow, pressure, and Automatic control of parameters such as temperature and liquid level. Widely applicable to media such as gas, liquid, turbid liquid, concentrated slurry or ash powder, suspended particles, etc.
Motorized wafer butterfly valve features:
Single Eccentric Disc-Shaft.Anti-Blow Out Stem.
Bi-Directional.
Fire safe Design.

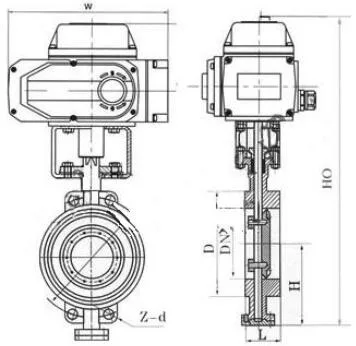

Main External Dimensions.
| DN(mm) | Dimensions(mm) | |||||
| L | D | D1 | H | H0 | Z-Φd | |
| 50 | 43 | 165 | 125 | 82 | 260 | 4-18 |
| 65 | 46 | 185 | 145 | 95 | 280 | 8-18 |
| 80 | 49 | 200 | 160 | 108 | 355 | 8-18 |
| 100 | 56 | 220 | 190 | 125 | 390 | 8-23 |
| 125 | 64 | 250 | 220 | 138 | 490 | 8-25 |
| 150 | 70 | 285 | 250 | 198 | 630 | 8-25 |
| 200 | 71 | 340 | 310 | 236 | 690 | 12-25 |
| 250 | 76 | 405 | 370 | 276 | 830 | 12-30 |
| 300 | 83 | 460 | 430 | 308 | 930 | 16-30 |
| 350 | 92 | 520 | 490 | 340 | 1010 | 16-34 |
| 400 | 102 | 580 | 550 | 374 | 1070 | 16-34 |
| 450 | 114 | 640 | 600 | 384 | 1140 | 20-34 |
| 500 | 127 | 715 | 660 | 448 | 1200 | 20-41 |
| 600 | 154 | 840 | 770 | 490 | 1340 | 20-41 |
| 700 | 165 | 910 | 875 | 542 | 1600 | 24-48 |
| 800 | 190 | 1025 | 990 | 607 | 1780 | 24-48 |
| 900 | 203 | 1125 | 1090 | 665 | 1920 | 28-54 |
| 1000 | 216 | 1255 | 1210 | 731 | 1960 | 28-58 |
| 1200 | 254 | 1485 | 1420 | 842 | 2360 | 32-58 |
