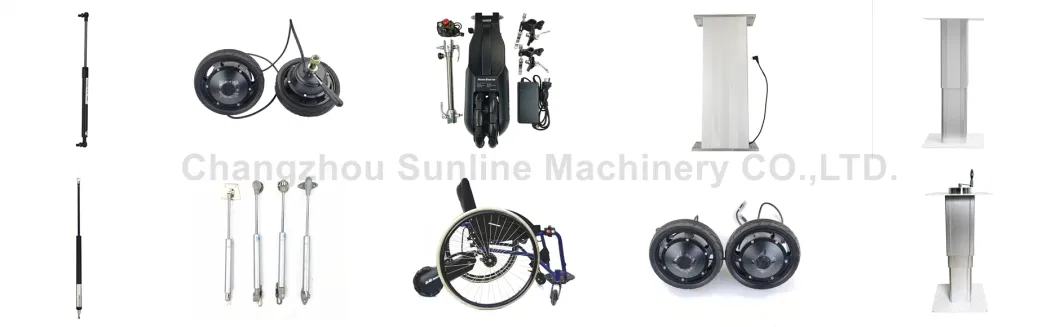

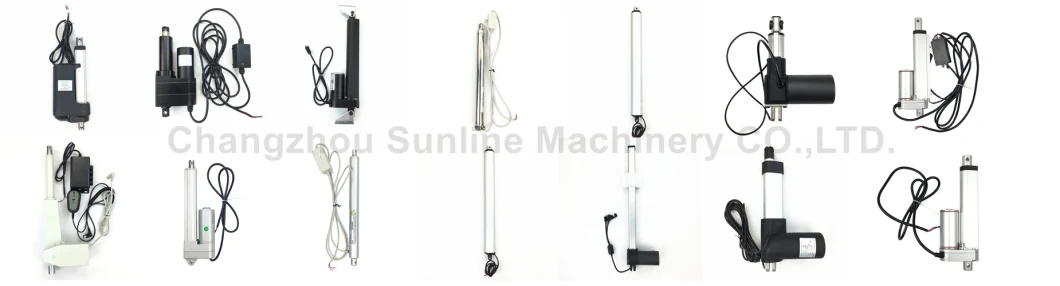

- Other products
- Customer field visit
- Packing picture
- Factory picture
Basic Info.
Product Description
All aluminum alloy and iron material wrapped, material structure design is close, the use of DC reduction gear deceleration, built-in micro switch, can realize automatic stop after travel, travel can be customized, simple installation, easy to operate; Can be widely used in agriculture, construction, mining, forestry, road operations, railway equipment and other complex working conditions, can effectively replace the hydraulic pneumatic equipment.
• Operating temperature -30°C to +65°C
• Aluminum alloy housing and stainless steel expansion tube
• Protection level IP65
• Built-in micro switch
• Stroke range: 50mm~1000mm
• Speed range: 5mm/s~60mm/s
• Maximum thrust 12000N
• Operating frequency 10%
• Maximum self-locking force: 15000N
• Maximum working life of 50,000 times

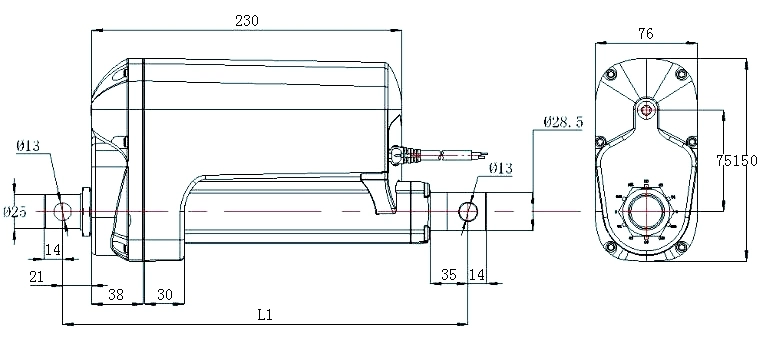

L1(minimum mounting distance) =190mm+ stroke
| Stroke(mm) | 50 | 100 | 300 | 500 | 700 |
| L1(minimum mounting distance) | 240 | 290 | 490 | 690 | 890 |
| Weight(kg) | 4.7 | 5.5 | 7.1 | 8.7 | 10.6 |
Changzhou Sunline Machinery CO.,LTD. was founded in 2010,and located in ZouQu Town,a town with sppedy transportation, developed economy and gathering of talents,only hundreds kilometers to Shanghai,Nanjing and Hangzhou with Shanghai and Nangjing High Speed Way and Railway,and 20 minutes to Changzhou Airport,around this city,there are Shanghai , Changzhou and Zhangjiagang sea port.Now Sunline has more than 100 employees with over 20 professionals,total 20 million capital and 12000 square meters construction area.Company invests full-automatic motor production line and professional mould and injection facility.Now we have 5 advanced assembly lines and specilized inspection equipments, our products are widely used in recliner chair,office furniture ,fitness equipment,medical care and automobile etc areas and sold to Europe,USA and Southeast areas. As a professional linear actuator manufacturer ,Sunline can provide customerized services to achieve lifting,extend and adjust functions,at the same time,we can provide technical information consulting at products develop and assembly. The company established a research and development team by professional electrical engineers,mechanical engineers and electrical engineers to ensure to meet the requurement from customers and make perfect solution. Sunline will insist the principle of "high standard,high quality ,lasting improvement and striving to the best"and focus on "customer first",as our operation ideas"profession from dedication and outstanding from devoting"saying, we will provide excellent products and service and work hard to be the most specialized linear actuator manufacturer. We will make unceasing innovation and strive to first-class manufacturer in the industry,to provide you high qualified products and satisfied service is our target.
