Basic Info.
Model NO.
FY017
Usage
Window Open
Item No.
Fy017 Linear Actuator
Load Capacity
1200n
Mini Install Dimension
S+105mm
Stroke
Customized
Speed
5-120mm/S
Type of Duty
S2-10min
Limit Switches
Inner
Warranty
2 Years
Transport Package
Standard Export Carton
Trademark
Feiya/JDR
Origin
China
Production Capacity
10000 PCS Per Month
Product Description

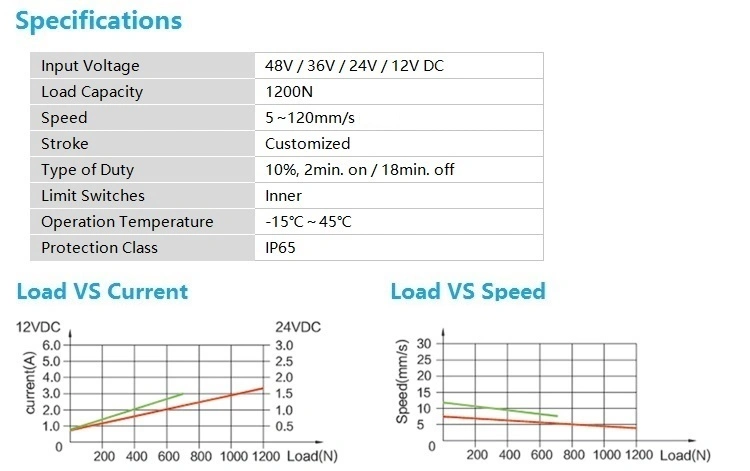

Specifications:
1) Voltage: 48V / 36V / 24V / 12V DC
2) Capacity: 1200N
3) Speed: 5-120mm/s
4) Stroke: Customized
5) Type of duty: 10% or 2 minutes continuous use followed by 18 minutes not in use
6) Protection class: IP65
7) Built-in limit switches, not adjustable after leave factory
8) Certification: CE, RoHS,SGS
Features:
1) Powder Coated Steel Outer Tube
2) Lubrication for life time
3) Aluminum extension and outer tubes
4) Enhanced Corrosion Resistance
5) Powder Coated Aluminum Alloy Housing
Quality Guarantee
We provide 2 year warranty for JDR Linear Actuators.
We provide spare parts free or replace a new one on condition that there is any breakdown with convincing evidence.
Maintenance service
No matter what brands of your linear actuators, no matter where your linear actuators are from, full way service and technical Support could be supplied by JDR.
JDR QC Team
JDR QC team consists of more than 10 professional people to ensure 100% products high quality.
Contact Us
We highly appreciate your any enquiry by email, by fax or by Instant message.
We will reply your email or fax within 18 hours.
Please feel free to call us at any time if there is any question.
Transportation
All available shipping ways could be applied, by courier, by air or by sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you before the goods arrive.
We have a wide range of Linear Actuator and Linear Motor for worldwide customer.
1) Voltage: 48V / 36V / 24V / 12V DC
2) Capacity: 1200N
3) Speed: 5-120mm/s
4) Stroke: Customized
5) Type of duty: 10% or 2 minutes continuous use followed by 18 minutes not in use
6) Protection class: IP65
7) Built-in limit switches, not adjustable after leave factory
8) Certification: CE, RoHS,SGS
Features:
1) Powder Coated Steel Outer Tube
2) Lubrication for life time
3) Aluminum extension and outer tubes
4) Enhanced Corrosion Resistance
5) Powder Coated Aluminum Alloy Housing
Quality Guarantee
We provide 2 year warranty for JDR Linear Actuators.
We provide spare parts free or replace a new one on condition that there is any breakdown with convincing evidence.
Maintenance service
No matter what brands of your linear actuators, no matter where your linear actuators are from, full way service and technical Support could be supplied by JDR.
JDR QC Team
JDR QC team consists of more than 10 professional people to ensure 100% products high quality.
Contact Us
We highly appreciate your any enquiry by email, by fax or by Instant message.
We will reply your email or fax within 18 hours.
Please feel free to call us at any time if there is any question.
Transportation
All available shipping ways could be applied, by courier, by air or by sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you before the goods arrive.
We have a wide range of Linear Actuator and Linear Motor for worldwide customer.
| Name: | Industrial Linear Actuator |
| Model: | FY017 |
| Usage: | Electric Window, Skylight Canopy, other Application use |
| Input Voltage: | 12v or 24v DC |
| Load Capacity: | 750N |
| Free Load Speed: | 40mm/s |
| Standard Stroke: | 120mm |
| Installation Dimension: | 100 --- 330mm |
| Type of Duty: | S2 -- 10 min (2 minutes work, 18 minutes rest) |
| Limit Switch: | Builtin / Inner (can not be adjust after left factory) |
| Work Temp.: | -26 to 65 centigrade |
| Protection Grade: | IP54, IP65 |
| Certificate: | CE / EMC + LVD, RoHS |
| Control Box Used: | Control 1 Linear Actuator: FYK011-1, FYK012-1, FYK015-1, FYK016-1, FYK017A |
| Control 2 Linear Actuators: FYK011-2, FYK012-2, FYK015-2, FYK016-2 | |
| Control 3 Linear Actuators: FYK011-3, FYK012-3, FYK016-3 | |
| Control 4 Linear Actuators: FYK012-4, FYK016-4 | |
| Control 5 Linear Actuators: FYK012-5, FYK016-5 | |
| Control 6 Linear Actuators: FYK016-6 | |
| Handset Used: | All FYH Series Handset, Pls contact us for detail pictures. |
