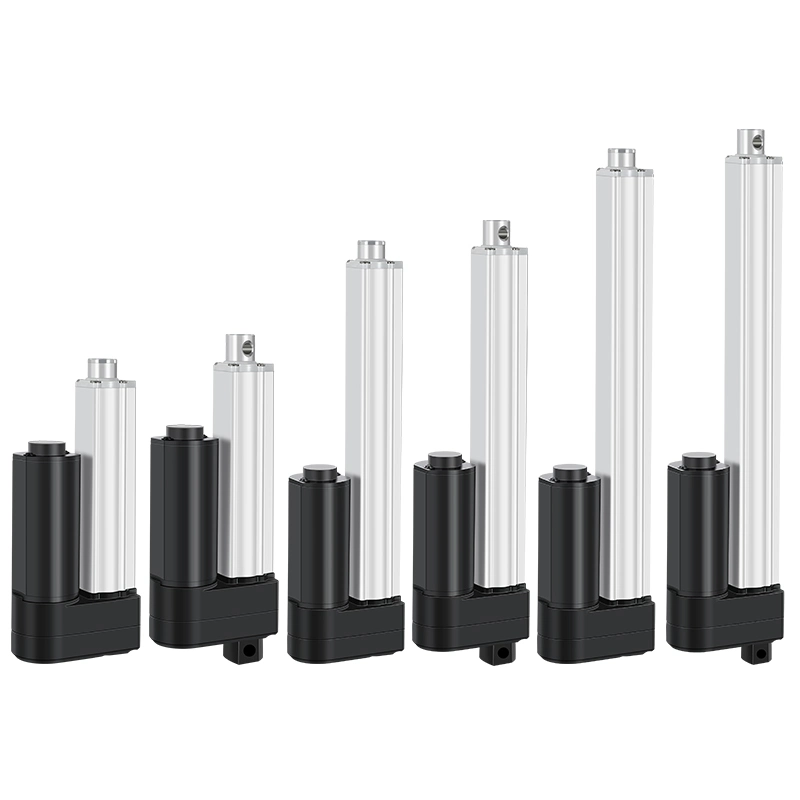

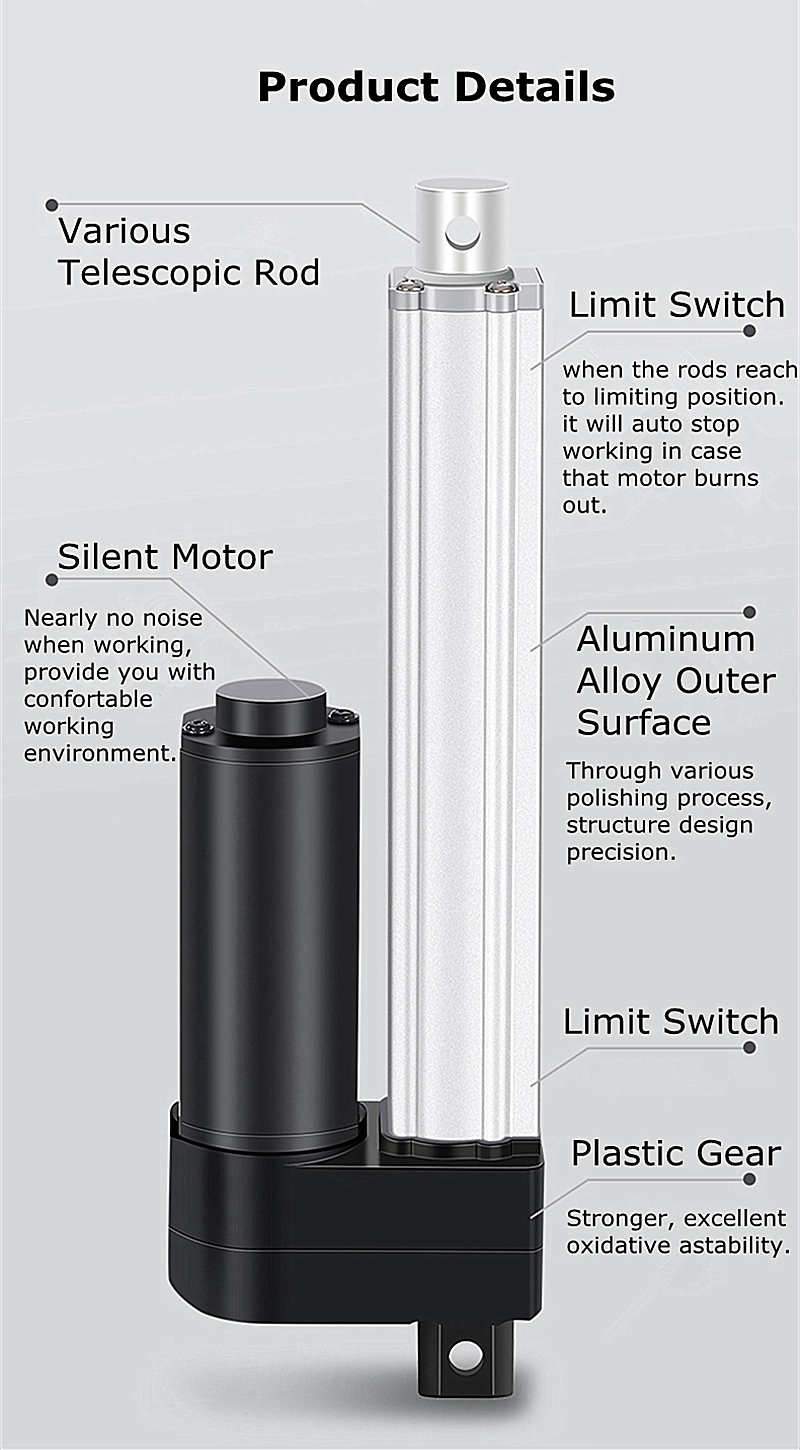

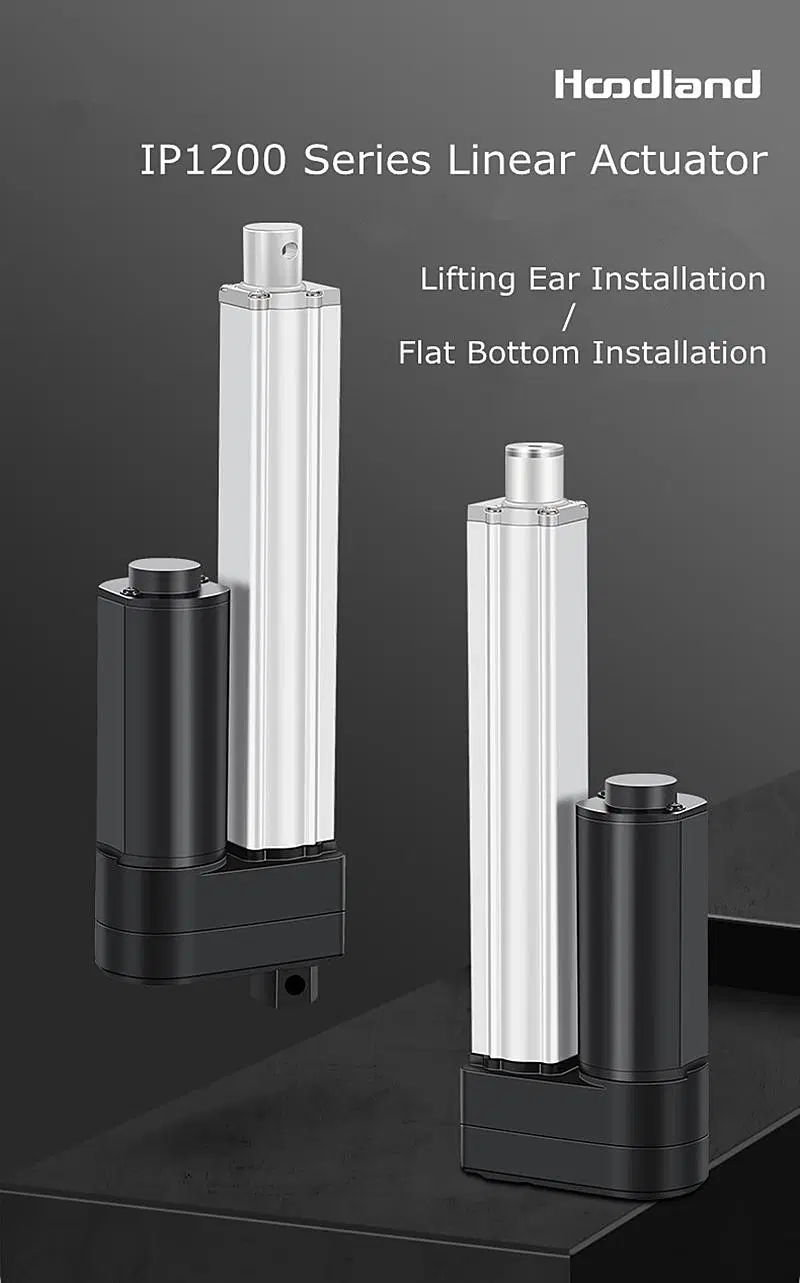

- Detailed Photos
Basic Info.
Model NO.
IP1200-100
Type of Duty
S2-10min
Load
Max 250kg
Gears
Plastic Gear
Transport Package
2PC/CTN
Specification
IP1200-100
Trademark
HOODLAND
Origin
China
Production Capacity
500000 PCS /Year
Product Description
| Voltage (V) | DC 12V/24V | |||||||||

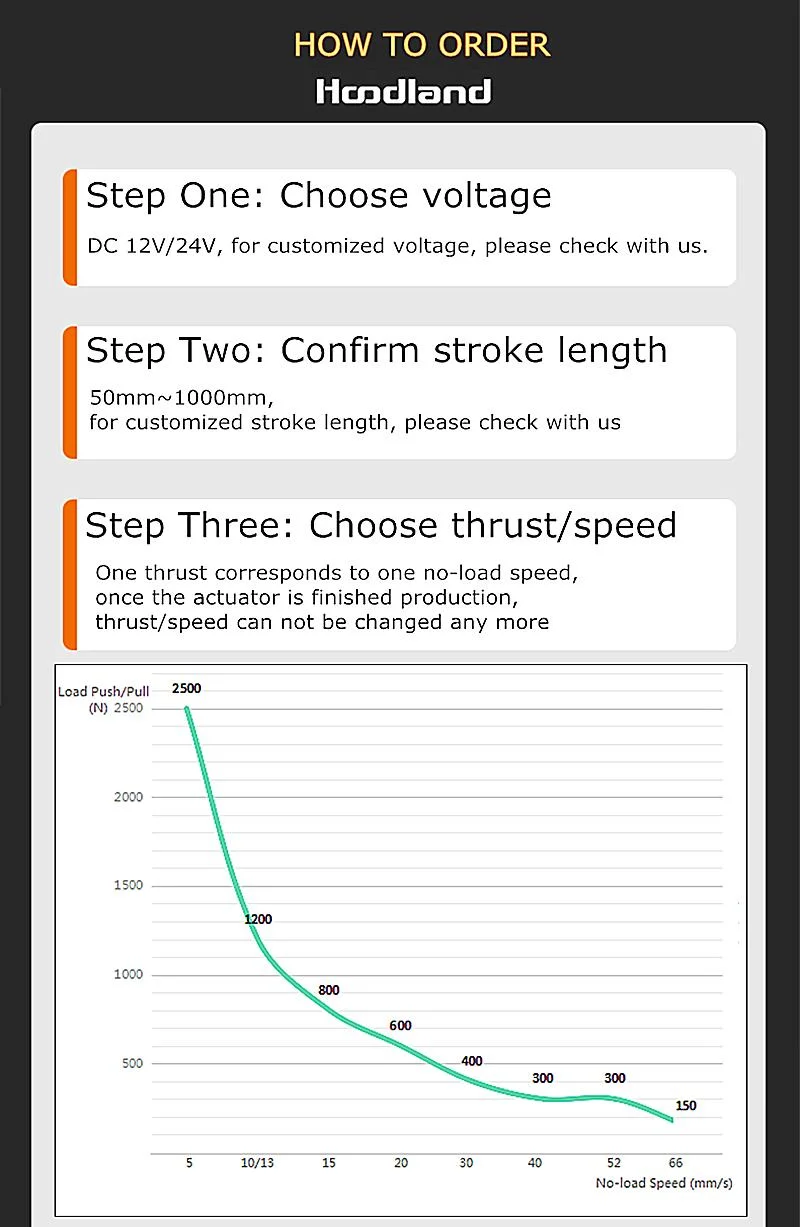

| No-load speed (mm/s) | 5 | 10 | 13 | 15 | 20 | 30 | 40 | 52 | 66 | 88 |
| Load push capacity (N) | 2500 | 1200 | 1200 | 800 | 600 | 400 | 300 | 300 | 150 | 100 |
| Load pull capacity (N) | 2500 | 1200 | 1200 | 800 | 600 | 400 | 300 | 300 | 150 | 100 |
| Statoc damping (N) | 2500 | 1200 | 1200 | 800 | 600 | 400 | 200 | 200 | 100 | 100 |
| Stroke length (mm) | 30-1000mm, or customized | |||||||||
| Operating temperature | o~40ºC | |||||||||
| Limit switch | Built-in | |||||||||
| IP Grade | IP54 | |||||||||
| Operating frequency | 10% max 2min continuous use | |||||||||
| Inner tube | Aluminum tube | |||||||||
| Color | Silver gray | |||||||||
| Lead screw type | T type | |||||||||
| Optional Features | Magnetic switch | |||||||||
| Hall sensor | ||||||||||
| Switch signal feedback | ||||||||||
