Product Description

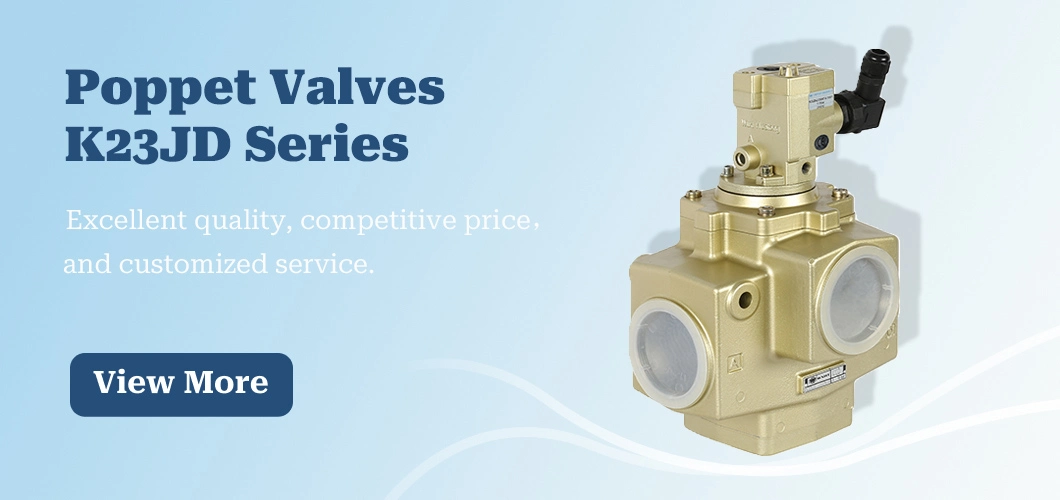

Huatong Pneumatic K23JD-15WHT two-position three-way cut-off electric control directional valve solenoid valve,
K23JD-15W large diameter 2 inch 2-1/2 inch pneumatic solenoid directional valve Poppet Valves Inline Mounted High Flow Rate.
Specification:
| type | K23J- 8W | K23J- 10W | K23J- 15W | K23J- 20W | K23J- 25W | K23J- 32W | K23J- 40W | |
| Item | ||||||||
| Flow rate(m3/h) | 5 | 7 | 10 | 20 | 30 | 40 | 50 | |
| Effective sectional area(mm2) | 20 | 35 | 60 | 120 | 190 | 300 | 400 | |
| Leakage rate(cm3/min) | ≤50 | ≤100 | ≤200 | ≤300 | ||||
| Direction diverting time(sec) | ≤0.04 | ≤0.06 | ≤0.10 | ≤0.15 | ||||
| Switch-over frequency Hz | ≥10 | ≥8 | ≥4 | ≥3 | ||||
| Working pressure(MPa) | 0.2~0.8 | |||||||
| Voltage(V) | AC:380,220,110,36: DC:220,110,24 | |||||||
| Working temp. (ºC) | -5~50 | |||||||
Outlook & Dimension:
| Outlook & Dimension | |||||||||||||
Type | Dia | Port Size | A | B | C | D | E | F | G | H | M | L | O |
| G | |||||||||||||
| K23J-8W. K23J-8TW | Ø8 | G1/4 | 180 | 96 | 78 | 73 | 17 | 16.5 | Ø9 | 45 | 39 | 85 | G1/2 |
| K23J-10W. K23J-10TW | Ø10 | G3/8 | |||||||||||
| K23J-15W. K23J-15TW | Ø15 | G1/2 | |||||||||||
| K23J-20W. K23J-20TW | Ø20 | G3/4 | 195 | 113 | 89 | 82 | 24 | 21 | Ø9 | 52 | 38 | 105 | G1 |
| K23J-25W. K23J-25TW | Ø25 | G1 | |||||||||||
| K23J-32W. K23J-32TW | Ø32 | G1¼ | 268 | 165 | 121 | 118 | 37 | 46 | Ø13 | 75 | 46 | 170 | G1½ |
| K23J-40W. K23J-40TW | Ø40 | G1½ | |||||||||||
Huatong Pneumatic produces high-quality pneumatic and hydraulic cylinders as well as pneumatic valves, complete pneumatic systems, pneumatic / electrical stainless steel cabinets in all sizes and various custom-made accessories and spare parts according to our customer needs. We have satisfied customers for our custom-made pneumatics in China, USA, Germany, Italy, Holland, Australia and various other countries.
Q1: Are you a manufacturer or trading company?
A: We are an integrated industrial and trade enterprises. We have our own factory and marketing department.
Q2: How do you ensure your product and service quality?
A: Our processes strictly adhere to ISO 9001 procedures. Every product will be strictly tested before packing and shipping.
Q3: How can you customize cylinders?
A: Our engineer will design with your drawing or requirements, and send our drawing for you to check. Then, we will arrange production.
Q4: How can I make payment?
A: We accept T/T, L/C, Western Union.
Q5: What's your minimum order quantity?
A: All MOQS vary, depending on the products. Please feel free to check with us for specific items.
Q6: What about your delivery time?
A: It depends, but usually takes about 1-6 weeks.
Q7. What about shipping?
A: We suggest small batch by air/express and bulk by sea.
Q8. Do you have OEM/ODM service?
A:Yes. We OEM and ODM for some famous brand.
Q9. What's your policy if we want to distribute your products in local market?
A: Thanks for your interest and support. We would like to offer some Preferential policies, like discount in price, prepare stock and so on. Welcome to our factory and have a face-to-face talk.
Q10: What about your after-sales service?
A: We have a professional after-sales service team. Your feedback will be quickly responded and solved.
