Basic Info.
Model NO.
VS-075DA
Structure
Floating Ball Valve
Type
Floating Ball Valve
Temperature
Normal Temperature
Standard
ISO5211
Design Code
ASME B16.34
Control Fluid
Air, Boiler Feedwater, Cargo Oil, Condensate, Corr
Material Seat
PTFE R-PTFE Peek
Material Body
Stainless Steel, 316 304
Transport Package
Plywood Case Package
Specification
1 inch-12 inch
Trademark
VESON or Cusomer"s
Origin
China
HS Code
84123900
Production Capacity
50000PC / Y
Product Description
Veson valve ltd. is a professional manufacturer & wholesale of VESON series pneumatic actuator, electric actuator, accessories for pneumatic actuator (limit switchbox, solenoid valve, positioner, air filter regulator, manual override), pneumatic actuated ball valve/ butterfly valve, manual operated ball valve/ butterfly valve and control valve etc. At the same time, the company is certified by ISO9001: 2000 quality management system. We posses the solid technology support and many experts, in which 2 senior engineers, 6 engineers, account for 34% of the staff.

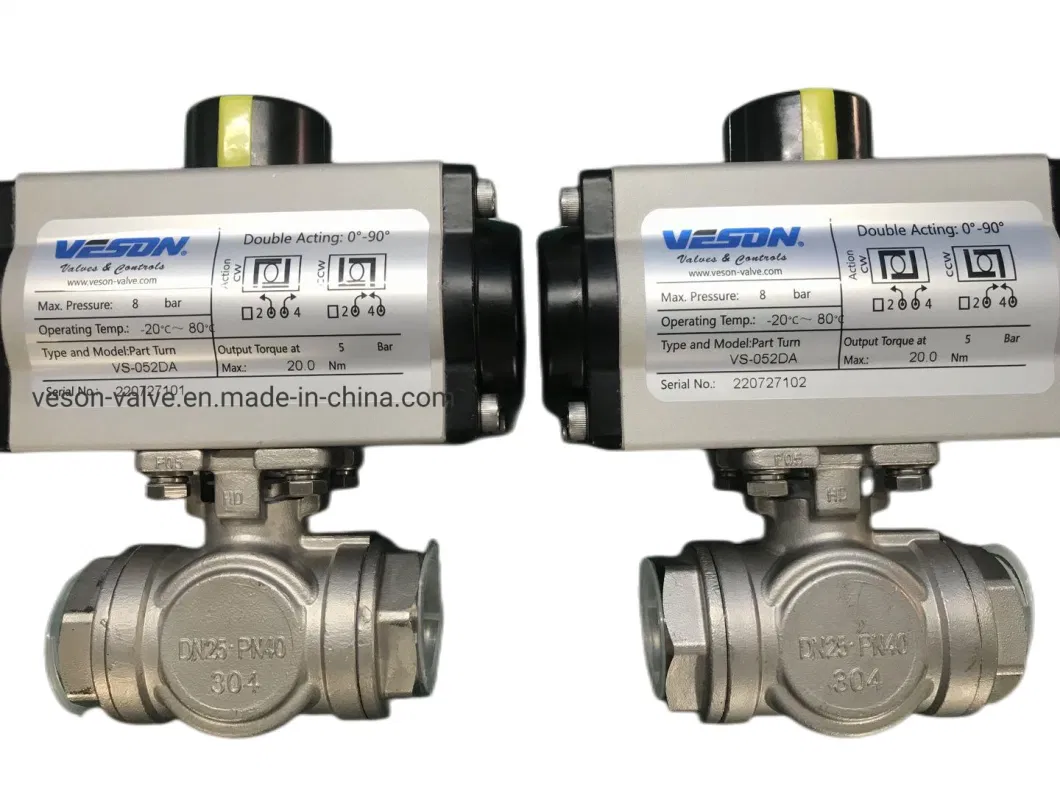

ACTUATED STAINLESS STEEL BALL VALVE (3 PIECE DESIGN) THREADED ENDS - SIZES UP TO 4"
Valve Features:
- Full Port 3-Piece Stainless Steel Ball Valves
- 1/4" through 4" NPT
- Direct Mount for Low-Profile,
- Cost-Efficient Operations
- Electric and Pneumatic Actuators
- NPT, socket weld or butt weld end
- Full port stainless steel Ball Valves 1/4" through 4"
- NPT, socket or butt weld ends
- RTFE seats/TFE seals
- Swing out design for easy maintenance
- ISO mounting pad
ACTUATOR FEATURES:
Pneumatic Actuators:
- Rack and pinion Actuator design
- Spring return or double acting
- Open and closed adjustment stops
- True NAMUR accessory mounting
- Visual indicator
