Basic Info.
Model NO.
UD300- Linear Actuators
Max Speed at Full Load
4-45mm/S
Duty Cycle
25%
Noise
Less Than 50
Operational Temperature Range
-40ºC-+70ºC
Stroke
20-1000mm
Transport Package
8 PCS Into One Carton
Trademark
UPLIFTEC
Origin
Jiangsu, China
HS Code
9403100000
Production Capacity
100000/Year
Product Description

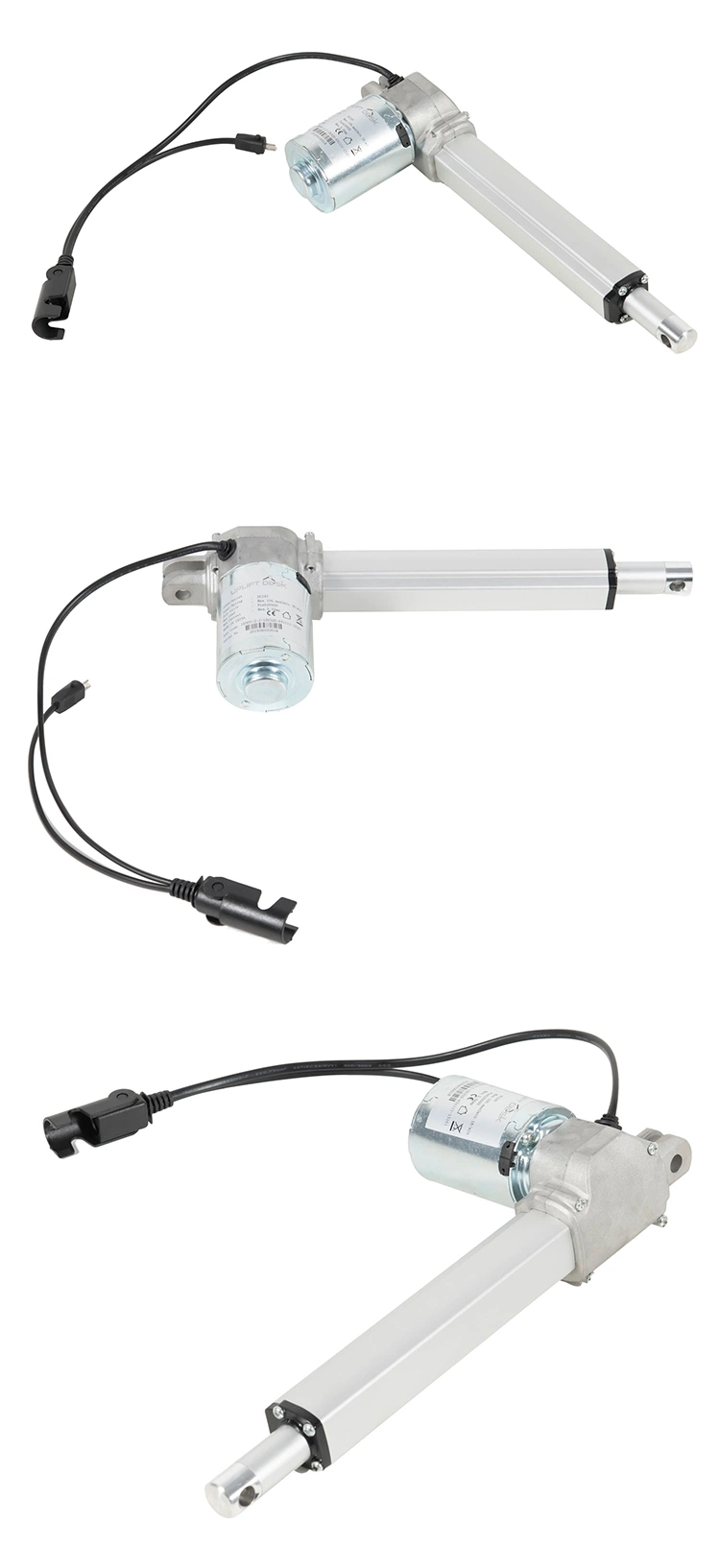

UD300 is a compact linear actuator design for electric sofa,
smart recliner, electric bed, etc. It is very quiet and very
suitable for applications where space is limited. Its max. load
could be 3 0 00N and Hall sensors for position feedback are
available.

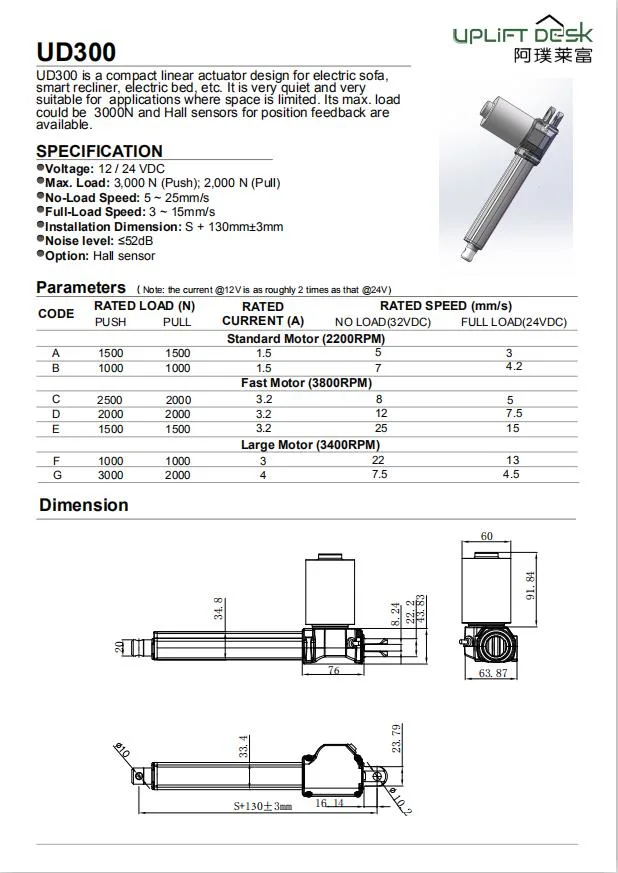

SPECIFICATION
Voltage: 12 / 24 VDC
Max. Load: 3, 0 00 N (Push); 2,000 N (Pull)
No-Load Speed: 5 ~ 25 mm/s
Full-Load Speed: 3 ~ 15 mm/s
Installation Dimension: S + 1 3 0mm±3mm
Noise level: ≤52dB
Option: Hall sensor
| Voltage | 12 / 24 VDC |
| Max. Load | 3,000 N (Push); 2,000 N (Pull) |
| No-Load Speed | 5 ~ 25mm/s |
| Full-Load Speed | 3 ~ 15mm/s |
| Installation Dimension | S + 130mm±3mm |
| Noise level | ≤52dB |
| Option | Hall sensor |
Product Application
Company Profile
Packing and shipping
FAQ
A. How do I design my own ADJUSTABLE Desk?
Select one of our Adjustable Height Standing Desks and then customize it by selecting options via our Desk Designer. We have a mold workshop, so it will be easy for us to do tailor make the products for you.
B. Can I choose different colors for the frame and accessories?
Yes, you will be prompted to choose colors for your desk frame, tabletop, handset, and more.
C. How about the after-sales service? How will you deal with the product faulty?
We make sure all the products we ship out are 100% good quality. Just to avoid inconvenience for clients, we advise clients to buy some extra products in the first order as a backup stock, if anything happens, we can response and provide service quicker. A free replacement will be sent to the customer in the next order if we responsible for the problem.
D. What is the handset lock feature? How do I use it?
In order to add an extra layer of safety to our desks, we designed our newest control boxes with a lockout feature, so that
children or other users can't adjust the desk when the lock is activated. To lock the keypad, press the "S" and "UP" button for 5 seconds, until the LED switches to "LOC." To unlock it, press the "S" and "DOWN" button for 5 seconds.
E. How many motors are in your desk frames?
HOUDRY Desk frames are exclusively built with a 2-motor design on our 2-leg desks, with a motor housed in each leg. Many of our competitors' desks run off a single motor, which affects their lifting capacity and reliability. Following the same design, our 3-leg desks come with three motors, and our 4-leg desks come with four.
F. What are your desk feet made out of?
Our feet are crafted from recycled-and recyclable-steel, one of the strongest and most environmentally friendly metals to use in
office furniture construction.
G: Online services
If you have another question, pls feel free to contact us as below
